Compression spring D-353A Spring steel Ø 5 x 40 x 205 mm

Scaled prices - Compression spring D-353A

Quantity	Single price [EUR]
1	13.3600 EUR
2	10.6400 EUR
3	6.1500 EUR
7	4.0000 EUR
17	2.6100 EUR
37	2.2000 EUR
75	2.1400 EUR
125	2.1212 EUR
175	2.1185 EUR
250	2.0658 EUR
350	2.0208 EUR

Compression spring Buy

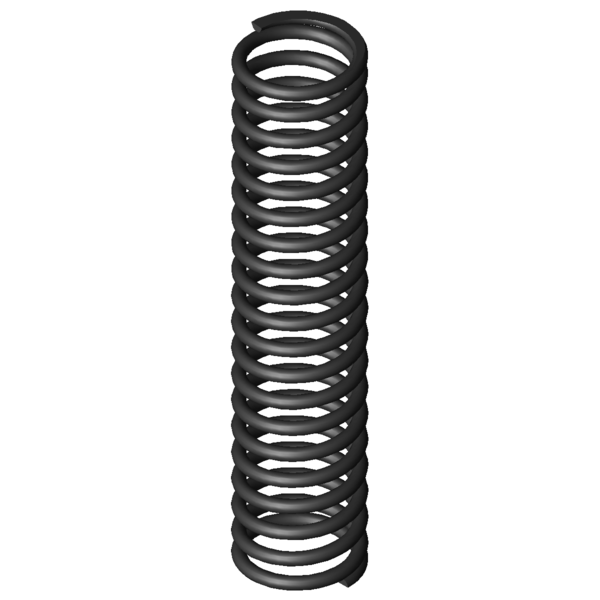

Product image Compression spring D-353A

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-353A

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	5	mm	Wire diameter
Di		mm	Inner coil diameter
D	40	mm	Mean coil diameter
De	45	mm	Outer coil diameter
Dd	34	mm	maximum diameter of mandrel
Dh	46.5	mm	minimum diameter of bush
L0	205	mm	unstressed spring length
Lk		mm	buckling length
Fn	453.716	N	maximum force in static use
Ln	120.63	mm	Minimum length in static use
sn	84.37	mm	Maximum spring deflection in static use
Fndyn	404.994	N	maximum force in dynamic use
Lndyn	129.69	mm	Minimum length in dynamic use
shdyn	75.31	mm	Maximum stroke in dynamic use
S	10.811	mm	pitch of spring
n	18.5	pc.	number of active coils
nt		pc.	total number of coils
R	5.378	N/mm	Spring rate
Weight	399.8288	g	weight of one spring
Fntol	34.98	N	(+/-) tolerance of maximum force in static use
Fndtol	34.24	N	(+/-) tolerance of maximum dynamic force
Detol	0.5	mm	(+/-) tolerances of outer coil diameter
L0tol	5.24	mm	(+/-) tolerance of unstressed spring length
Price group	AF	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-353A Spring steel Ø 5 x 40 x 205 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-353A Spring steel Ø 5 x 40 x 205 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-353A Spring steel Ø 5 x 40 x 205 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-353A Spring steel Ø 5 x 40 x 205 mm

force-path-calculation Compression spring D-353A

Inquiry formular Compression spring D-353A Spring steel Ø 5 x 40 x 205 mm

Inquiry formular Compression spring D-353A

Similar compression springs to Compression spring D-353A Spring steel Ø 5 x 40 x 205 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-353A	EN 10270-1	5	45	205	453.716	120.63	84.37	18.5	5.378	100.0 \| 100.0 \| 100.0 \| 100.0
VD-353A	1.4310	5	45	205	389.695	120.63	84.37	18.5	4.619	92.9 \| 100.0 \| 92.9 \| 85.9
VD-353	1.4310	5	45	205	822.021	84.75	120.25	12.5	6.836	80.4 \| 100.0 \| 62.7 \| 78.7

Number of similar metal springs: 3

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-234J	34	205	0.524	EN 10270-1	90.483	32.2	172.8	38.7 \| 71.9 \| 34.4 \| 9.7
D-263V-21	46	208	0.569	EN 10270-1	96.677	38.03	169.97	42.7 \| 82.1 \| 35.5 \| 10.6
D-263Y	42	240	0.68	EN 10270-1	135.926	40.02	199.98	41.7 \| 76.3 \| 36.1 \| 12.6
D-288X-22	48	203	1.065	EN 10270-1	170.824	42.66	160.34	49.7 \| 84.3 \| 45.1 \| 19.8
D-289C-03	48	176	1.398	EN 10270-1	184.054	44.32	131.68	53.2 \| 81.2 \| 52.3 \| 26.0
D-288Z-14	37	190	1.68	EN 10270-1	227.628	54.48	135.53	55.2 \| 78.3 \| 56.2 \| 31.2
D-313E-13	48	200	1.955	EN 10270-1	283.436	55.01	144.99	61.5 \| 87.8 \| 60.3 \| 36.4
D-291	43.2	190	1.964	EN 10270-1	289.258	42.7	147.31	60.4 \| 84.2 \| 60.5 \| 36.5
D-322A	44	235	2.203	EN 10270-1	296.264	100.5	134.5	64.4 \| 88.3 \| 64.0 \| 41.0
D-322	44	235	3.26	EN 10270-1	536.27	70.5	164.5	72.3 \| 88.3 \| 67.9 \| 60.6
D-339M	50	187	4.668	EN 10270-1	580.828	62.58	124.42	83.4 \| 90.4 \| 73.0 \| 86.8
D-364R-44	54	200	4.777	EN 10270-1	302.028	136.77	63.23	83.2 \| 90.1 \| 70.8 \| 88.8
D-321	44	160	4.794	EN 10270-1	524.956	50.5	109.5	85.4 \| 85.3 \| 81.7 \| 89.1
D-353A	45	205	5.378	EN 10270-1	453.716	120.63	84.37	100.0 \| 100.0 \| 100.0 \| 100.0
D-353	45	205	7.959	EN 10270-1	957.068	84.75	120.25	75.5 \| 100.0 \| 58.8 \| 67.6
D-364J-24	48	185	9.715	EN 10270-1	895.915	92.78	92.22	72.7 \| 91.6 \| 71.1 \| 55.4
D-364R-84	46	220	11.151	EN 10270-1	875.368	141.5	78.5	70.7 \| 91.4 \| 72.4 \| 48.2
D-359A-09	34	206	13.053	EN 10270-1	1056.725	125.05	80.95	67.4 \| 91.7 \| 69.4 \| 41.2
D-383A	46.3	195	13.554	EN 10270-1	639.051	147.85	47.15	64.6 \| 90.6 \| 63.4 \| 39.7
D-389N	50	228	19.848	EN 10270-1	1756.744	139.49	88.51	57.1 \| 83.8 \| 60.6 \| 27.1
D-383	46.3	195	20.06	EN 10270-1	1825.76	103.99	91.01	58.7 \| 90.6 \| 58.8 \| 26.8
D-364R-11	39	203	21.727	EN 10270-1	1835.921	118.5	84.5	59.2 \| 90.6 \| 62.3 \| 24.8
D-389A	38.3	225	21.767	EN 10270-1	1109.881	174.01	50.99	53.5 \| 85.2 \| 50.7 \| 24.7
D-364R-10	39	178	25.203	EN 10270-1	1839.832	105	73	54.5 \| 86.6 \| 55.6 \| 21.3
D-389N-05	46	236	25.772	EN 10270-1	2411.864	142.41	93.59	53.6 \| 85.4 \| 54.5 \| 20.9
D-389	38.3	225	26.473	EN 10270-1	2109.513	145.32	79.68	54.5 \| 85.2 \| 58.0 \| 20.3
D-389N-04	46	194	31.719	EN 10270-1	2399.97	118.34	75.66	53.1 \| 88.0 \| 54.3 \| 17.0
D-389A-11	39	203	34.811	EN 10270-1	1968.148	146.46	56.54	49.1 \| 86.8 \| 45.0 \| 15.4
D-413	48	190	52.16	EN 10270-1	3142.64	129.75	60.25	45.4 \| 83.0 \| 42.9 \| 10.3

Number of similar metal springs: 28

Customs tariff number: 73202081; Compression spring D-353A

Country of origin: DE, German; Compression spring D-353A

Product image - Compression springs D-353A

QR-Code: Compression spring D-353A

QR-Code - Compression springs - D-353A | https://www.federnshop.com/en/products/compression_springs/d-353a.html
