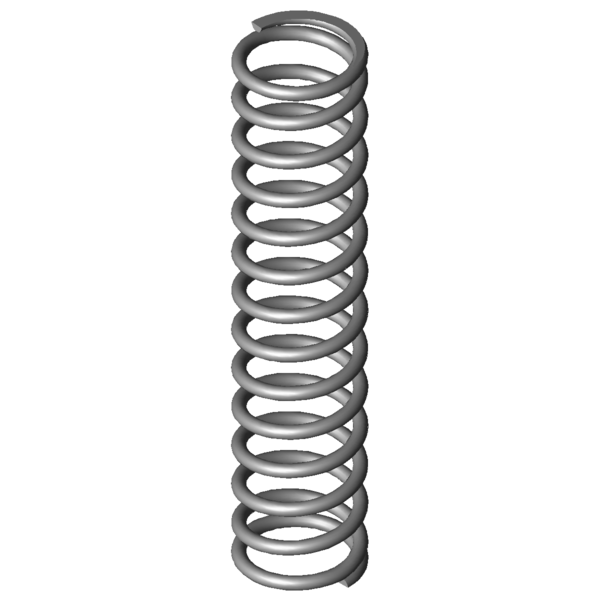

Home » Products » Compression springs » vd-353 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-353 Stainless steel Ø 5 x 40 x 205 mm Scaled prices - Compression spring VD-353 Quantity Single price [EUR] 1 13.8800 EUR 2 11.0500 EUR 3 6.5900 EUR 7 4.6100 EUR 17 2.9500 EUR 37 2.4600 EUR 75 2.3800 EUR 125 2.3800 EUR 175 2.3800 EUR 250 2.3800 EUR 350 2.3800 EUR Compression spring Buy Product image Compression spring VD-353 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-353 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 40 mm Mean coil diameter De 45 mm Outer coil diameter Dd 34 mm maximum diameter of mandrel Dh 46.5 mm minimum diameter of bush L0 205 mm unstressed spring length Lk mm buckling length Fn 822.021 N maximum force in static use Ln 84.75 mm Minimum length in static use sn 120.25 mm Maximum spring deflection in static use Fndyn 758.789 N maximum force in dynamic use Lndyn 94 mm Minimum length in dynamic use shdyn 19.97 mm Maximum stroke in dynamic use S 16 mm pitch of spring n 12.5 pc. number of active coils nt pc. total number of coils R 6.836 N/mm Spring rate Weight 282.8057 g weight of one spring Fntol 43.81 N (+/-) tolerance of maximum force in static use Fndtol 43.07 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 3.7 mm (+/-) tolerance of unstressed spring length Price group #AH - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-353 Stainless steel Ø 5 x 40 x 205 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-353 Stainless steel Ø 5 x 40 x 205 mm Metal spring characteristic download pdf file CAD data Compression spring VD-353 Stainless steel Ø 5 x 40 x 205 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-353 Stainless steel Ø 5 x 40 x 205 mm force-path-calculation Compression spring VD-353 Inquiry formular Compression spring VD-353 Stainless steel Ø 5 x 40 x 205 mm Inquiry formular Compression spring VD-353 Similar compression springs to Compression spring VD-353 Stainless steel Ø 5 x 40 x 205 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-353 1.4310 5 45 205 822.021 84.75 120.25 12.5 6.836 100.0 | 100.0 | 100.0 | 100.0 D-353 EN 10270-1 5 45 205 957.068 84.75 120.25 12.5 7.959 92.9 | 100.0 | 92.9 | 85.9 D-353A EN 10270-1 5 45 205 453.716 120.63 84.37 18.5 5.378 80.4 | 100.0 | 62.7 | 78.7 Number of similar metal springs: 3 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-234J 34 205 0.45 1.4310 77.716 32.2 172.8 39.3 | 71.9 | 39.5 | 6.6 VD-263V-21 46 208 0.489 1.4310 83.036 38.03 169.97 43.2 | 82.1 | 40.4 | 7.1 VD-263Y 42 240 0.584 1.4310 116.746 40.02 199.98 40.7 | 76.3 | 37.2 | 8.5 VD-288X-22 48 203 0.915 1.4310 146.72 42.66 160.34 48.0 | 84.3 | 46.4 | 13.4 VD-289C-03 48 176 1.2 1.4310 158.083 44.32 131.68 51.3 | 81.2 | 55.3 | 17.6 VD-288Z-14 37 190 1.443 1.4310 195.509 54.48 135.53 51.9 | 78.3 | 56.3 | 21.1 VD-313E-13 48 200 1.679 1.4310 243.442 55.01 144.99 56.2 | 87.8 | 56.3 | 24.6 VD-291 43.2 190 1.687 1.4310 248.443 42.7 147.31 54.9 | 84.2 | 55.9 | 24.7 VD-322A 44 235 1.892 1.4310 254.459 100.5 134.5 58.7 | 88.3 | 60.2 | 27.7 VD-322 44 235 2.8 1.4310 460.6 70.5 164.5 64.6 | 88.3 | 64.6 | 41.0 VD-339M 50 187 4.01 1.4310 498.87 62.58 124.42 75.9 | 90.4 | 78.7 | 58.7 VD-364R-44 54 200 4.103 1.4310 259.411 136.77 63.23 64.0 | 90.1 | 42.1 | 60.0 VD-321 44 160 4.118 1.4310 450.882 50.5 109.5 72.8 | 85.3 | 73.0 | 60.2 VD-353A 45 205 4.619 1.4310 389.695 120.63 84.37 75.5 | 100.0 | 58.8 | 67.6 VD-353 45 205 6.836 1.4310 822.021 84.75 120.25 100.0 | 100.0 | 100.0 | 100.0 VD-364J-24 48 185 8.344 1.4310 769.33 92.8 92.2 86.2 | 91.6 | 85.1 | 81.9 VD-364R-84 46 220 9.578 1.4310 751.85 141.5 78.5 80.4 | 91.4 | 78.4 | 71.4 VD-359A-09 34 206 11.212 1.4310 907.617 125.05 80.95 77.2 | 91.7 | 78.9 | 61.0 VD-383A 46.3 195 11.642 1.4310 548.878 147.85 47.15 67.4 | 90.6 | 53.0 | 58.7 VD-389N 50 228 17.048 1.4310 1508.86 139.49 88.51 62.6 | 83.8 | 64.0 | 40.1 VD-383 46.3 195 17.23 1.4310 1568.138 103.99 91.01 64.8 | 90.6 | 64.1 | 39.7 VD-364R-11 39 203 18.661 1.4310 1627.25 115.8 87.2 62.9 | 90.6 | 61.5 | 36.6 VD-389A 38.3 225 18.696 1.4310 953.272 174.01 50.99 62.0 | 85.2 | 64.3 | 36.6 VD-364R-10 39 178 21.647 1.4310 1627.847 102.8 75.2 58.2 | 86.6 | 56.5 | 31.6 VD-389N-05 46 236 22.135 1.4310 2071.54 142.41 93.59 58.3 | 85.4 | 58.8 | 30.9 VD-389 38.3 225 22.738 1.4310 1811.851 145.32 79.68 57.0 | 85.2 | 55.8 | 30.1 VD-389N-04 46 194 27.244 1.4310 2061.324 118.34 75.66 54.8 | 88.0 | 51.4 | 25.1 VD-389A-11 39 203 29.899 1.4310 1690.434 146.46 56.54 52.5 | 86.8 | 47.8 | 22.9 VD-413 48 190 44.8 1.4310 2699.2 129.75 60.25 100.0 | 100.0 | 100.0 | 100.0 VD-414AE 42 200 65.133 1.4310 3762.459 142.23 57.77 82.3 | 94.2 | 83.8 | 68.8 Number of similar metal springs: 29 Customs tariff number: 73202081; Compression spring VD-353 Country of origin: DE, German; Compression spring VD-353 Product image - Compression springs VD-353 QR-Code: Compression spring VD-353
