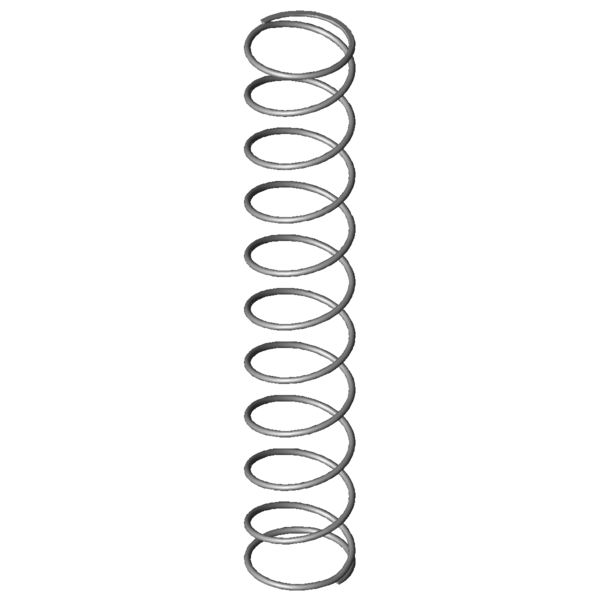

Home » Products » Compression springs » vd-263y Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-263Y Stainless steel Ø 2.5 x 39.5 x 240 mm Scaled prices - Compression spring VD-263Y Quantity Single price [EUR] 1 5.7800 EUR 2 4.0800 EUR 3 3.8900 EUR 7 3.0700 EUR 17 1.5900 EUR 37 1.2800 EUR 75 1.1200 EUR 125 0.8513 EUR 175 0.7951 EUR 250 0.7263 EUR 350 0.6128 EUR 450 0.5811 EUR Compression spring Buy Product image Compression spring VD-263Y Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-263Y Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.5 mm Wire diameter Di mm Inner coil diameter D 39.5 mm Mean coil diameter De 42 mm Outer coil diameter Dd 36.1 mm maximum diameter of mandrel Dh 44.4 mm minimum diameter of bush L0 240 mm unstressed spring length Lk 146.2 mm buckling length Fn 116.746 N maximum force in static use Ln 40.02 mm Minimum length in static use sn 199.98 mm Maximum spring deflection in static use Fndyn 113.453 N maximum force in dynamic use Lndyn 45.66 mm Minimum length in dynamic use shdyn 59.93 mm Maximum stroke in dynamic use S 25 mm pitch of spring n 9.5 pc. number of active coils nt pc. total number of coils R 0.584 N/mm Spring rate Weight 55.3726 g weight of one spring Fntol 8.24 N (+/-) tolerance of maximum force in static use Fndtol 8.18 N (+/-) tolerance of maximum dynamic force Detol 0.7 mm (+/-) tolerances of outer coil diameter L0tol 9.12 mm (+/-) tolerance of unstressed spring length Price group O - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-263Y Stainless steel Ø 2.5 x 39.5 x 240 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-263Y Stainless steel Ø 2.5 x 39.5 x 240 mm Metal spring characteristic download pdf file CAD data Compression spring VD-263Y Stainless steel Ø 2.5 x 39.5 x 240 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-263Y Stainless steel Ø 2.5 x 39.5 x 240 mm force-path-calculation Compression spring VD-263Y Inquiry formular Compression spring VD-263Y Stainless steel Ø 2.5 x 39.5 x 240 mm Inquiry formular Compression spring VD-263Y Similar compression springs to Compression spring VD-263Y Stainless steel Ø 2.5 x 39.5 x 240 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-263Y 1.4310 2.5 42 240 116.746 40.02 199.98 9.5 0.584 100.0 | 100.0 | 100.0 | 100.0 D-263Y EN 10270-1 2.5 42 240 135.926 40.02 199.98 9.5 0.68 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-207JJ 34 239 0.103 1.4310 20.871 36.83 202.17 52.1 | 80.2 | 58.4 | 17.7 VD-263G 38 228 0.47 1.4310 90.432 35.69 192.31 86.2 | 91.2 | 86.8 | 80.5 VD-263V-21 46 208 0.489 1.4310 83.036 38.03 169.97 84.8 | 92.7 | 78.1 | 83.7 VD-267A 34.5 245 0.564 1.4310 100.225 67.24 177.76 92.4 | 93.4 | 87.4 | 96.6 VD-263Y 42 240 0.584 1.4310 116.746 40.02 199.98 100.0 | 100.0 | 100.0 | 100.0 VD-292A 43.2 275 0.775 1.4310 146.929 85.4 189.61 83.3 | 87.5 | 87.1 | 75.3 VD-267 34.5 245 0.834 1.4310 159.633 53.7 191.3 82.6 | 93.4 | 84.4 | 70.0 VD-292 43.2 275 1.147 1.4310 246.837 59.78 215.23 69.5 | 87.5 | 70.1 | 50.9 VD-297B 35.2 230 1.6 1.4310 245.76 76.4 153.6 61.5 | 85.9 | 62.2 | 36.5 VD-291 43.2 190 1.687 1.4310 248.443 42.7 147.31 59.9 | 84.8 | 60.3 | 34.6 VD-318E 49 243 1.821 1.4310 301.076 77.65 165.35 58.4 | 82.3 | 60.7 | 32.1 VD-322A 44 235 1.892 1.4310 254.459 100.5 134.5 57.6 | 85.3 | 56.6 | 30.9 VD-313J 40 248 1.966 1.4310 335.916 77.14 170.86 59.0 | 87.2 | 60.1 | 29.7 VD-322 44 235 2.8 1.4310 460.6 70.5 164.5 53.3 | 85.3 | 53.8 | 20.8 VD-329A 36 250 3.038 1.4310 408.212 115.64 134.36 49.5 | 81.4 | 47.9 | 19.2 VD-329 36 250 3.695 1.4310 567.183 96.5 153.5 48.6 | 81.4 | 48.7 | 15.8 VD-353A 45 205 4.619 1.4310 389.695 120.63 84.37 41.7 | 76.3 | 36.1 | 12.6 VD-353 45 205 6.836 1.4310 822.021 84.75 120.25 40.7 | 76.3 | 37.2 | 8.5 VD-359A 37 230 7.417 1.4310 662.662 140.66 89.34 39.0 | 78.0 | 31.1 | 7.9 VD-359 37 230 9.021 1.4310 1015.493 117.43 112.57 39.4 | 78.0 | 33.9 | 6.5 Number of similar metal springs: 19 Customs tariff number: 73202081; Compression spring VD-263Y Country of origin: DE, German; Compression spring VD-263Y Product image - Compression springs VD-263Y QR-Code: Compression spring VD-263Y
