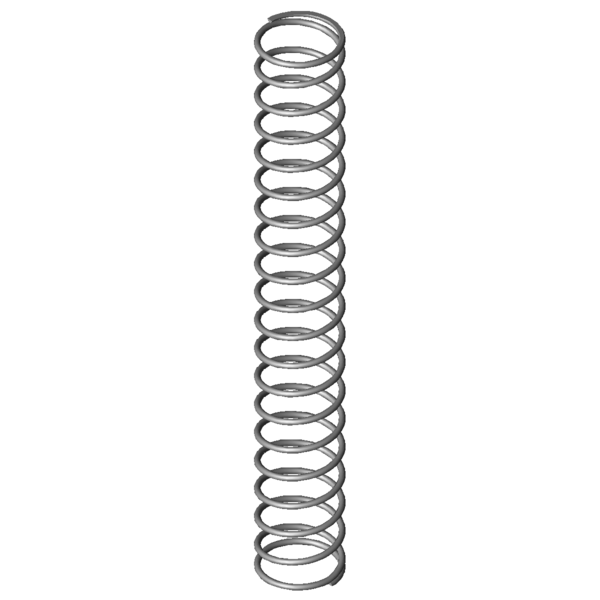

Home » Products » Compression springs » vd-267a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-267A Stainless steel Ø 2.5 x 32 x 245 mm Scaled prices - Compression spring VD-267A Quantity Single price [EUR] 1 5.7800 EUR 2 4.0800 EUR 3 3.8900 EUR 7 3.0700 EUR 17 1.5900 EUR 37 1.2800 EUR 75 1.1200 EUR 125 0.8513 EUR 175 0.7951 EUR 250 0.7263 EUR 350 0.6128 EUR 450 0.5811 EUR Compression spring Buy Product image Compression spring VD-267A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-267A Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.5 mm Wire diameter Di mm Inner coil diameter D 32 mm Mean coil diameter De 34.5 mm Outer coil diameter Dd 28.7 mm maximum diameter of mandrel Dh 35.3 mm minimum diameter of bush L0 245 mm unstressed spring length Lk 192 mm buckling length Fn 100.225 N maximum force in static use Ln 67.24 mm Minimum length in static use sn 177.76 mm Maximum spring deflection in static use Fndyn 95.715 N maximum force in dynamic use Lndyn 75.24 mm Minimum length in dynamic use shdyn 109.13 mm Maximum stroke in dynamic use S 13.108 mm pitch of spring n 18.5 pc. number of active coils nt pc. total number of coils R 0.564 N/mm Spring rate Weight 79.9658 g weight of one spring Fntol 7.75 N (+/-) tolerance of maximum force in static use Fndtol 7.67 N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 9.14 mm (+/-) tolerance of unstressed spring length Price group O - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-267A Stainless steel Ø 2.5 x 32 x 245 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-267A Stainless steel Ø 2.5 x 32 x 245 mm Metal spring characteristic download pdf file CAD data Compression spring VD-267A Stainless steel Ø 2.5 x 32 x 245 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-267A Stainless steel Ø 2.5 x 32 x 245 mm force-path-calculation Compression spring VD-267A Inquiry formular Compression spring VD-267A Stainless steel Ø 2.5 x 32 x 245 mm Inquiry formular Compression spring VD-267A Similar compression springs to Compression spring VD-267A Stainless steel Ø 2.5 x 32 x 245 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-267A 1.4310 2.5 34.5 245 100.225 67.24 177.76 18.5 0.564 100.0 | 100.0 | 100.0 | 100.0 D-267A EN 10270-1 2.5 34.5 245 116.691 67.24 177.76 18.5 0.656 92.9 | 100.0 | 92.9 | 85.9 D-267 EN 10270-1 2.5 34.5 245 182.652 57 188 12.5 0.972 77.6 | 100.0 | 74.7 | 58.0 Number of similar metal springs: 3 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-207JD 35.5 260 0.09 1.4310 20.009 38.08 221.93 49.9 | 83.8 | 50.0 | 16.0 VD-207JJ 34 239 0.103 1.4310 20.871 36.83 202.17 52.7 | 85.4 | 54.4 | 18.3 VD-234J 34 205 0.45 1.4310 77.716 32.2 172.8 84.9 | 87.4 | 87.4 | 79.8 VD-263G 38 228 0.47 1.4310 90.432 35.69 192.31 88.5 | 90.6 | 91.3 | 83.4 VD-267A 34.5 245 0.564 1.4310 100.225 67.24 177.76 100.0 | 100.0 | 100.0 | 100.0 VD-263Y 42 240 0.584 1.4310 116.746 40.02 199.98 92.4 | 93.4 | 87.4 | 96.6 VD-267 34.5 245 0.834 1.4310 159.633 53.7 191.3 81.8 | 100.0 | 77.9 | 67.6 VD-273A 27.5 240 0.972 1.4310 160.113 75.31 164.69 76.1 | 92.6 | 77.6 | 58.0 VD-288Z-15 37 279 0.975 1.4310 196.171 77.74 201.26 71.9 | 88.1 | 69.7 | 57.8 VD-273 27.5 240 1.182 1.4310 204.561 67 173 71.1 | 92.6 | 73.2 | 47.7 VD-298A 35.2 280 1.244 1.4310 228.48 96.4 183.6 67.8 | 87.9 | 70.3 | 45.3 VD-288Z-24 33 229 1.419 1.4310 217.981 75.38 153.63 65.6 | 90.8 | 66.2 | 39.7 VD-288Z-14 37 190 1.443 1.4310 195.509 54.48 135.53 62.5 | 84.7 | 63.8 | 39.1 VD-298 35.2 280 1.514 1.4310 302.097 80.4 199.6 62.1 | 87.9 | 61.1 | 37.3 VD-297A 35.2 190 1.514 1.4310 165.881 80.4 109.6 61.0 | 84.6 | 61.0 | 37.3 VD-297B 35.2 230 1.6 1.4310 245.76 76.4 153.6 62.9 | 90.0 | 63.6 | 35.2 VD-313J 40 248 1.966 1.4310 335.916 77.14 170.86 58.8 | 84.8 | 63.0 | 28.7 VD-297 35.2 190 2.24 1.4310 299.264 56.4 133.6 54.7 | 84.6 | 54.3 | 25.2 VD-329A 36 250 3.038 1.4310 408.212 115.64 134.36 51.4 | 85.4 | 50.1 | 18.6 VD-329 36 250 3.695 1.4310 567.183 96.5 153.5 50.9 | 85.4 | 52.0 | 15.3 Number of similar metal springs: 19 Customs tariff number: 73202081; Compression spring VD-267A Country of origin: DE, German; Compression spring VD-267A Product image - Compression springs VD-267A QR-Code: Compression spring VD-267A
