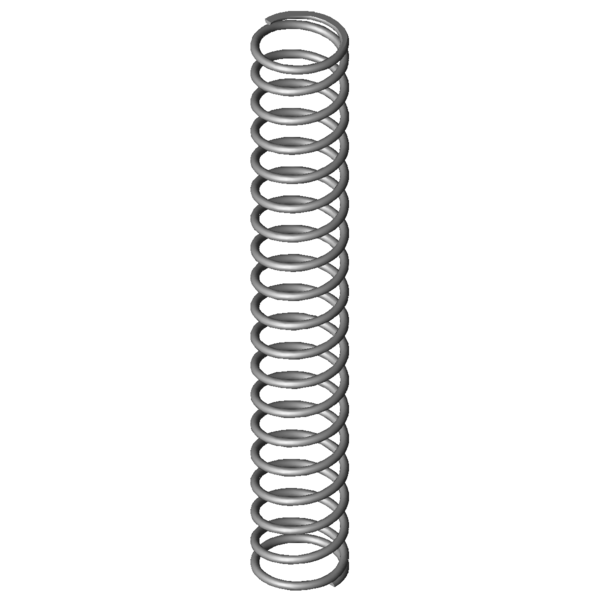

Home » Products » Compression springs » vd-297b Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-297B Stainless steel Ø 3.2 x 32 x 230 mm Scaled prices - Compression spring VD-297B Quantity Single price [EUR] 1 6.3100 EUR 2 4.4500 EUR 3 4.2400 EUR 7 3.4500 EUR 17 2.2200 EUR 37 1.7500 EUR 75 1.6000 EUR Compression spring Buy Product image Compression spring VD-297B Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-297B Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 3.2 mm Wire diameter Di mm Inner coil diameter D 32 mm Mean coil diameter De 35.2 mm Outer coil diameter Dd 27.8 mm maximum diameter of mandrel Dh 36.9 mm minimum diameter of bush L0 230 mm unstressed spring length Lk 172.1 mm buckling length Fn 245.76 N maximum force in static use Ln 76.4 mm Minimum length in static use sn 153.6 mm Maximum spring deflection in static use Fndyn 234.56 N maximum force in dynamic use Lndyn 83.4 mm Minimum length in dynamic use shdyn 54.3 mm Maximum stroke in dynamic use S 12.96 mm pitch of spring n 17.5 pc. number of active coils nt pc. total number of coils R 1.6 N/mm Spring rate Weight 124.6249 g weight of one spring Fntol 14.67 N (+/-) tolerance of maximum force in static use Fndtol 14.47 N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 5.57 mm (+/-) tolerance of unstressed spring length Price group S - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-297B Stainless steel Ø 3.2 x 32 x 230 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-297B Stainless steel Ø 3.2 x 32 x 230 mm Metal spring characteristic download pdf file CAD data Compression spring VD-297B Stainless steel Ø 3.2 x 32 x 230 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-297B Stainless steel Ø 3.2 x 32 x 230 mm force-path-calculation Compression spring VD-297B Inquiry formular Compression spring VD-297B Stainless steel Ø 3.2 x 32 x 230 mm Inquiry formular Compression spring VD-297B Similar compression springs to Compression spring VD-297B Stainless steel Ø 3.2 x 32 x 230 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-297B 1.4310 3.2 35.2 230 245.76 76.4 153.6 17.5 1.6 100.0 | 100.0 | 100.0 | 100.0 D-297B EN 10270-1 3.2 35.2 230 286.135 76.4 153.6 17.5 1.863 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-207JC 35.5 176 0.133 1.4310 19.776 26.85 149.15 45.0 | 74.2 | 52.6 | 8.3 VD-234J 34 205 0.45 1.4310 77.716 32.2 172.8 57.0 | 82.7 | 60.3 | 28.1 VD-263G 38 228 0.47 1.4310 90.432 35.69 192.31 58.2 | 86.8 | 58.3 | 29.4 VD-267A 34.5 245 0.564 1.4310 100.225 67.24 177.76 62.9 | 90.0 | 63.6 | 35.2 VD-263Y 42 240 0.584 1.4310 116.746 40.02 199.98 61.5 | 85.9 | 62.2 | 36.5 VD-267 34.5 245 0.834 1.4310 159.633 53.7 191.3 71.6 | 90.0 | 72.6 | 52.2 VD-273A 27.5 240 0.972 1.4310 160.113 75.31 164.69 74.7 | 84.0 | 79.2 | 60.8 VD-288Z-15 37 279 0.975 1.4310 196.171 77.74 201.26 76.5 | 90.4 | 78.1 | 60.9 VD-273 27.5 240 1.182 1.4310 204.561 67 173 81.3 | 84.0 | 86.0 | 73.9 VD-298A 35.2 280 1.244 1.4310 228.48 96.4 183.6 86.7 | 94.0 | 88.3 | 77.8 VD-288Z-24 33 229 1.419 1.4310 217.981 75.38 153.63 92.9 | 95.7 | 94.3 | 88.7 VD-288Z-14 37 190 1.443 1.4310 195.509 54.48 135.53 88.2 | 90.5 | 83.9 | 90.2 VD-297A 35.2 190 1.514 1.4310 165.881 80.4 109.6 86.1 | 94.2 | 69.4 | 94.6 VD-298 35.2 280 1.514 1.4310 302.097 80.4 199.6 89.3 | 94.0 | 79.2 | 94.6 VD-297B 35.2 230 1.6 1.4310 245.76 76.4 153.6 100.0 | 100.0 | 100.0 | 100.0 VD-313J 40 248 1.966 1.4310 335.916 77.14 170.86 84.3 | 89.9 | 81.5 | 81.4 VD-297 35.2 190 2.24 1.4310 299.264 56.4 133.6 83.4 | 94.2 | 84.6 | 71.4 VD-329A 36 250 3.038 1.4310 408.212 115.64 134.36 72.1 | 89.9 | 73.8 | 52.7 VD-329 36 250 3.695 1.4310 567.183 96.5 153.5 68.3 | 89.9 | 71.6 | 43.3 VD-359A 37 230 7.417 1.4310 662.662 140.66 89.34 51.9 | 86.4 | 47.6 | 21.6 VD-359 37 230 9.021 1.4310 1015.493 117.43 112.57 51.0 | 86.4 | 48.7 | 17.7 VD-359A-09 34 206 11.212 1.4310 907.617 125.05 80.95 45.8 | 83.4 | 39.9 | 14.3 VD-359A-08 34 186 12.457 1.4310 902.634 113.54 72.46 43.5 | 80.5 | 37.2 | 12.8 VD-364R-12 39 254 15.462 1.4310 1617.333 149.4 104.6 43.6 | 78.7 | 41.6 | 10.3 VD-364R-11 39 203 18.661 1.4310 1627.25 115.8 87.2 40.8 | 77.9 | 35.9 | 8.6 VD-389A 38.3 225 18.696 1.4310 953.272 174.01 50.99 39.4 | 80.2 | 29.5 | 8.6 VD-389 38.3 225 22.738 1.4310 1811.851 145.32 79.68 40.0 | 80.2 | 32.7 | 7.0 VD-389A-12 39 254 24.057 1.4310 1809.619 178.78 75.22 38.0 | 76.2 | 31.3 | 6.7 VD-389A-11 39 203 29.899 1.4310 1690.434 146.46 56.54 35.5 | 75.4 | 25.7 | 5.4 Number of similar metal springs: 28 Customs tariff number: 73202081; Compression spring VD-297B Country of origin: DE, German; Compression spring VD-297B Product image - Compression springs VD-297B QR-Code: Compression spring VD-297B
