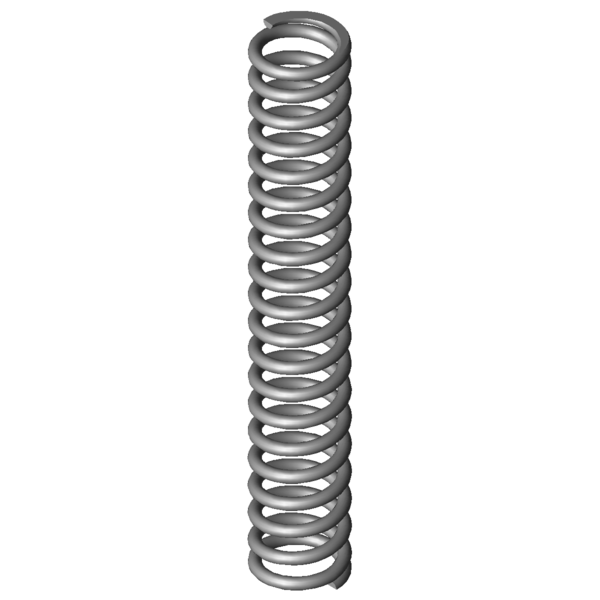

Home » Products » Compression springs » vd-359 Url teilen URL was copied to clipboard, successfully ! Overview Back to overview The Item has been added to your shopping cart. Compression spring VD-359 Stainless steel Ø 5 x 32 x 230 mm Scaled prices - Compression spring VD-359 Quantity Single price [EUR] 1 14.4000 EUR 2 11.4700 EUR 3 7.0900 EUR 7 5.2300 EUR 17 3.6600 EUR 37 3.0100 EUR 75 2.9700 EUR 125 2.9700 EUR 175 2.9700 EUR 250 2.9700 EUR 350 2.9700 EUR Compression spring Buy Product image Compression spring VD-359 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-359 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 - N prestressed spring force L1 - mm Prestressed spring length s1 - mm Prestressed spring deflection F2 - N Loaded spring force L2 - mm Loaded spring length s2 - mm Loaded spring deflection d 5 mm Wire diameter Di - mm Inner coil diameter D 32 mm Mean coil diameter De 37 mm Outer coil diameter Dd 26 mm maximum diameter of mandrel Dh 38.2 mm minimum diameter of bush L0 230 mm unstressed spring length Lk 172.1 mm buckling length Fn 1015.493 N maximum force in static use Ln 117.43 mm Minimum length in static use sn 112.57 mm Maximum spring deflection in static use Fndyn 903.026 N maximum force in dynamic use Lndyn 129.9 mm Minimum length in dynamic use shdyn 18.27 mm Maximum stroke in dynamic use S 12.162 mm pitch of spring n 18.5 pc. number of active coils nt - pc. total number of coils R 9.021 N/mm Spring rate Weight 319.863 g weight of one spring Fntol 58 N (+/-) tolerance of maximum force in static use Fndtol 57.6 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 3.91 mm (+/-) tolerance of unstressed spring length Price group #AK - price group F1tol - N (+/-) tolerance of prestressed spring force F2tol - N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-359 Stainless steel Ø 5 x 32 x 230 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-359 Stainless steel Ø 5 x 32 x 230 mm Metal spring characteristic download pdf file CAD data Compression spring VD-359 Stainless steel Ø 5 x 32 x 230 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-359 Stainless steel Ø 5 x 32 x 230 mm force-path-calculation Compression spring VD-359 Inquiry formular Compression spring VD-359 Stainless steel Ø 5 x 32 x 230 mm Inquiry formular Compression spring VD-359 Similar compression springs to Compression spring VD-359 Stainless steel Ø 5 x 32 x 230 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-359 1.4310 5 37 230 1015.493 117.43 112.57 18.5 9.021 100.0 | 100.0 | 100.0 | 100.0 D-359 EN 10270-1 5 37 230 1182.323 117.43 112.57 18.5 10.503 92.9 | 100.0 | 92.9 | 85.9 D-359A EN 10270-1 5 37 230 771.528 140.66 89.34 22.5 8.636 91.1 | 100.0 | 77.7 | 95.7 Number of similar metal springs: 3 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-288Z-15 37 279 0.975 1.4310 196.171 77.74 201.26 43.1 | 80.8 | 37.6 | 10.8 VD-298A 35.2 280 1.244 1.4310 228.48 96.4 183.6 45.4 | 80.4 | 41.9 | 13.8 VD-288Z-24 33 229 1.419 1.4310 217.981 75.38 153.63 48.7 | 82.9 | 47.4 | 15.7 VD-288Z-14 37 190 1.443 1.4310 195.509 54.48 135.53 49.3 | 80.9 | 51.2 | 16.0 VD-297A 35.2 190 1.514 1.4310 165.881 80.4 109.6 51.4 | 80.6 | 56.8 | 16.8 VD-298 35.2 280 1.514 1.4310 302.097 80.4 199.6 46.8 | 80.4 | 43.1 | 16.8 VD-297B 35.2 230 1.6 1.4310 245.76 76.4 153.6 51.0 | 86.4 | 48.7 | 17.7 VD-322A 44 235 1.892 1.4310 254.459 100.5 134.5 54.2 | 87.3 | 54.4 | 21.0 VD-313J 40 248 1.966 1.4310 335.916 77.14 170.86 52.3 | 85.7 | 49.5 | 21.8 VD-297 35.2 190 2.24 1.4310 299.264 56.4 133.6 54.1 | 80.6 | 56.9 | 24.8 VD-322 44 235 2.8 1.4310 460.6 70.5 164.5 58.4 | 87.3 | 56.9 | 31.0 VD-329A 36 250 3.038 1.4310 408.212 115.64 134.36 61.8 | 89.8 | 62.0 | 33.7 VD-329 36 250 3.695 1.4310 567.183 96.5 153.5 65.1 | 89.8 | 64.6 | 41.0 VD-359A 37 230 7.417 1.4310 662.662 140.66 89.34 84.8 | 100.0 | 72.3 | 82.2 VD-359 37 230 9.021 1.4310 1015.493 117.43 112.57 100.0 | 100.0 | 100.0 | 100.0 VD-359A-09 34 206 11.212 1.4310 907.617 125.05 80.95 85.0 | 93.8 | 80.6 | 80.5 VD-364N 38 177 15.048 1.4310 1019.648 109.24 67.76 76.1 | 88.4 | 79.9 | 59.9 VD-364R-12 39 254 15.462 1.4310 1617.333 149.4 104.6 75.6 | 90.5 | 77.9 | 58.3 VD-364R-11 39 203 18.661 1.4310 1627.25 115.8 87.2 69.4 | 89.8 | 69.9 | 48.3 VD-389A 38.3 225 18.696 1.4310 953.272 174.01 50.99 69.7 | 91.3 | 69.6 | 48.3 VD-389 38.3 225 22.738 1.4310 1811.851 145.32 79.68 64.8 | 91.3 | 63.4 | 39.7 VD-389A-12 39 254 24.057 1.4310 1809.619 178.78 75.22 61.9 | 86.7 | 61.5 | 37.5 VD-389A-11 39 203 29.899 1.4310 1690.434 146.46 56.54 57.1 | 85.9 | 55.1 | 30.2 VD-414AE 42 200 65.133 1.4310 3762.459 142.23 57.77 44.1 | 79.2 | 39.2 | 13.9 Number of similar metal springs: 23 Customs tariff number: 73202081; Compression spring VD-359 Country of origin: DE, German; Compression spring VD-359 Product image - Compression springs VD-359 QR-Code: Compression spring VD-359
