Compression spring VD-288Z-24 Stainless steel Ø 3 x 30 x 229 mm

Scaled prices - Compression spring VD-288Z-24

Quantity	Single price [EUR]
1	6.1900 EUR
2	4.3600 EUR
3	4.1600 EUR
7	3.3600 EUR
17	2.1300 EUR
37	1.6200 EUR
75	1.5200 EUR
125	1.2327 EUR
175	1.1268 EUR
250	1.0518 EUR
350	0.9700 EUR
450	0.9095 EUR

Compression spring Buy

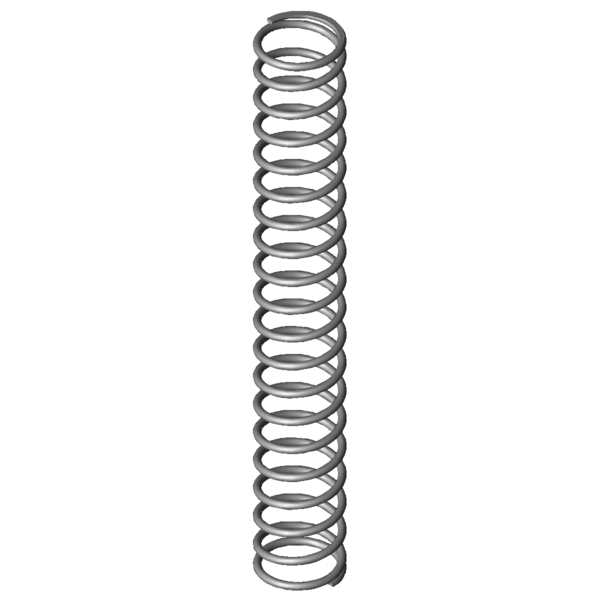

Product image Compression spring VD-288Z-24

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring VD-288Z-24

Formula symbols	Value	Unit	Description
Material	1.4310	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	3	mm	Wire diameter
Di		mm	Inner coil diameter
D	30	mm	Mean coil diameter
De	33	mm	Outer coil diameter
Dd	26.2	mm	maximum diameter of mandrel
Dh	34.2	mm	minimum diameter of bush
L0	229	mm	unstressed spring length
Lk	179.13	mm	buckling length
Fn	217.981	N	maximum force in static use
Ln	75.38	mm	Minimum length in static use
sn	153.63	mm	Maximum spring deflection in static use
Fndyn	208.127	N	maximum force in dynamic use
Lndyn	82.32	mm	Minimum length in dynamic use
shdyn	57.73	mm	Maximum stroke in dynamic use
S	12.216	mm	pitch of spring
n	18.5	pc.	number of active coils
nt		pc.	total number of coils
R	1.419	N/mm	Spring rate
Weight	107.9538	g	weight of one spring
Fntol	13.05	N	(+/-) tolerance of maximum force in static use
Fndtol	12.88	N	(+/-) tolerance of maximum dynamic force
Detol	0.5	mm	(+/-) tolerances of outer coil diameter
L0tol	5.6	mm	(+/-) tolerance of unstressed spring length
Price group	R	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring VD-288Z-24 Stainless steel Ø 3 x 30 x 229 mm

Datasheet download pdf file

Metal spring characteristic Compression spring VD-288Z-24 Stainless steel Ø 3 x 30 x 229 mm

Metal spring characteristic download pdf file

CAD data Compression spring VD-288Z-24 Stainless steel Ø 3 x 30 x 229 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring VD-288Z-24 Stainless steel Ø 3 x 30 x 229 mm

force-path-calculation Compression spring VD-288Z-24

Inquiry formular Compression spring VD-288Z-24 Stainless steel Ø 3 x 30 x 229 mm

Inquiry formular Compression spring VD-288Z-24

Similar compression springs to Compression spring VD-288Z-24 Stainless steel Ø 3 x 30 x 229 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
VD-288Z-24	1.4310	3	33	229	217.981	75.38	153.63	18.5	1.419	100.0 \| 100.0 \| 100.0 \| 100.0
D-288Z-24	EN 10270-1	3	33	229	253.793	75.38	153.63	18.5	1.652	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
VD-207JD	35.5	260	0.09	1.4310	20.009	38.08	221.93	40.9 \| 77.0 \| 39.2 \| 6.4
VD-207JJ	34	239	0.103	1.4310	20.871	36.83	202.17	43.7 \| 81.0 \| 42.8 \| 7.3
VD-207JP	26.5	224	0.153	1.4310	27.417	45.09	178.91	45.4 \| 76.0 \| 49.2 \| 10.8
VD-207N-01	28	206	0.231	1.4310	39.296	35.78	170.22	48.8 \| 76.0 \| 54.1 \| 16.3
VD-234J	34	205	0.45	1.4310	77.716	32.2	172.8	59.5 \| 84.4 \| 62.3 \| 31.7
VD-263G	38	228	0.47	1.4310	90.432	35.69	192.31	60.1 \| 86.6 \| 60.7 \| 33.1
VD-267A	34.5	245	0.564	1.4310	100.225	67.24	177.76	65.6 \| 90.8 \| 66.2 \| 39.7
VD-267	34.5	245	0.834	1.4310	159.633	53.7	191.3	75.5 \| 90.8 \| 76.8 \| 58.8
VD-273A	27.5	240	0.972	1.4310	160.113	75.31	164.69	79.7 \| 87.4 \| 83.4 \| 68.5
VD-273	27.5	240	1.182	1.4310	204.561	67	173	87.3 \| 87.4 \| 91.3 \| 83.3
VD-298A	35.2	280	1.244	1.4310	228.48	96.4	183.6	89.0 \| 89.8 \| 89.5 \| 87.7
VD-288Z-24	33	229	1.419	1.4310	217.981	75.38	153.63	100.0 \| 100.0 \| 100.0 \| 100.0
VD-288Z-14	37	190	1.443	1.4310	195.509	54.48	135.53	92.7 \| 90.7 \| 89.0 \| 98.4
VD-297A	35.2	190	1.514	1.4310	165.881	80.4	109.6	85.9 \| 90.2 \| 73.7 \| 93.7
VD-298	35.2	280	1.514	1.4310	302.097	80.4	199.6	86.0 \| 89.8 \| 74.6 \| 93.7
VD-297B	35.2	230	1.6	1.4310	245.76	76.4	153.6	92.9 \| 95.7 \| 94.3 \| 88.7
VD-288O	30	189	1.724	1.4310	223.32	59.48	129.52	87.4 \| 88.9 \| 91.0 \| 82.3
VD-313J	40	248	1.966	1.4310	335.916	77.14	170.86	78.5 \| 86.1 \| 77.4 \| 72.2
VD-297	35.2	190	2.24	1.4310	299.264	56.4	133.6	77.8 \| 90.2 \| 79.9 \| 63.3
VD-303A	28.2	200	2.61	1.4310	281.357	92.19	107.81	72.3 \| 88.8 \| 73.8 \| 54.4
VD-329A	36	250	3.038	1.4310	408.212	115.64	134.36	67.7 \| 86.1 \| 70.4 \| 46.7
VD-303	28.2	200	3.174	1.4310	390.601	76.94	123.06	67.2 \| 88.8 \| 68.0 \| 44.7
VD-329	36	250	3.695	1.4310	567.183	96.5	153.5	64.6 \| 86.1 \| 69.2 \| 38.4
VD-359A	37	230	7.417	1.4310	662.662	140.66	89.34	49.2 \| 82.9 \| 45.5 \| 19.1
VD-359	37	230	9.021	1.4310	1015.493	117.43	112.57	48.7 \| 82.9 \| 47.4 \| 15.7
VD-359A-09	34	206	11.212	1.4310	907.617	125.05	80.95	44.4 \| 82.3 \| 38.4 \| 12.7
VD-359A-08	34	186	12.457	1.4310	902.634	113.54	72.46	42.2 \| 79.4 \| 35.7 \| 11.4

Number of similar metal springs: 26

Customs tariff number: 73202081; Compression spring VD-288Z-24

Country of origin: DE, German; Compression spring VD-288Z-24
