Compression spring VD-288O Stainless steel Ø 2.8 x 27.2 x 189 mm

Scaled prices - Compression spring VD-288O

Quantity Single price [EUR]
1 6.4400 EUR
2 4.5400 EUR
3 4.3300 EUR
7 3.5700 EUR
17 2.3000 EUR
37 1.8300 EUR
75 1.7400 EUR

Compression spring Buy

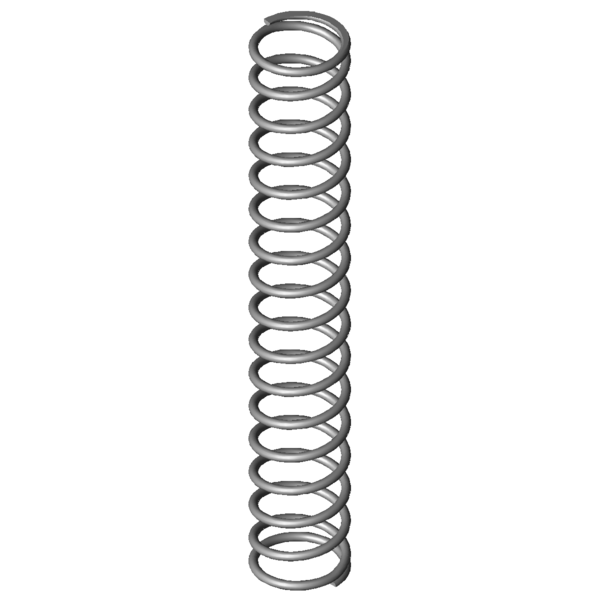

Product image Compression spring VD-288O
Product image Compression spring VD-288O
Quantity: Add to shopping cart

Technical Data - Compression spring VD-288O

Formula symbols Value Unit Description
Material 1.4310 - Type of material
Spring ends Closed and ground - Spring ends
F1 N prestressed spring force
L1 mm Prestressed spring length
s1 mm Prestressed spring deflection
F2 N Loaded spring force
L2 mm Loaded spring length
s2 mm Loaded spring deflection
d 2.8 mm Wire diameter
Di mm Inner coil diameter
D 27.2 mm Mean coil diameter
De 30 mm Outer coil diameter
Dd 23.6 mm maximum diameter of mandrel
Dh 31.3 mm minimum diameter of bush
L0 189 mm unstressed spring length
Lk 137.3 mm buckling length
Fn 223.32 N maximum force in static use
Ln 59.48 mm Minimum length in static use
sn 129.52 mm Maximum spring deflection in static use
Fndyn 214.291 N maximum force in dynamic use
Lndyn 64.72 mm Minimum length in dynamic use
shdyn 36.79 mm Maximum stroke in dynamic use
S 12.013 mm pitch of spring
n 15.5 pc. number of active coils
nt pc. total number of coils
R 1.724 N/mm Spring rate
Weight 72.7852 g weight of one spring
Fntol 12.48 N (+/-) tolerance of maximum force in static use
Fndtol 12.32 N (+/-) tolerance of maximum dynamic force
Detol 0.5 mm (+/-) tolerances of outer coil diameter
L0tol 4.27 mm (+/-) tolerance of unstressed spring length
Price group T - price group
F1tol N (+/-) tolerance of prestressed spring force
F2tol N (+/-) tolerance of loaded spring force
Technical drawing Compression spring
Technical drawing Compression spring

Datasheet Compression spring VD-288O Stainless steel Ø 2.8 x 27.2 x 189 mm

Datasheet download pdf file

Metal spring characteristic Compression spring VD-288O Stainless steel Ø 2.8 x 27.2 x 189 mm

Metal spring characteristic download pdf file

CAD data Compression spring VD-288O Stainless steel Ø 2.8 x 27.2 x 189 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring VD-288O Stainless steel Ø 2.8 x 27.2 x 189 mm

force-path-calculation Compression spring VD-288O

Inquiry formular Compression spring VD-288O Stainless steel Ø 2.8 x 27.2 x 189 mm

Inquiry formular Compression spring VD-288O

Similar compression springs to Compression spring VD-288O Stainless steel Ø 2.8 x 27.2 x 189 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness
VD-288O 1.4310 2.8 30 189 223.32 59.48 129.52 15.5 1.724 42.7 | 83.7 | 33.3 | 11.1
D-288O EN 10270-1 2.8 30 189 260.008 59.48 129.52 15.5 2.008 92.9 | 100.0 | 92.9 | 85.9
Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority
article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %
Overall | Geometrie | Load | Stiffness
VD-207N-01 28 206 0.231 1.4310 39.296 35.78 170.22 47.0 | 80.7 | 46.8 | 13.4
VD-207N 28 181 0.328 1.4310 50.807 26.13 154.87 51.4 | 82.1 | 53.2 | 19.0
VD-232H 30 181 0.431 1.4310 65.662 28.71 152.29 56.3 | 86.7 | 57.2 | 25.0
VD-234J 34 205 0.45 1.4310 77.716 32.2 172.8 55.0 | 84.0 | 54.9 | 26.1
VD-234O 30 182 0.472 1.4310 66.309 41.64 140.36 59.2 | 89.2 | 61.0 | 27.4
VD-234N-10 30 170 0.472 1.4310 60.64 41.64 128.36 59.2 | 87.1 | 63.1 | 27.4
VD-238A 27 195 0.484 1.4310 68.594 53.37 141.63 58.4 | 86.1 | 61.1 | 28.1
VD-239A-06 25 205.5 0.622 1.4310 95.448 52.04 153.46 60.6 | 82.2 | 63.6 | 36.1
VD-238 27 195 0.717 1.4310 107.878 44.5 150.5 65.0 | 86.1 | 67.2 | 41.6
VD-268E 31 163 1.094 1.4310 125.006 48.7 114.3 75.4 | 90.8 | 72.1 | 63.4
VD-272A 27.5 165 1.182 1.4310 120.83 62.81 102.19 74.8 | 89.4 | 66.5 | 68.6
VD-266 34.5 170 1.227 1.4310 159.653 39.9 130.1 37.8 | 77.1 | 28.4 | 7.9
VD-288Z-14 37 190 1.443 1.4310 195.509 54.48 135.53 88.8 | 91.3 | 91.6 | 83.7
VD-297A 35.2 190 1.514 1.4310 165.881 80.4 109.6 41.0 | 81.3 | 31.9 | 9.7
VD-288O 30 189 1.724 1.4310 223.32 59.48 129.52 42.7 | 83.7 | 33.3 | 11.1
VD-272 27.5 165 1.75 1.4310 203.875 48.5 116.5 40.9 | 77.8 | 33.6 | 11.2
VD-297 35.2 190 2.24 1.4310 299.264 56.4 133.6 44.8 | 81.3 | 38.6 | 14.4
VD-303A 28.2 200 2.61 1.4310 281.357 92.19 107.81 46.8 | 82.7 | 41.0 | 16.8
VD-288Z-45 27 170 2.771 1.4310 270.542 72.38 97.62 47.2 | 81.5 | 42.2 | 17.8
VD-303 28.2 200 3.174 1.4310 390.601 76.94 123.06 50.0 | 82.7 | 46.9 | 20.4
VD-334A 29 185 6.372 1.4310 463.381 112.27 72.73 65.5 | 91.3 | 64.3 | 41.0
VD-334 29 185 7.749 1.4310 707.222 93.74 91.26 70.1 | 91.3 | 69.3 | 49.8
VD-339R 32 154 11.131 1.4310 716.467 89.63 64.37 79.9 | 89.8 | 78.3 | 71.6
VD-359A-09 34 206 11.212 1.4310 907.617 125.05 80.95 45.9 | 78.7 | 43.6 | 15.4
VD-359A-08 34 186 12.457 1.4310 902.634 113.54 72.46 80.1 | 95.0 | 65.2 | 80.1
VD-364A 30 180 15.556 1.4310 653.819 137.97 42.03 100.0 | 100.0 | 100.0 | 100.0
VD-364 30 180 18.919 1.4310 1225.591 115.22 64.78 80.4 | 100.0 | 59.1 | 82.2
VD-363A 30 160 21.212 1.4310 1191.193 103.84 56.16 78.2 | 96.3 | 64.9 | 73.3
VD-364R-18 28 170 37.996 1.4310 1691.616 125.48 44.52 66.8 | 92.9 | 66.5 | 40.9
VD-389AA 30 150 83.002 1.4310 2612.669 118.52 31.48 51.8 | 86.8 | 50.0 | 18.7
Number of similar metal springs: 29

Customs tariff number: 73202081; Compression spring VD-288O

Country of origin: DE, German; Compression spring VD-288O
