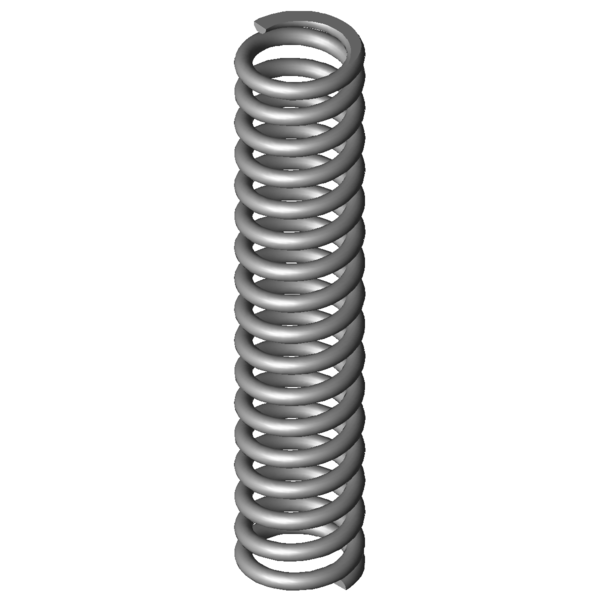

Home » Products » Compression springs » vd-339r Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-339R Stainless steel Ø 4.5 x 27.5 x 154 mm Scaled prices - Compression spring VD-339R Quantity Single price [EUR] 1 13.5300 EUR 2 10.7800 EUR 3 6.2300 EUR 7 4.2800 EUR 17 2.7100 EUR 37 2.3100 EUR 75 2.2200 EUR 125 2.2200 EUR 175 2.2200 EUR 250 2.2200 EUR 350 2.2200 EUR Compression spring Buy Product image Compression spring VD-339R Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-339R Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4.5 mm Wire diameter Di mm Inner coil diameter D 27.5 mm Mean coil diameter De 32 mm Outer coil diameter Dd 22.1 mm maximum diameter of mandrel Dh 33.2 mm minimum diameter of bush L0 154 mm unstressed spring length Lk 70.7 mm buckling length Fn 716.467 N maximum force in static use Ln 89.63 mm Minimum length in static use sn 64.37 mm Maximum spring deflection in static use Fndyn 655.941 N maximum force in dynamic use Lndyn 95.07 mm Minimum length in dynamic use shdyn 17.72 mm Maximum stroke in dynamic use S 9.645 mm pitch of spring n 15.5 pc. number of active coils nt pc. total number of coils R 11.131 N/mm Spring rate Weight 190.071 g weight of one spring Fntol 50.78 N (+/-) tolerance of maximum force in static use Fndtol 49.73 N (+/-) tolerance of maximum dynamic force Detol 0.4 mm (+/-) tolerances of outer coil diameter L0tol 2.95 mm (+/-) tolerance of unstressed spring length Price group #AG - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-339R Stainless steel Ø 4.5 x 27.5 x 154 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-339R Stainless steel Ø 4.5 x 27.5 x 154 mm Metal spring characteristic download pdf file CAD data Compression spring VD-339R Stainless steel Ø 4.5 x 27.5 x 154 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-339R Stainless steel Ø 4.5 x 27.5 x 154 mm force-path-calculation Compression spring VD-339R Inquiry formular Compression spring VD-339R Stainless steel Ø 4.5 x 27.5 x 154 mm Inquiry formular Compression spring VD-339R Similar compression springs to Compression spring VD-339R Stainless steel Ø 4.5 x 27.5 x 154 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-339R 1.4310 4.5 32 154 716.467 89.63 64.37 15.5 11.131 100.0 | 100.0 | 100.0 | 100.0 D-339R EN 10270-1 4.5 32 154 834.173 89.63 64.37 15.5 12.959 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-272A 27.5 165 1.182 1.4310 120.83 62.81 102.19 42.9 | 78.3 | 39.9 | 10.6 VD-266 34.5 170 1.227 1.4310 159.653 39.9 130.1 42.2 | 79.6 | 35.9 | 11.0 VD-288N-10 30 135 1.62 1.4310 116.688 62.96 72.04 49.5 | 81.2 | 52.8 | 14.6 VD-288K-13 33 150 1.627 1.4310 165.285 48.42 101.58 47.8 | 85.5 | 43.2 | 14.6 VD-272 27.5 165 1.75 1.4310 203.875 48.5 116.5 45.3 | 78.3 | 41.9 | 15.7 VD-288Z-23 33 157 2.1 1.4310 218.663 52.88 104.13 50.8 | 87.2 | 46.2 | 18.9 VD-298E 33 148 2.568 1.4310 227.182 59.54 88.46 54.5 | 88.1 | 52.2 | 23.1 VD-296 35.2 135 3.294 1.4310 311.624 40.4 94.6 56.2 | 83.2 | 55.8 | 29.6 VD-288Z-34 28 142 3.629 1.4310 329.654 51.16 90.84 57.7 | 82.1 | 58.4 | 32.6 VD-328A 36 170 3.695 1.4310 271.575 96.5 73.5 61.8 | 89.5 | 62.7 | 33.2 VD-313JA 34 145 4.185 1.4310 349.385 61.51 83.49 63.3 | 89.4 | 62.9 | 37.6 VD-327A 36 141 5.064 1.4310 346.435 72.58 68.42 68.8 | 89.8 | 71.2 | 45.5 VD-328 36 170 5.469 1.4310 558.906 67.8 102.2 69.7 | 89.5 | 70.5 | 49.1 VD-358A 37 160 9.021 1.4310 384.005 117.43 42.57 77.3 | 90.9 | 59.9 | 81.0 VD-339R 32 154 11.131 1.4310 716.467 89.63 64.37 100.0 | 100.0 | 100.0 | 100.0 VD-357A 37 144 12.362 1.4310 687.387 88.4 55.6 90.4 | 90.0 | 91.2 | 90.0 VD-358 37 160 13.351 1.4310 1033.535 82.59 77.41 83.5 | 90.9 | 76.2 | 83.4 VD-359A-07 34 166 14.014 1.4310 896.405 102.04 63.96 87.1 | 92.3 | 89.6 | 79.4 VD-359A-06 34 147 16.016 1.4310 904.413 90.53 56.47 82.1 | 93.2 | 83.5 | 69.5 VD-363A 30 160 21.212 1.4310 1191.193 103.84 56.16 73.2 | 93.3 | 73.7 | 52.5 VD-388 38.3 155 33.652 1.4310 1774.379 102.27 52.73 59.7 | 84.8 | 61.1 | 33.1 VD-389A-21 37.8 150 35.28 1.4310 1687.156 102.18 47.82 58.1 | 84.5 | 58.4 | 31.5 VD-364R-18 28 170 37.996 1.4310 1691.616 125.48 44.52 57.2 | 86.6 | 55.8 | 29.3 VD-364R-13 32 125 56.104 1.4310 1972.426 89.84 35.16 50.2 | 85.4 | 45.5 | 19.8 VD-389R 34 166 68.862 1.4310 2081.596 135.77 30.23 46.9 | 83.7 | 40.7 | 16.2 VD-389AA 30 150 83.002 1.4310 2612.669 118.52 31.48 46.1 | 86.8 | 38.2 | 13.4 Number of similar metal springs: 25 Customs tariff number: 73202081; Compression spring VD-339R Country of origin: DE, German; Compression spring VD-339R Product image - Compression springs VD-339R QR-Code: Compression spring VD-339R
