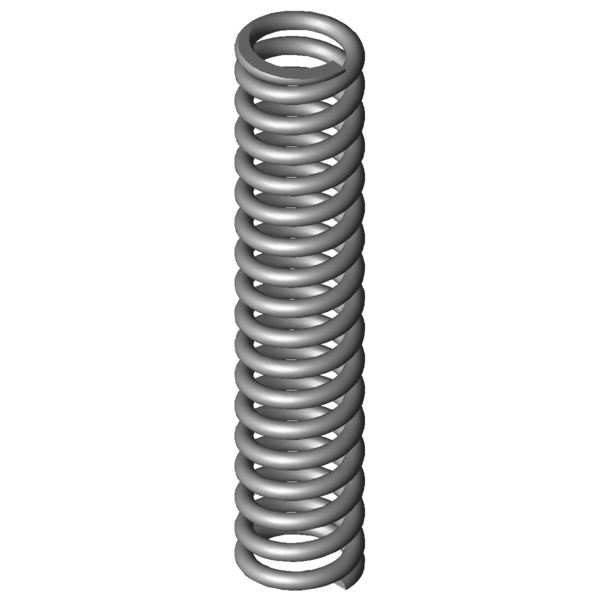

Home » Products » Compression springs » vd-359a-07 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-359A-07 Stainless steel Ø 5 x 29 x 166 mm Scaled prices - Compression spring VD-359A-07 Quantity Single price [EUR] 1 13.8800 EUR 2 11.0500 EUR 3 6.5900 EUR 7 4.6100 EUR 17 2.9500 EUR 37 2.4600 EUR 75 2.3800 EUR 125 2.3800 EUR 175 2.3800 EUR 250 2.3800 EUR 350 2.3800 EUR Compression spring Buy Product image Compression spring VD-359A-07 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-359A-07 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 29 mm Mean coil diameter De 34 mm Outer coil diameter Dd 23.1 mm maximum diameter of mandrel Dh 35.2 mm minimum diameter of bush L0 166 mm unstressed spring length Lk 88.05 mm buckling length Fn 896.405 N maximum force in static use Ln 102.04 mm Minimum length in static use sn 63.96 mm Maximum spring deflection in static use Fndyn 811.994 N maximum force in dynamic use Lndyn 108.06 mm Minimum length in dynamic use shdyn 19.29 mm Maximum stroke in dynamic use S 10.063 mm pitch of spring n 16 pc. number of active coils nt pc. total number of coils R 14.014 N/mm Spring rate Weight 254.5252 g weight of one spring Fntol 66.9 N (+/-) tolerance of maximum force in static use Fndtol 65.48 N (+/-) tolerance of maximum dynamic force Detol 0.4 mm (+/-) tolerances of outer coil diameter L0tol 3.11 mm (+/-) tolerance of unstressed spring length Price group #AH - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-359A-07 Stainless steel Ø 5 x 29 x 166 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-359A-07 Stainless steel Ø 5 x 29 x 166 mm Metal spring characteristic download pdf file CAD data Compression spring VD-359A-07 Stainless steel Ø 5 x 29 x 166 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-359A-07 Stainless steel Ø 5 x 29 x 166 mm force-path-calculation Compression spring VD-359A-07 Inquiry formular Compression spring VD-359A-07 Stainless steel Ø 5 x 29 x 166 mm Inquiry formular Compression spring VD-359A-07 Similar compression springs to Compression spring VD-359A-07 Stainless steel Ø 5 x 29 x 166 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-359A-07 1.4310 5 34 166 896.405 102.04 63.96 16 14.014 100.0 | 100.0 | 100.0 | 100.0 D-359A-07 EN 10270-1 5 34 166 1043.672 102.04 63.96 16 16.317 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-266 34.5 170 1.227 1.4310 159.653 39.9 130.1 41.4 | 82.1 | 33.5 | 8.8 VD-297A 35.2 190 1.514 1.4310 165.881 80.4 109.6 44.0 | 82.7 | 38.4 | 10.8 VD-288K-13 33 150 1.627 1.4310 165.285 48.42 101.58 44.5 | 81.1 | 40.7 | 11.6 VD-272 27.5 165 1.75 1.4310 203.875 48.5 116.5 42.7 | 76.8 | 38.8 | 12.5 VD-288Z-23 33 157 2.1 1.4310 218.663 52.88 104.13 47.3 | 83.9 | 42.9 | 15.0 VD-297 35.2 190 2.24 1.4310 299.264 56.4 133.6 46.4 | 82.7 | 40.6 | 16.0 VD-298E 33 148 2.568 1.4310 227.182 59.54 88.46 50.2 | 83.4 | 48.8 | 18.3 VD-328A 36 170 3.695 1.4310 271.575 96.5 73.5 58.6 | 90.7 | 58.7 | 26.4 VD-313JA 34 145 4.185 1.4310 349.385 61.51 83.49 58.0 | 86.4 | 57.8 | 29.9 VD-328 36 170 5.469 1.4310 558.906 67.8 102.2 64.1 | 90.7 | 62.5 | 39.0 VD-358A 37 160 9.021 1.4310 384.005 117.43 42.57 71.7 | 96.1 | 54.7 | 64.4 VD-339R 32 154 11.131 1.4310 716.467 89.63 64.37 87.1 | 92.3 | 89.6 | 79.4 VD-359A-08 34 186 12.457 1.4310 902.634 113.54 72.46 93.0 | 96.4 | 93.8 | 88.9 VD-358 37 160 13.351 1.4310 1033.535 82.59 77.41 92.0 | 96.1 | 84.7 | 95.3 VD-359A-07 34 166 14.014 1.4310 896.405 102.04 63.96 100.0 | 100.0 | 100.0 | 100.0 VD-364N 38 177 15.048 1.4310 1019.648 109.24 67.76 91.9 | 91.4 | 91.2 | 93.1 VD-364A 30 180 15.556 1.4310 653.819 137.97 42.03 84.3 | 93.5 | 69.3 | 90.1 VD-359A-06 34 147 16.016 1.4310 904.413 90.53 56.47 92.5 | 96.2 | 93.7 | 87.5 VD-364 30 180 18.919 1.4310 1225.591 115.22 64.78 84.5 | 93.5 | 85.9 | 74.1 VD-363A 30 160 21.212 1.4310 1191.193 103.84 56.16 80.8 | 94.9 | 81.5 | 66.1 VD-388 38.3 155 33.652 1.4310 1774.379 102.27 52.73 65.1 | 87.2 | 66.5 | 41.6 VD-389A-21 37.8 150 35.28 1.4310 1687.156 102.18 47.82 63.4 | 86.6 | 63.9 | 39.7 VD-364R-18 28 170 37.996 1.4310 1691.616 125.48 44.52 62.8 | 90.3 | 61.3 | 36.9 VD-389R 34 166 68.862 1.4310 2081.596 135.77 30.23 52.0 | 90.5 | 45.2 | 20.4 Number of similar metal springs: 23 Customs tariff number: 73202081; Compression spring VD-359A-07 Country of origin: DE, German; Compression spring VD-359A-07 Product image - Compression springs VD-359A-07 QR-Code: Compression spring VD-359A-07
