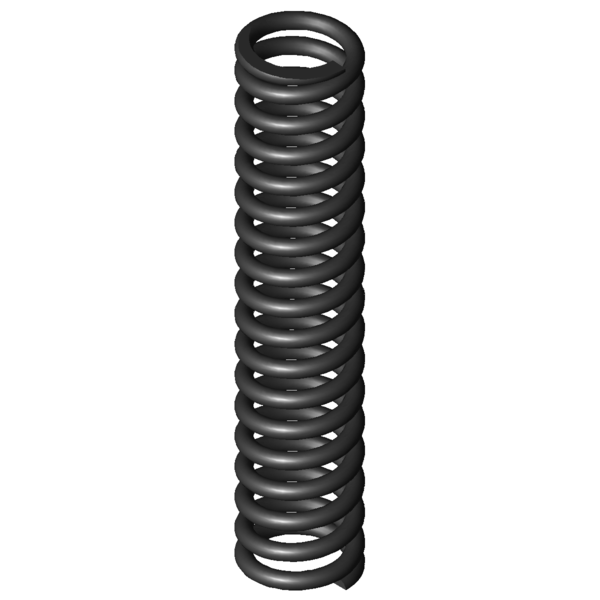

Home » Products » Compression springs » d-359a-07 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-359A-07 Spring steel Ø 5 x 29 x 166 mm Scaled prices - Compression spring D-359A-07 Quantity Single price [EUR] 1 13.1800 EUR 2 10.5000 EUR 3 6.0600 EUR 7 3.9100 EUR 17 2.5400 EUR 37 2.1200 EUR 75 2.0700 EUR 125 2.0408 EUR 175 2.0281 EUR 250 1.9902 EUR 350 1.9446 EUR Compression spring Buy Product image Compression spring D-359A-07 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-359A-07 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 29 mm Mean coil diameter De 34 mm Outer coil diameter Dd 23.1 mm maximum diameter of mandrel Dh 35.2 mm minimum diameter of bush L0 166 mm unstressed spring length Lk 88.05 mm buckling length Fn 1043.672 N maximum force in static use Ln 102.04 mm Minimum length in static use sn 63.96 mm Maximum spring deflection in static use Fndyn 945.393 N maximum force in dynamic use Lndyn 108.06 mm Minimum length in dynamic use shdyn 30.46 mm Maximum stroke in dynamic use S 10.063 mm pitch of spring n 16 pc. number of active coils nt pc. total number of coils R 16.317 N/mm Spring rate Weight 254.5252 g weight of one spring Fntol 66.9 N (+/-) tolerance of maximum force in static use Fndtol 65.48 N (+/-) tolerance of maximum dynamic force Detol 0.4 mm (+/-) tolerances of outer coil diameter L0tol 3.11 mm (+/-) tolerance of unstressed spring length Price group AE - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-359A-07 Spring steel Ø 5 x 29 x 166 mm Datasheet download pdf file Metal spring characteristic Compression spring D-359A-07 Spring steel Ø 5 x 29 x 166 mm Metal spring characteristic download pdf file CAD data Compression spring D-359A-07 Spring steel Ø 5 x 29 x 166 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-359A-07 Spring steel Ø 5 x 29 x 166 mm force-path-calculation Compression spring D-359A-07 Inquiry formular Compression spring D-359A-07 Spring steel Ø 5 x 29 x 166 mm Inquiry formular Compression spring D-359A-07 Similar compression springs to Compression spring D-359A-07 Spring steel Ø 5 x 29 x 166 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-359A-07 EN 10270-1 5 34 166 1043.672 102.04 63.96 16 16.317 100.0 | 100.0 | 100.0 | 100.0 VD-359A-07 1.4310 5 34 166 896.405 102.04 63.96 16 14.014 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-266 34.5 170 1.429 EN 10270-1 182.881 42 128 41.5 | 82.1 | 33.7 | 8.8 D-297A 35.2 190 1.762 EN 10270-1 193.133 80.4 109.6 44.0 | 82.7 | 38.4 | 10.8 D-288K-13 33 150 1.895 EN 10270-1 192.439 48.42 101.58 44.5 | 81.1 | 40.7 | 11.6 D-272 27.5 165 2.038 EN 10270-1 234.72 49.8 115.2 42.8 | 76.8 | 39.0 | 12.5 D-288Z-23 33 157 2.445 EN 10270-1 254.586 52.88 104.13 47.3 | 83.9 | 42.9 | 15.0 D-297 35.2 190 2.608 EN 10270-1 348.429 56.4 133.6 46.4 | 82.7 | 40.6 | 16.0 D-298E 33 148 2.99 EN 10270-1 264.505 59.54 88.46 50.2 | 83.4 | 48.8 | 18.3 D-328A 36 170 4.302 EN 10270-1 316.191 96.5 73.5 58.6 | 90.7 | 58.7 | 26.4 D-313JA 34 145 4.872 EN 10270-1 406.784 61.51 83.49 58.0 | 86.4 | 57.8 | 29.9 D-328 36 170 6.367 EN 10270-1 650.727 67.8 102.2 64.1 | 90.7 | 62.5 | 39.0 D-358A 37 160 10.503 EN 10270-1 447.092 117.43 42.57 71.7 | 96.1 | 54.7 | 64.4 D-339R 32 154 12.959 EN 10270-1 834.173 89.63 64.37 87.1 | 92.3 | 89.6 | 79.4 D-359A-08 34 186 14.504 EN 10270-1 1050.923 113.54 72.46 93.0 | 96.4 | 93.8 | 88.9 D-358 37 160 15.545 EN 10270-1 1203.33 82.59 77.41 92.0 | 96.1 | 84.7 | 95.3 D-359A-07 34 166 16.317 EN 10270-1 1043.672 102.04 63.96 100.0 | 100.0 | 100.0 | 100.0 D-364N 38 177 17.52 EN 10270-1 1187.161 109.24 67.76 91.9 | 91.4 | 91.2 | 93.1 D-364A 30 180 18.111 EN 10270-1 761.233 137.97 42.03 84.3 | 93.5 | 69.3 | 90.1 D-359A-06 34 147 18.648 EN 10270-1 1052.995 90.53 56.47 92.5 | 96.2 | 93.7 | 87.5 D-364 30 180 22.027 EN 10270-1 1426.938 115.22 64.78 84.5 | 93.5 | 85.9 | 74.1 D-363A 30 160 24.697 EN 10270-1 1386.889 103.84 56.16 80.8 | 94.9 | 81.5 | 66.1 D-388 38.3 155 39.18 EN 10270-1 2065.885 102.27 52.73 65.1 | 87.2 | 66.5 | 41.6 D-389A-21 37.8 150 41.076 EN 10270-1 1964.331 102.18 47.82 63.4 | 86.6 | 63.9 | 39.7 D-364R-18 28 170 44.238 EN 10270-1 1969.525 125.48 44.52 62.8 | 90.3 | 61.3 | 36.9 D-389R 34 166 80.175 EN 10270-1 2423.572 135.77 30.23 52.0 | 90.5 | 45.2 | 20.4 Number of similar metal springs: 23 Customs tariff number: 73202081; Compression spring D-359A-07 Country of origin: DE, German; Compression spring D-359A-07 Product image - Compression springs D-359A-07 QR-Code: Compression spring D-359A-07
