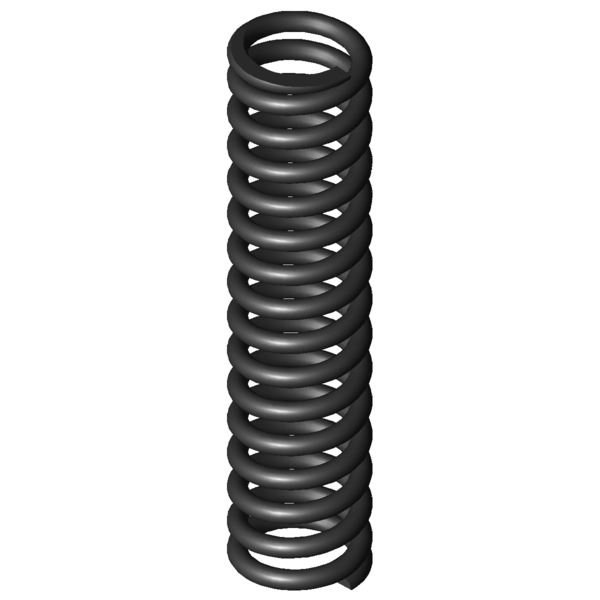

Home » Products » Compression springs » d-359a-06 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-359A-06 Spring steel Ø 5 x 29 x 147 mm Scaled prices - Compression spring D-359A-06 Quantity Single price [EUR] 1 12.9200 EUR 2 10.2900 EUR 3 5.8600 EUR 7 3.7100 EUR 17 2.3700 EUR 37 2.0000 EUR 75 1.9100 EUR 125 1.8670 EUR 175 1.8647 EUR 250 1.8186 EUR 350 1.7923 EUR Compression spring Buy Product image Compression spring D-359A-06 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-359A-06 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 29 mm Mean coil diameter De 34 mm Outer coil diameter Dd 23.1 mm maximum diameter of mandrel Dh 35.2 mm minimum diameter of bush L0 147 mm unstressed spring length Lk mm buckling length Fn 1052.995 N maximum force in static use Ln 90.53 mm Minimum length in static use sn 56.47 mm Maximum spring deflection in static use Fndyn 954.763 N maximum force in dynamic use Lndyn 95.8 mm Minimum length in dynamic use shdyn 26.46 mm Maximum stroke in dynamic use S 10.143 mm pitch of spring n 14 pc. number of active coils nt pc. total number of coils R 18.648 N/mm Spring rate Weight 226.2446 g weight of one spring Fntol 67.9 N (+/-) tolerance of maximum force in static use Fndtol 66.4 N (+/-) tolerance of maximum dynamic force Detol 0.4 mm (+/-) tolerances of outer coil diameter L0tol 2.76 mm (+/-) tolerance of unstressed spring length Price group AD - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-359A-06 Spring steel Ø 5 x 29 x 147 mm Datasheet download pdf file Metal spring characteristic Compression spring D-359A-06 Spring steel Ø 5 x 29 x 147 mm Metal spring characteristic download pdf file CAD data Compression spring D-359A-06 Spring steel Ø 5 x 29 x 147 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-359A-06 Spring steel Ø 5 x 29 x 147 mm force-path-calculation Compression spring D-359A-06 Inquiry formular Compression spring D-359A-06 Spring steel Ø 5 x 29 x 147 mm Inquiry formular Compression spring D-359A-06 Similar compression springs to Compression spring D-359A-06 Spring steel Ø 5 x 29 x 147 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-359A-06 EN 10270-1 5 34 147 1052.995 90.53 56.47 14 18.648 100.0 | 100.0 | 100.0 | 100.0 VD-359A-06 1.4310 5 34 147 904.413 90.53 56.47 14 16.016 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-288N-10 30 135 1.886 EN 10270-1 135.858 62.96 72.04 44.8 | 78.7 | 45.6 | 10.1 D-288K-13 33 150 1.895 EN 10270-1 192.439 48.42 101.58 43.6 | 83.7 | 36.9 | 10.2 D-288Z-23 33 157 2.445 EN 10270-1 254.586 52.88 104.13 45.3 | 83.6 | 39.2 | 13.1 D-288Z-13 37 131 2.47 EN 10270-1 227.331 38.96 92.04 45.0 | 80.3 | 41.5 | 13.2 D-298E 33 148 2.99 EN 10270-1 264.505 59.54 88.46 49.1 | 86.8 | 44.5 | 16.0 D-296 35.2 135 3.835 EN 10270-1 362.819 40.4 94.6 50.6 | 84.1 | 47.1 | 20.6 D-313JA 34 145 4.872 EN 10270-1 406.784 61.51 83.49 56.5 | 90.2 | 53.1 | 26.1 D-327A 36 141 5.896 EN 10270-1 403.35 72.58 68.42 60.7 | 90.1 | 60.4 | 31.6 D-324 37 135 7.639 EN 10270-1 621.215 53.68 81.32 64.4 | 87.9 | 64.2 | 41.0 D-358A 37 160 10.503 EN 10270-1 447.092 117.43 42.57 69.9 | 94.6 | 58.9 | 56.3 D-339R 32 154 12.959 EN 10270-1 834.173 89.63 64.37 82.1 | 93.2 | 83.5 | 69.5 D-357A 37 144 14.393 EN 10270-1 800.314 88.4 55.6 87.0 | 96.6 | 87.2 | 77.2 D-358 37 160 15.545 EN 10270-1 1203.33 82.59 77.41 86.1 | 94.6 | 80.2 | 83.4 D-359A-07 34 166 16.317 EN 10270-1 1043.672 102.04 63.96 92.5 | 96.2 | 93.7 | 87.5 D-359A-06 34 147 18.648 EN 10270-1 1052.995 90.53 56.47 100.0 | 100.0 | 100.0 | 100.0 D-359A-05 34 127 21.756 EN 10270-1 1043.672 79.03 47.97 91.1 | 95.5 | 92.0 | 85.7 D-363A 30 160 24.697 EN 10270-1 1386.889 103.84 56.16 85.5 | 93.4 | 87.7 | 75.5 D-364R-93 39 152 27.214 EN 10270-1 1285.185 104.78 47.22 80.1 | 89.1 | 82.8 | 68.5 D-364R-09 39 152 30.004 EN 10270-1 1845.233 90.5 61.5 75.5 | 90.0 | 74.4 | 62.1 D-388 38.3 155 39.18 EN 10270-1 2065.885 102.27 52.73 69.1 | 87.7 | 72.2 | 47.6 D-364R-49 33.6 125 39.687 EN 10270-1 1609.108 84.46 40.55 68.9 | 91.0 | 68.6 | 47.0 D-389A-21 37.8 150 41.076 EN 10270-1 1964.331 102.18 47.82 67.9 | 89.1 | 69.1 | 45.4 D-389A-09 39 152 46.861 EN 10270-1 1862.91 112.25 39.75 63.1 | 86.2 | 63.5 | 39.8 D-389R 34 166 80.175 EN 10270-1 2423.572 135.77 30.23 52.8 | 86.7 | 48.5 | 23.3 D-389AA 30 150 96.638 EN 10270-1 3041.893 118.52 31.48 50.7 | 87.7 | 45.2 | 19.3 Number of similar metal springs: 24 Customs tariff number: 73202081; Compression spring D-359A-06 Country of origin: DE, German; Compression spring D-359A-06 Product image - Compression springs D-359A-06 QR-Code: Compression spring D-359A-06
