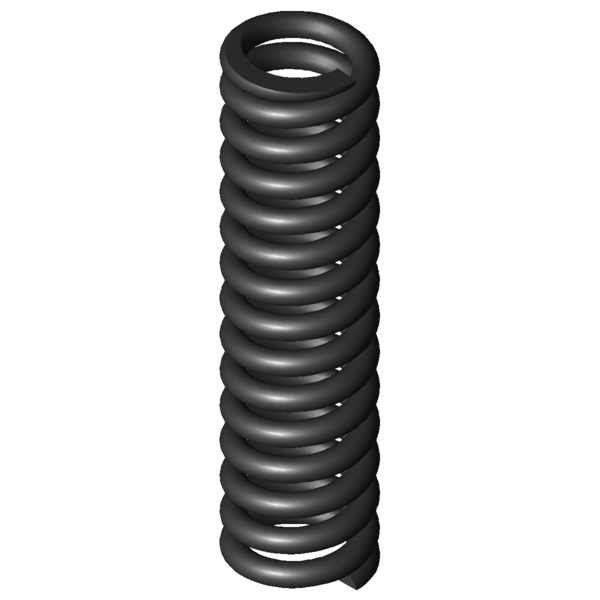

Home » Products » Compression springs » d-389a-09 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-389A-09 Spring steel Ø 6.7 x 32.3 x 152 mm Scaled prices - Compression spring D-389A-09 Quantity Single price [EUR] 1 15.2800 EUR 2 12.1700 EUR 3 7.9400 EUR 7 6.0400 EUR 17 4.4300 EUR 37 3.8300 EUR 75 3.7600 EUR 125 3.7598 EUR 175 3.7361 EUR 250 3.6568 EUR 350 3.5834 EUR Compression spring Buy Product image Compression spring D-389A-09 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-389A-09 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 6.7 mm Wire diameter Di mm Inner coil diameter D 32.3 mm Mean coil diameter De 39 mm Outer coil diameter Dd 24.6 mm maximum diameter of mandrel Dh 40.2 mm minimum diameter of bush L0 152 mm unstressed spring length Lk mm buckling length Fn 1862.91 N maximum force in static use Ln 112.25 mm Minimum length in static use sn 39.75 mm Maximum spring deflection in static use Fndyn 1587.667 N maximum force in dynamic use Lndyn 118.12 mm Minimum length in dynamic use shdyn 22.51 mm Maximum stroke in dynamic use S 11.177 mm pitch of spring n 13 pc. number of active coils nt pc. total number of coils R 46.861 N/mm Spring rate Weight 424.1931 g weight of one spring Fntol 156 N (+/-) tolerance of maximum force in static use Fndtol 152 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 2.7 mm (+/-) tolerance of unstressed spring length Price group AN - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-389A-09 Spring steel Ø 6.7 x 32.3 x 152 mm Datasheet download pdf file Metal spring characteristic Compression spring D-389A-09 Spring steel Ø 6.7 x 32.3 x 152 mm Metal spring characteristic download pdf file CAD data Compression spring D-389A-09 Spring steel Ø 6.7 x 32.3 x 152 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-389A-09 Spring steel Ø 6.7 x 32.3 x 152 mm force-path-calculation Compression spring D-389A-09 Inquiry formular Compression spring D-389A-09 Spring steel Ø 6.7 x 32.3 x 152 mm Inquiry formular Compression spring D-389A-09 Similar compression springs to Compression spring D-389A-09 Spring steel Ø 6.7 x 32.3 x 152 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-389A-09 EN 10270-1 6.7 39 152 1862.91 112.25 39.75 13 46.861 91.1 | 96.5 | 89.0 | 87.6 VD-389A-09 1.4310 6.7 39 152 1600.046 112.25 39.75 13 40.249 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-357A 37 144 14.393 EN 10270-1 800.314 88.4 55.6 63.2 | 91.1 | 63.4 | 35.0 D-358 37 160 15.545 EN 10270-1 1203.33 82.59 77.41 63.2 | 90.3 | 61.5 | 37.8 D-364N 38 177 17.52 EN 10270-1 1187.161 109.24 67.76 66.2 | 90.5 | 65.5 | 42.7 D-382A 46.3 152 18.574 EN 10270-1 756.02 111.3 40.7 67.2 | 92.8 | 69.1 | 39.6 D-359A-06 34 147 18.648 EN 10270-1 1052.995 90.53 56.47 67.9 | 89.1 | 69.1 | 45.4 D-364J-11 42 135 22.554 EN 10270-1 1443.45 71 64 68.6 | 87.9 | 69.8 | 48.1 D-364R-10 39 178 25.203 EN 10270-1 1839.832 105 73 73.7 | 90.7 | 76.6 | 53.8 D-364R-93 39 152 27.214 EN 10270-1 1285.185 104.78 47.22 81.8 | 96.9 | 82.1 | 66.3 D-364R-09 39 152 30.004 EN 10270-1 1845.233 90.5 61.5 84.9 | 95.9 | 85.8 | 73.0 D-364R-08 39 127 36.005 EN 10270-1 1843.433 75.8 51.2 90.8 | 91.2 | 93.6 | 87.7 D-388 38.3 155 39.18 EN 10270-1 2065.885 102.27 52.73 95.6 | 98.5 | 92.9 | 95.4 D-389A-10 39 178 40.613 EN 10270-1 2052.855 127.45 50.55 88.8 | 95.1 | 84.7 | 86.7 D-389A-21 37.8 150 41.076 EN 10270-1 1964.331 102.18 47.82 100.0 | 100.0 | 100.0 | 100.0 D-389N-03 46 152 41.235 EN 10270-1 2380.938 94.26 57.74 85.0 | 93.5 | 73.5 | 88.0 D-389A-09 39 152 46.861 EN 10270-1 1862.91 112.25 39.75 91.1 | 96.5 | 89.0 | 87.6 D-389A-08 39 127 58.019 EN 10270-1 1958.865 93.24 33.76 82.6 | 91.9 | 85.2 | 70.8 D-414AD 42 168 78.642 EN 10270-1 2380.812 137.73 30.27 75.3 | 89.0 | 77.2 | 59.6 Number of similar metal springs: 16 Customs tariff number: 73202081; Compression spring D-389A-09 Country of origin: DE, German; Compression spring D-389A-09 Product image - Compression springs D-389A-09 QR-Code: Compression spring D-389A-09
