Compression spring D-364J-11 Spring steel Ø 5.5 x 36.5 x 135 mm

Scaled prices - Compression spring D-364J-11

Quantity	Single price [EUR]
1	13.5300 EUR
2	10.7800 EUR
3	6.2300 EUR
7	4.2800 EUR
17	2.7100 EUR
37	2.3100 EUR
75	2.2200 EUR
125	2.1813 EUR
175	2.1735 EUR
250	2.1481 EUR
350	2.0967 EUR

Compression spring Buy

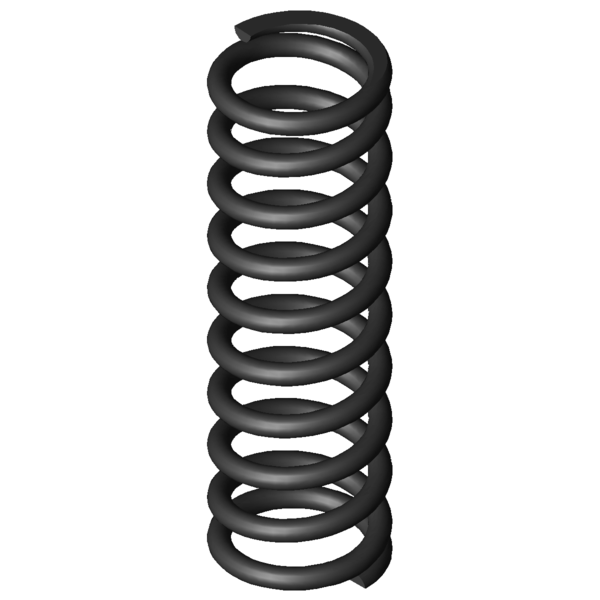

Product image Compression spring D-364J-11

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-364J-11

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	5.5	mm	Wire diameter
Di		mm	Inner coil diameter
D	36.5	mm	Mean coil diameter
De	42	mm	Outer coil diameter
Dd	30	mm	maximum diameter of mandrel
Dh	43.4	mm	minimum diameter of bush
L0	135	mm	unstressed spring length
Lk		mm	buckling length
Fn	1443.45	N	maximum force in static use
Ln	71	mm	Minimum length in static use
sn	64	mm	Maximum spring deflection in static use
Fndyn	1195.4	N	maximum force in dynamic use
Lndyn	82	mm	Minimum length in dynamic use
shdyn	20.2	mm	Maximum stroke in dynamic use
S	15.235	mm	pitch of spring
n	8.5	pc.	number of active coils
nt		pc.	total number of coils
R	22.554	N/mm	Spring rate
Weight	226.1142	g	weight of one spring
Fntol	71	N	(+/-) tolerance of maximum force in static use
Fndtol	63.5	N	(+/-) tolerance of maximum dynamic force
Detol	0.5	mm	(+/-) tolerances of outer coil diameter
L0tol	2.2	mm	(+/-) tolerance of unstressed spring length
Price group	AG	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-364J-11 Spring steel Ø 5.5 x 36.5 x 135 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-364J-11 Spring steel Ø 5.5 x 36.5 x 135 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-364J-11 Spring steel Ø 5.5 x 36.5 x 135 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-364J-11 Spring steel Ø 5.5 x 36.5 x 135 mm

force-path-calculation Compression spring D-364J-11

Inquiry formular Compression spring D-364J-11 Spring steel Ø 5.5 x 36.5 x 135 mm

Inquiry formular Compression spring D-364J-11

Similar compression springs to Compression spring D-364J-11 Spring steel Ø 5.5 x 36.5 x 135 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-364J-11	EN 10270-1	5.5	42	135	1443.45	71	64	8.5	22.554	100.0 \| 100.0 \| 100.0 \| 100.0
VD-364J-11	1.4310	5.5	42	135	1239.8	71	63.7	8.5	19.371	93.0 \| 100.0 \| 92.7 \| 86.3

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-288Z-13	37	131	2.47	EN 10270-1	227.331	38.96	92.04	44.5 \| 79.9 \| 42.6 \| 11.0
D-290	43.2	125	3.035	EN 10270-1	288.652	29.89	95.12	46.6 \| 82.7 \| 43.6 \| 13.5
D-313H	40	155	3.735	EN 10270-1	391.897	50.06	104.94	47.7 \| 82.6 \| 44.1 \| 16.6
D-296	35.2	135	3.835	EN 10270-1	362.819	40.4	94.6	48.0 \| 80.7 \| 46.4 \| 17.0
D-321	44	160	4.794	EN 10270-1	524.956	50.5	109.5	50.9 \| 84.2 \| 47.4 \| 21.3
D-327A	36	141	5.896	EN 10270-1	403.35	72.58	68.42	57.2 \| 84.7 \| 60.7 \| 26.1
D-324	37	135	7.639	EN 10270-1	621.215	53.68	81.32	60.6 \| 86.9 \| 60.9 \| 33.9
D-339N-05	41	115	10.107	EN 10270-1	607.933	54.85	60.15	67.0 \| 88.2 \| 68.1 \| 44.8
D-351B	45	130	11.054	EN 10270-1	731.563	63.82	66.18	72.1 \| 93.5 \| 73.7 \| 49.0
D-352	45	140	11.704	EN 10270-1	926.636	60.83	79.17	72.7 \| 93.6 \| 72.5 \| 51.9
D-364J-23	48	135	14.287	EN 10270-1	976.5	66.65	68.35	79.9 \| 95.8 \| 80.6 \| 63.3
D-357A	37	144	14.393	EN 10270-1	800.314	88.4	55.6	75.3 \| 90.9 \| 71.2 \| 63.8
D-364R-83	46	150	16.504	EN 10270-1	833.439	99.5	50.5	77.5 \| 91.0 \| 68.3 \| 73.2
D-382A	46.3	152	18.574	EN 10270-1	756.02	111.3	40.7	76.4 \| 88.9 \| 58.0 \| 82.4
D-364J-11	42	135	22.554	EN 10270-1	1443.45	71	64	100.0 \| 100.0 \| 100.0 \| 100.0
D-364R-93	39	152	27.214	EN 10270-1	1285.185	104.78	47.22	85.1 \| 91.1 \| 81.4 \| 82.9
D-382	46.3	135	29.501	EN 10270-1	1777.615	74.74	60.26	85.6 \| 92.7 \| 87.7 \| 76.5
D-364R-09	39	152	30.004	EN 10270-1	1845.233	90.5	61.5	84.8 \| 92.2 \| 87.2 \| 75.2
D-364R-08	39	127	36.005	EN 10270-1	1843.433	75.8	51.2	78.6 \| 93.9 \| 79.2 \| 62.6
D-364R-07	39	115	39.38	EN 10270-1	1839.045	68.3	46.7	74.7 \| 91.0 \| 75.7 \| 57.3
D-389A-21	37.8	150	41.076	EN 10270-1	1964.331	102.18	47.82	72.7 \| 89.1 \| 74.1 \| 54.9
D-389N-03	46	152	41.235	EN 10270-1	2380.938	94.26	57.74	72.1 \| 86.2 \| 75.4 \| 54.7
D-389A-09	39	152	46.861	EN 10270-1	1862.91	112.25	39.75	68.6 \| 87.9 \| 69.8 \| 48.1
D-389A-08	39	127	58.019	EN 10270-1	1958.865	93.24	33.76	63.9 \| 89.7 \| 63.2 \| 38.9
D-389A-07	39	115	64.126	EN 10270-1	1883.135	85.63	29.37	61.1 \| 86.7 \| 61.3 \| 35.2
D-412	48	135	76.706	EN 10270-1	3194.8	93.35	41.65	56.6 \| 85.4 \| 55.1 \| 29.4
D-414AF	42	130	124.903	EN 10270-1	4434.047	94.5	35.5	50.1 \| 88.3 \| 44.0 \| 18.1
D-414AC	42	110	124.903	EN 10270-1	2168.015	92.64	17.36	49.4 \| 83.4 \| 46.9 \| 18.1

Number of similar metal springs: 27

Customs tariff number: 73202081; Compression spring D-364J-11
