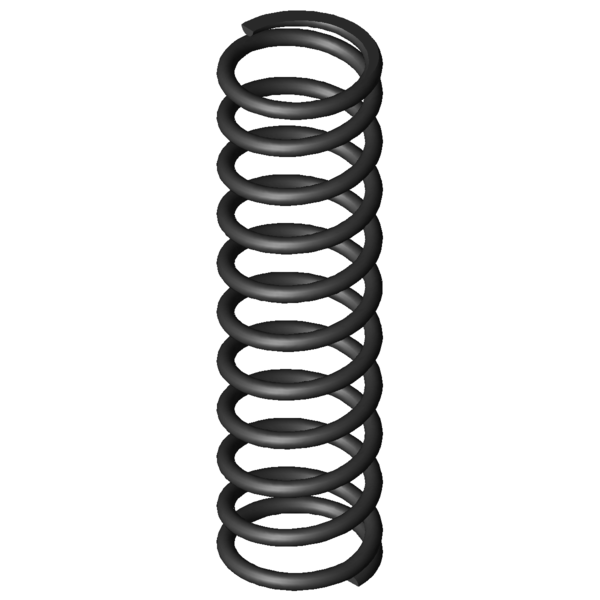

Home » Products » Compression springs » d-324 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-324 Spring steel Ø 4 x 33 x 135 mm Scaled prices - Compression spring D-324 Quantity Single price [EUR] 1 12.3700 EUR 2 9.8500 EUR 3 5.1300 EUR 7 3.0500 EUR 17 1.6600 EUR 37 1.3900 EUR 75 1.3700 EUR 125 1.3384 EUR 175 1.3339 EUR 250 1.2834 EUR 350 1.2456 EUR Compression spring Buy Product image Compression spring D-324 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-324 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4 mm Wire diameter Di mm Inner coil diameter D 33 mm Mean coil diameter De 37 mm Outer coil diameter Dd 28 mm maximum diameter of mandrel Dh 38.5 mm minimum diameter of bush L0 135 mm unstressed spring length Lk mm buckling length Fn 621.215 N maximum force in static use Ln 53.68 mm Minimum length in static use sn 81.32 mm Maximum spring deflection in static use Fndyn 561.474 N maximum force in dynamic use Lndyn 61.5 mm Minimum length in dynamic use shdyn 28.04 mm Maximum stroke in dynamic use S 13.789 mm pitch of spring n 9.5 pc. number of active coils nt pc. total number of coils R 7.639 N/mm Spring rate Weight 118.4273 g weight of one spring Fntol 29.44 N (+/-) tolerance of maximum force in static use Fndtol 29 N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 2.63 mm (+/-) tolerance of unstressed spring length Price group AA - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-324 Spring steel Ø 4 x 33 x 135 mm Datasheet download pdf file Metal spring characteristic Compression spring D-324 Spring steel Ø 4 x 33 x 135 mm Metal spring characteristic download pdf file CAD data Compression spring D-324 Spring steel Ø 4 x 33 x 135 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-324 Spring steel Ø 4 x 33 x 135 mm force-path-calculation Compression spring D-324 Inquiry formular Compression spring D-324 Spring steel Ø 4 x 33 x 135 mm Inquiry formular Compression spring D-324 Similar compression springs to Compression spring D-324 Spring steel Ø 4 x 33 x 135 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-324 EN 10270-1 4 37 135 621.215 53.68 81.32 9.5 7.639 100.0 | 100.0 | 100.0 | 100.0 VD-324 1.4310 4 37 135 533.559 53.68 81.32 9.5 6.561 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-207JB 35.5 115 0.239 EN 10270-1 23.039 18.43 96.57 40.0 | 72.9 | 44.0 | 3.1 D-234H 34 120 0.904 EN 10270-1 90.15 20.32 99.68 45.6 | 76.9 | 48.0 | 11.8 D-263F 38 134 0.946 EN 10270-1 105.429 22.52 111.48 47.1 | 83.9 | 45.0 | 12.4 D-263X 42 141 1.174 EN 10270-1 135.864 25.27 115.73 47.9 | 82.1 | 46.1 | 15.4 D-288N-10 30 135 1.886 EN 10270-1 135.858 62.96 72.04 54.5 | 83.7 | 55.2 | 24.7 D-288Z-13 37 131 2.47 EN 10270-1 227.331 38.96 92.04 61.8 | 90.7 | 62.5 | 32.3 D-298E 33 148 2.99 EN 10270-1 264.505 59.54 88.46 64.4 | 86.8 | 67.3 | 39.1 D-296 35.2 135 3.835 EN 10270-1 362.819 40.4 94.6 71.4 | 91.7 | 72.2 | 50.2 D-313JA 34 145 4.872 EN 10270-1 406.784 61.51 83.49 79.0 | 91.7 | 81.4 | 63.8 D-327A 36 141 5.896 EN 10270-1 403.35 72.58 68.42 83.1 | 97.7 | 74.5 | 77.2 D-324 37 135 7.639 EN 10270-1 621.215 53.68 81.32 100.0 | 100.0 | 100.0 | 100.0 D-327 36 120 9.364 EN 10270-1 667.955 48.66 71.34 89.1 | 95.4 | 90.4 | 81.6 D-358A 37 160 10.503 EN 10270-1 447.092 117.43 42.57 74.3 | 88.1 | 62.2 | 72.7 D-357A 37 144 14.393 EN 10270-1 800.314 88.4 55.6 72.4 | 91.3 | 73.0 | 53.1 D-358 37 160 15.545 EN 10270-1 1203.33 82.59 77.41 70.2 | 88.1 | 73.4 | 49.1 D-359A-06 34 147 18.648 EN 10270-1 1052.995 90.53 56.47 64.4 | 87.9 | 64.2 | 41.0 D-359A-05 34 127 21.756 EN 10270-1 1043.672 79.03 47.97 61.0 | 88.7 | 59.3 | 35.1 D-364J-11 42 135 22.554 EN 10270-1 1443.45 71 64 60.6 | 86.9 | 60.9 | 33.9 D-357 37 110 22.86 EN 10270-1 1157.61 59.36 50.64 59.5 | 87.2 | 58.0 | 33.4 D-364R-93 39 152 27.214 EN 10270-1 1285.185 104.78 47.22 54.9 | 83.5 | 53.2 | 28.1 D-364M 38 113 28.585 EN 10270-1 1194.538 71.21 41.79 54.3 | 84.6 | 51.7 | 26.7 D-364R-09 39 152 30.004 EN 10270-1 1845.233 90.5 61.5 54.8 | 84.2 | 54.6 | 25.5 D-364R-08 39 127 36.005 EN 10270-1 1843.433 75.8 51.2 51.8 | 86.0 | 48.3 | 21.2 D-388 38.3 155 39.18 EN 10270-1 2065.885 102.27 52.73 49.8 | 82.4 | 47.5 | 19.5 D-364R-07 39 115 39.38 EN 10270-1 1839.045 68.3 46.7 49.3 | 83.0 | 45.6 | 19.4 D-364R-49 33.6 125 39.687 EN 10270-1 1609.108 84.46 40.55 49.5 | 84.9 | 44.2 | 19.3 Number of similar metal springs: 25 Customs tariff number: 73202081; Compression spring D-324 Country of origin: DE, German; Compression spring D-324 Product image - Compression springs D-324 QR-Code: Compression spring D-324
