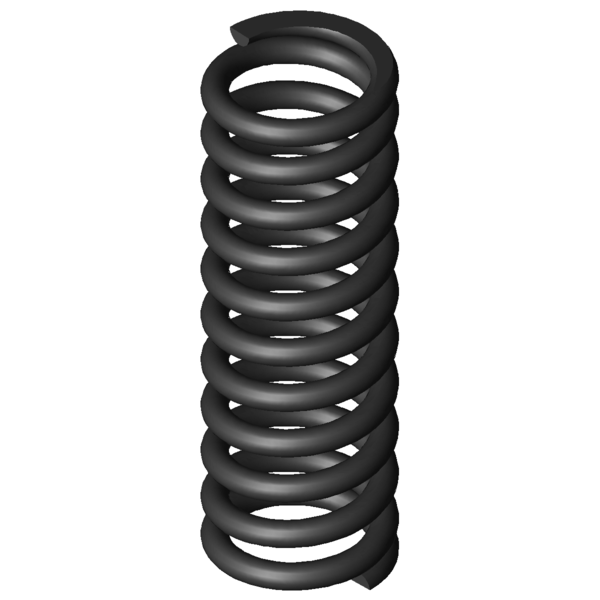

Home » Products » Compression springs » d-364m Url teilen URL was copied to clipboard, successfully ! Overview Back to overview The Item has been added to your shopping cart. Compression spring D-364M Spring steel Ø 5.5 x 32.5 x 113 mm Scaled prices - Compression spring D-364M Quantity Single price [EUR] 1 13.5300 EUR 2 10.7800 EUR 3 6.2300 EUR 7 4.2800 EUR 17 2.7100 EUR 37 2.3100 EUR 75 2.2200 EUR 125 2.1813 EUR 175 2.1735 EUR 250 2.1481 EUR 350 2.0967 EUR Compression spring Buy Product image Compression spring D-364M Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-364M Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 - N prestressed spring force L1 - mm Prestressed spring length s1 - mm Prestressed spring deflection F2 - N Loaded spring force L2 - mm Loaded spring length s2 - mm Loaded spring deflection d 5.5 mm Wire diameter Di - mm Inner coil diameter D 32.5 mm Mean coil diameter De 38 mm Outer coil diameter Dd 26 mm maximum diameter of mandrel Dh 39.3 mm minimum diameter of bush L0 113 mm unstressed spring length Lk mm buckling length Fn 1194.538 N maximum force in static use Ln 71.21 mm Minimum length in static use sn 41.79 mm Maximum spring deflection in static use Fndyn 1080.815 N maximum force in dynamic use Lndyn 75.19 mm Minimum length in dynamic use shdyn 20.59 mm Maximum stroke in dynamic use S 11.316 mm pitch of spring n 9.5 pc. number of active coils nt - pc. total number of coils R 28.585 N/mm Spring rate Weight 220.5092 g weight of one spring Fntol 79.5 N (+/-) tolerance of maximum force in static use Fndtol 77.8 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 2.15 mm (+/-) tolerance of unstressed spring length Price group AG - price group F1tol - N (+/-) tolerance of prestressed spring force F2tol - N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-364M Spring steel Ø 5.5 x 32.5 x 113 mm Datasheet download pdf file Metal spring characteristic Compression spring D-364M Spring steel Ø 5.5 x 32.5 x 113 mm Metal spring characteristic download pdf file CAD data Compression spring D-364M Spring steel Ø 5.5 x 32.5 x 113 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-364M Spring steel Ø 5.5 x 32.5 x 113 mm force-path-calculation Compression spring D-364M Inquiry formular Compression spring D-364M Spring steel Ø 5.5 x 32.5 x 113 mm Inquiry formular Compression spring D-364M Similar compression springs to Compression spring D-364M Spring steel Ø 5.5 x 32.5 x 113 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-364M EN 10270-1 5.5 38 113 1194.538 71.21 41.79 9.5 28.585 69.9 | 89.5 | 70.9 | 49.3 VD-364M 1.4310 5.5 38 113 1025.983 71.21 41.79 9.5 24.552 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-234H 34 120 0.904 EN 10270-1 90.15 20.32 99.68 33.7 | 73.3 | 24.7 | 3.2 D-263F 38 134 0.946 EN 10270-1 105.429 22.52 111.48 33.7 | 74.8 | 23.2 | 3.3 D-288Z 40 100 1.715 EN 10270-1 96.284 43.85 56.15 42.2 | 79.3 | 41.2 | 6.0 D-265 34.5 110 2.208 EN 10270-1 183.271 27 83 39.5 | 77.9 | 32.8 | 7.7 D-288Z-13 37 131 2.47 EN 10270-1 227.331 38.96 92.04 40.1 | 79.4 | 32.2 | 8.6 D-288Z-22 33 108 3.596 EN 10270-1 252.141 37.88 70.13 44.0 | 79.0 | 40.3 | 12.6 D-320 44 105 7.409 EN 10270-1 514.932 35.5 69.5 53.8 | 84.0 | 51.6 | 25.9 D-324 37 135 7.639 EN 10270-1 621.215 53.68 81.32 54.3 | 84.6 | 51.7 | 26.7 D-327 36 120 9.364 EN 10270-1 667.955 48.66 71.34 45.2 | 82.6 | 38.3 | 14.6 D-339N-05 41 115 10.107 EN 10270-1 607.933 54.85 60.15 47.9 | 87.4 | 40.6 | 15.8 D-351A 45 110 13.265 EN 10270-1 731.563 54.85 55.15 50.8 | 85.6 | 46.1 | 20.7 D-357 37 110 22.86 EN 10270-1 1157.61 59.36 50.64 62.5 | 85.4 | 62.9 | 39.4 D-356A 37 94 22.86 EN 10270-1 791.848 59.36 34.64 81.7 | 90.5 | 74.6 | 80.0 D-359A-04 34 107 26.107 EN 10270-1 1030.618 67.52 39.48 63.4 | 84.9 | 64.6 | 40.7 D-364M 38 113 28.585 EN 10270-1 1194.538 71.21 41.79 69.9 | 89.5 | 70.9 | 49.3 D-364J-10 42 102 29.494 EN 10270-1 1454.422 52.69 49.31 67.4 | 87.9 | 68.4 | 46.0 D-364R-08 39 127 36.005 EN 10270-1 1843.433 75.8 51.2 79.2 | 95.5 | 80.0 | 62.1 D-364R-07 39 115 39.38 EN 10270-1 1839.045 68.3 46.7 81.1 | 92.4 | 83.1 | 67.9 D-364R-49 33.6 125 39.687 EN 10270-1 1609.108 84.46 40.55 80.2 | 89.4 | 82.7 | 68.4 D-364R-92 39 100 43.223 EN 10270-1 1278.781 70.41 29.59 81.1 | 92.2 | 83.6 | 67.4 D-364R-06 39 102 45.006 EN 10270-1 1845.233 61 41 84.9 | 89.0 | 88.3 | 77.6 D-387 38.3 110 57.618 EN 10270-1 2098.612 73.58 36.42 95.1 | 92.9 | 93.0 | 99.3 D-389A-08 39 127 58.019 EN 10270-1 1958.865 93.24 33.76 100.0 | 100.0 | 100.0 | 100.0 D-389A-07 39 115 64.126 EN 10270-1 1883.135 85.63 29.37 93.0 | 96.9 | 91.6 | 90.5 D-389A-06 39 102 71.67 EN 10270-1 1717.915 78.03 23.97 84.6 | 93.4 | 79.4 | 81.0 D-414AC 42 110 124.903 EN 10270-1 2168.015 92.64 17.36 68.4 | 87.7 | 70.9 | 46.5 D-389Q 34 107 130.811 EN 10270-1 2402.474 88.63 18.37 70.5 | 92.0 | 70.5 | 49.0 Number of similar metal springs: 26 Customs tariff number: 73202081; Compression spring D-364M Country of origin: DE, German; Compression spring D-364M Product image - Compression springs D-364M QR-Code: Compression spring D-364M
