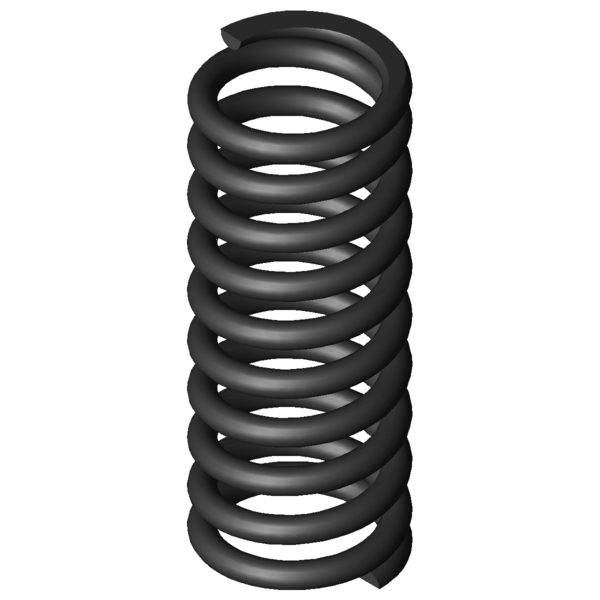

Home » Products » Compression springs » d-356a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-356A Spring steel Ø 5 x 32 x 94 mm Scaled prices - Compression spring D-356A Quantity Single price [EUR] 1 12.7100 EUR 2 10.1200 EUR 3 5.6200 EUR 7 3.4700 EUR 17 2.1700 EUR 37 1.8100 EUR 75 1.7400 EUR 125 1.7081 EUR 175 1.7063 EUR 250 1.6746 EUR 350 1.6471 EUR Compression spring Buy Product image Compression spring D-356A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-356A Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 32 mm Mean coil diameter De 37 mm Outer coil diameter Dd 26 mm maximum diameter of mandrel Dh 38.2 mm minimum diameter of bush L0 94 mm unstressed spring length Lk mm buckling length Fn 791.848 N maximum force in static use Ln 59.36 mm Minimum length in static use sn 34.64 mm Maximum spring deflection in static use Fndyn 713.465 N maximum force in dynamic use Lndyn 62.79 mm Minimum length in dynamic use shdyn 22.88 mm Maximum stroke in dynamic use S 10.471 mm pitch of spring n 8.5 pc. number of active coils nt pc. total number of coils R 22.86 N/mm Spring rate Weight 163.8323 g weight of one spring Fntol 57.5 N (+/-) tolerance of maximum force in static use Fndtol 56.32 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 2 mm (+/-) tolerance of unstressed spring length Price group AC - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-356A Spring steel Ø 5 x 32 x 94 mm Datasheet download pdf file Metal spring characteristic Compression spring D-356A Spring steel Ø 5 x 32 x 94 mm Metal spring characteristic download pdf file CAD data Compression spring D-356A Spring steel Ø 5 x 32 x 94 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-356A Spring steel Ø 5 x 32 x 94 mm force-path-calculation Compression spring D-356A Inquiry formular Compression spring D-356A Spring steel Ø 5 x 32 x 94 mm Inquiry formular Compression spring D-356A Similar compression springs to Compression spring D-356A Spring steel Ø 5 x 32 x 94 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-356A EN 10270-1 5 37 94 791.848 59.36 34.64 8.5 22.86 83.1 | 95.2 | 84.1 | 70.0 VD-356A 1.4310 5 37 94 680.115 59.36 34.64 8.5 19.634 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-263E 38 86.6 1.486 EN 10270-1 105.023 15.93 70.67 38.5 | 77.8 | 31.1 | 6.5 D-268A-05 32 100 1.55 EN 10270-1 96.538 37.72 62.28 39.2 | 76.8 | 33.9 | 6.8 D-288Y 41 92 1.671 EN 10270-1 83.216 42.2 49.8 43.3 | 82.7 | 40.0 | 7.3 D-288Z 40 100 1.715 EN 10270-1 96.284 43.85 56.15 42.2 | 82.2 | 36.9 | 7.5 D-263W 42 91.7 1.845 EN 10270-1 136.149 17.9 73.8 39.6 | 78.5 | 32.1 | 8.1 D-288K-12 33 100 2.842 EN 10270-1 187.134 34.15 65.85 40.8 | 80.4 | 33.2 | 8.7 D-288Z-12 37 87.1 3.817 EN 10270-1 228.162 27.33 59.77 44.3 | 83.6 | 37.7 | 11.7 D-298D 33 96 4.749 EN 10270-1 266.616 39.86 56.14 46.7 | 84.2 | 41.3 | 14.6 D-295 35.2 88.5 5.927 EN 10270-1 356.229 28.4 60.1 49.5 | 86.7 | 43.7 | 18.2 D-313G 40 92.8 6.451 EN 10270-1 392.101 32.02 60.78 56.4 | 87.7 | 53.3 | 28.2 D-313J-05 31.6 92 9.17 EN 10270-1 443.507 43.64 48.36 56.4 | 86.9 | 54.3 | 28.1 D-326A 36 92 9.364 EN 10270-1 405.777 48.66 43.34 58.4 | 90.0 | 56.3 | 28.7 D-326 36 79.5 14.471 EN 10270-1 653.91 34.31 45.19 66.4 | 88.3 | 66.7 | 44.3 D-339Q 32 97.7 21.144 EN 10270-1 830.558 58.42 39.28 78.9 | 91.4 | 80.5 | 64.8 D-356A 37 94 22.86 EN 10270-1 791.848 59.36 34.64 83.1 | 95.2 | 84.1 | 70.0 D-359A-04 34 107 26.107 EN 10270-1 1030.618 67.52 39.48 87.7 | 93.2 | 82.3 | 87.6 D-364J-10 42 102 29.494 EN 10270-1 1454.422 52.69 49.31 76.7 | 90.4 | 62.3 | 77.5 D-359A-03 34 88 32.634 EN 10270-1 1043.672 56.02 31.98 100.0 | 100.0 | 100.0 | 100.0 D-356 37 75 35.329 EN 10270-1 1168.001 41.94 33.06 79.9 | 93.3 | 81.6 | 64.7 D-364R-92 39 100 43.223 EN 10270-1 1278.781 70.41 29.59 72.4 | 90.7 | 73.7 | 52.9 D-364R-06 39 102 45.006 EN 10270-1 1845.233 61 41 68.5 | 91.1 | 63.7 | 50.8 D-364R-05 39 89 52.507 EN 10270-1 1837.732 54 35 75.7 | 90.8 | 74.1 | 62.2 D-387 38.3 110 57.618 EN 10270-1 2098.612 73.58 36.42 64.4 | 87.1 | 66.4 | 39.7 D-386A 38.3 85 65.301 EN 10270-1 1214.362 66.4 18.6 70.1 | 88.2 | 72.1 | 50.0 D-389A-06 39 102 71.67 EN 10270-1 1717.915 78.03 23.97 58.9 | 87.2 | 57.6 | 31.9 D-389A-20 37.8 85 78.992 EN 10270-1 2039.532 59.18 25.82 65.3 | 88.6 | 66.0 | 41.3 D-389A-05 39 89 81.227 EN 10270-1 1508.638 70.43 18.57 63.6 | 86.9 | 63.6 | 40.2 D-389Q 34 107 130.811 EN 10270-1 2402.474 88.63 18.37 48.1 | 83.7 | 43.0 | 17.5 Number of similar metal springs: 27 Customs tariff number: 73202081; Compression spring D-356A Country of origin: DE, German; Compression spring D-356A Product image - Compression springs D-356A QR-Code: Compression spring D-356A
