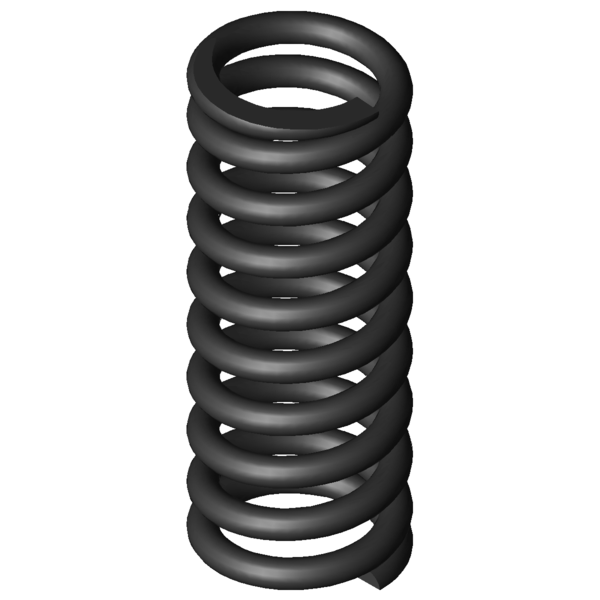

Home » Products » Compression springs » d-359a-03 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-359A-03 Spring steel Ø 5 x 29 x 88 mm Scaled prices - Compression spring D-359A-03 Quantity Single price [EUR] 1 12.7100 EUR 2 10.1200 EUR 3 5.6200 EUR 7 3.4700 EUR 17 2.1700 EUR 37 1.8100 EUR 75 1.7400 EUR 125 1.7081 EUR 175 1.7063 EUR 250 1.6746 EUR 350 1.6471 EUR Compression spring Buy Product image Compression spring D-359A-03 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-359A-03 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 29 mm Mean coil diameter De 34 mm Outer coil diameter Dd 23.1 mm maximum diameter of mandrel Dh 35.2 mm minimum diameter of bush L0 88 mm unstressed spring length Lk mm buckling length Fn 1043.672 N maximum force in static use Ln 56.02 mm Minimum length in static use sn 31.98 mm Maximum spring deflection in static use Fndyn 945.393 N maximum force in dynamic use Lndyn 59.03 mm Minimum length in dynamic use shdyn 15.23 mm Maximum stroke in dynamic use S 10.375 mm pitch of spring n 8 pc. number of active coils nt pc. total number of coils R 32.634 N/mm Spring rate Weight 141.4029 g weight of one spring Fntol 72.9 N (+/-) tolerance of maximum force in static use Fndtol 71.4 N (+/-) tolerance of maximum dynamic force Detol 0.4 mm (+/-) tolerances of outer coil diameter L0tol 1.72 mm (+/-) tolerance of unstressed spring length Price group AC - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-359A-03 Spring steel Ø 5 x 29 x 88 mm Datasheet download pdf file Metal spring characteristic Compression spring D-359A-03 Spring steel Ø 5 x 29 x 88 mm Metal spring characteristic download pdf file CAD data Compression spring D-359A-03 Spring steel Ø 5 x 29 x 88 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-359A-03 Spring steel Ø 5 x 29 x 88 mm force-path-calculation Compression spring D-359A-03 Inquiry formular Compression spring D-359A-03 Spring steel Ø 5 x 29 x 88 mm Inquiry formular Compression spring D-359A-03 Similar compression springs to Compression spring D-359A-03 Spring steel Ø 5 x 29 x 88 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-359A-03 EN 10270-1 5 34 88 1043.672 56.02 31.98 8 32.634 100.0 | 100.0 | 100.0 | 100.0 VD-359A-03 1.4310 5 34 88 896.405 56.02 31.98 8 28.029 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-288K-12 33 100 2.842 EN 10270-1 187.134 34.15 65.85 40.8 | 80.4 | 33.2 | 8.7 D-264 34.5 71.5 3.47 EN 10270-1 182.514 18.9 52.6 42.1 | 76.6 | 39.1 | 10.6 D-288Z-12 37 87.1 3.817 EN 10270-1 228.162 27.33 59.77 44.3 | 83.6 | 37.7 | 11.7 D-298D 33 96 4.749 EN 10270-1 266.616 39.86 56.14 46.7 | 84.2 | 41.3 | 14.6 D-288Z-21 33 72.5 5.557 EN 10270-1 254.919 26.63 45.88 48.0 | 79.8 | 47.1 | 17.0 D-295 35.2 88.5 5.927 EN 10270-1 356.229 28.4 60.1 49.5 | 86.7 | 43.7 | 18.2 D-313J-05 31.6 92 9.17 EN 10270-1 443.507 43.64 48.36 56.4 | 86.9 | 54.3 | 28.1 D-326A 36 92 9.364 EN 10270-1 405.777 48.66 43.34 58.4 | 90.0 | 56.3 | 28.7 D-313J-09 28.6 91.3 11.527 EN 10270-1 507.278 47.29 44.01 60.0 | 84.2 | 60.6 | 35.3 D-329B 35 76 12.506 EN 10270-1 433.681 41.32 34.68 64.3 | 87.8 | 66.9 | 38.3 D-326 36 79.5 14.471 EN 10270-1 653.91 34.31 45.19 66.4 | 88.3 | 66.7 | 44.3 D-332 29 89.5 19.637 EN 10270-1 826.859 47.39 42.11 75.2 | 87.9 | 77.6 | 60.2 D-339Q 32 97.7 21.144 EN 10270-1 830.558 58.42 39.28 78.9 | 91.4 | 80.5 | 64.8 D-356A 37 94 22.86 EN 10270-1 791.848 59.36 34.64 83.1 | 95.2 | 84.1 | 70.0 D-359A-03 34 88 32.634 EN 10270-1 1043.672 56.02 31.98 100.0 | 100.0 | 100.0 | 100.0 D-362 30 87.5 47.941 EN 10270-1 1397.785 58.34 29.16 82.3 | 95.9 | 82.9 | 68.1 D-364R-05 39 89 52.507 EN 10270-1 1837.732 54 35 75.7 | 90.8 | 74.1 | 62.2 D-386A 38.3 85 65.301 EN 10270-1 1214.362 66.4 18.6 70.1 | 88.2 | 72.1 | 50.0 D-389A-20 37.8 85 78.992 EN 10270-1 2039.532 59.18 25.82 65.3 | 88.6 | 66.0 | 41.3 D-389A-05 39 89 81.227 EN 10270-1 1508.638 70.43 18.57 63.6 | 86.9 | 63.6 | 40.2 D-364Q 28 87.8 86.148 EN 10270-1 1551.821 69.79 18.01 63.6 | 91.0 | 61.8 | 37.9 Number of similar metal springs: 20 Customs tariff number: 73202081; Compression spring D-359A-03 Country of origin: DE, German; Compression spring D-359A-03 Product image - Compression springs D-359A-03 QR-Code: Compression spring D-359A-03
