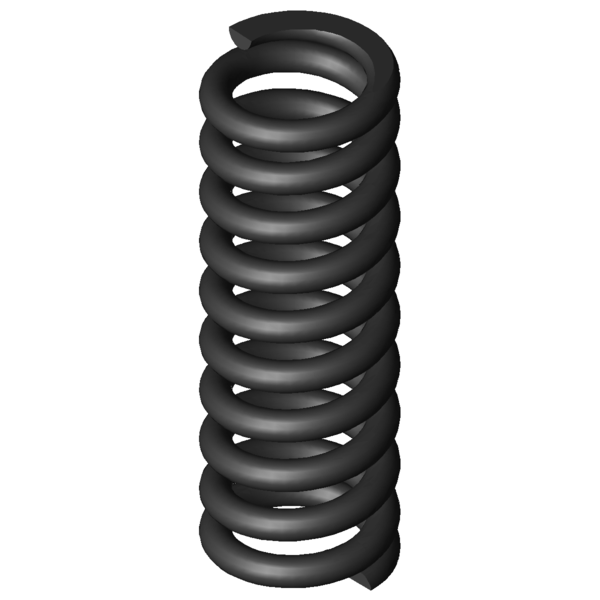

Home » Products » Compression springs » d-362 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-362 Spring steel Ø 5 x 25 x 87.5 mm Scaled prices - Compression spring D-362 Quantity Single price [EUR] 1 12.7100 EUR 2 10.1200 EUR 3 5.6200 EUR 7 3.4700 EUR 17 2.1700 EUR 37 1.8100 EUR 75 1.7400 EUR 125 1.7081 EUR 175 1.7063 EUR 250 1.6746 EUR 350 1.6471 EUR Compression spring Buy Product image Compression spring D-362 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-362 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 25 mm Mean coil diameter De 30 mm Outer coil diameter Dd 19.1 mm maximum diameter of mandrel Dh 31 mm minimum diameter of bush L0 87.5 mm unstressed spring length Lk mm buckling length Fn 1397.785 N maximum force in static use Ln 58.34 mm Minimum length in static use sn 29.16 mm Maximum spring deflection in static use Fndyn 1257.976 N maximum force in dynamic use Lndyn 61.26 mm Minimum length in dynamic use shdyn 9.96 mm Maximum stroke in dynamic use S 9.706 mm pitch of spring n 8.5 pc. number of active coils nt pc. total number of coils R 47.941 N/mm Spring rate Weight 127.994 g weight of one spring Fntol 96.7 N (+/-) tolerance of maximum force in static use Fndtol 94.6 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 1.58 mm (+/-) tolerance of unstressed spring length Price group AC - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-362 Spring steel Ø 5 x 25 x 87.5 mm Datasheet download pdf file Metal spring characteristic Compression spring D-362 Spring steel Ø 5 x 25 x 87.5 mm Metal spring characteristic download pdf file CAD data Compression spring D-362 Spring steel Ø 5 x 25 x 87.5 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-362 Spring steel Ø 5 x 25 x 87.5 mm force-path-calculation Compression spring D-362 Inquiry formular Compression spring D-362 Spring steel Ø 5 x 25 x 87.5 mm Inquiry formular Compression spring D-362 Similar compression springs to Compression spring D-362 Spring steel Ø 5 x 25 x 87.5 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-362 EN 10270-1 5 30 87.5 1397.785 58.34 29.16 8.5 47.941 100.0 | 100.0 | 100.0 | 100.0 VD-362 1.4310 5 30 87.5 1200.551 58.34 29.16 8.5 41.176 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-288Z-33 28 97 6.213 EN 10270-1 374.616 36.71 60.29 43.9 | 81.2 | 37.6 | 13.0 D-288Z-43 27 81.8 7.023 EN 10270-1 318.139 36.5 45.3 46.5 | 81.2 | 43.6 | 14.7 D-300A 28.2 79.4 7.197 EN 10270-1 264.666 42.62 36.78 49.0 | 82.9 | 49.1 | 15.0 D-301 28.2 94.5 8.043 EN 10270-1 447.924 38.81 55.69 47.5 | 83.5 | 42.2 | 16.8 D-313J-05 31.6 92 9.17 EN 10270-1 443.507 43.64 48.36 50.8 | 87.3 | 46.0 | 19.1 D-313J-04 31.6 72.2 10.393 EN 10270-1 341.411 39.35 32.85 53.8 | 83.2 | 56.6 | 21.7 D-313J-09 28.6 91.3 11.527 EN 10270-1 507.278 47.29 44.01 54.3 | 87.7 | 51.3 | 24.0 D-313J-08 28.6 74.6 14.601 EN 10270-1 521.957 38.85 35.75 58.0 | 84.2 | 59.5 | 30.5 D-313M-02 25 86 15.872 EN 10270-1 526.029 52.86 33.14 60.2 | 84.5 | 62.8 | 33.1 D-332 29 89.5 19.637 EN 10270-1 826.859 47.39 42.11 65.5 | 91.5 | 64.2 | 41.0 D-339Q 32 97.7 21.144 EN 10270-1 830.558 58.42 39.28 67.3 | 91.1 | 66.8 | 44.1 D-329B-01 30 70 22.828 EN 10270-1 724.851 38.25 31.75 68.7 | 86.7 | 71.8 | 47.6 D-334A-03 27 78 25.218 EN 10270-1 779.479 47.09 30.91 71.3 | 86.4 | 75.1 | 52.6 D-359A-03 34 88 32.634 EN 10270-1 1043.672 56.02 31.98 82.3 | 95.9 | 82.9 | 68.1 D-362 30 87.5 47.941 EN 10270-1 1397.785 58.34 29.16 100.0 | 100.0 | 100.0 | 100.0 D-364Q 28 87.8 86.148 EN 10270-1 1551.821 69.79 18.01 75.4 | 94.6 | 75.9 | 55.6 Number of similar metal springs: 15 Customs tariff number: 73202081; Compression spring D-362 Country of origin: DE, German; Compression spring D-362 Product image - Compression springs D-362 QR-Code: Compression spring D-362
