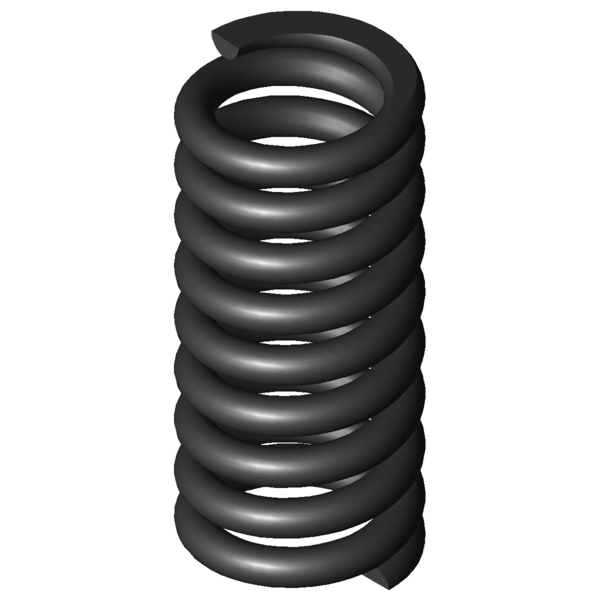

Home » Products » Compression springs » d-386a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-386A Spring steel Ø 6.3 x 32 x 85 mm Scaled prices - Compression spring D-386A Quantity Single price [EUR] 1 13.3600 EUR 2 10.6400 EUR 3 6.1500 EUR 7 4.0000 EUR 17 2.6100 EUR 37 2.2000 EUR 75 2.1400 EUR 125 2.1212 EUR 175 2.1185 EUR 250 2.0658 EUR 350 2.0208 EUR Compression spring Buy Product image Compression spring D-386A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-386A Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 6.3 mm Wire diameter Di mm Inner coil diameter D 32 mm Mean coil diameter De 38.3 mm Outer coil diameter Dd 24.7 mm maximum diameter of mandrel Dh 39.6 mm minimum diameter of bush L0 85 mm unstressed spring length Lk mm buckling length Fn 1214.362 N maximum force in static use Ln 66.4 mm Minimum length in static use sn 18.6 mm Maximum spring deflection in static use Fndyn 1000.409 N maximum force in dynamic use Lndyn 69.68 mm Minimum length in dynamic use shdyn 15.32 mm Maximum stroke in dynamic use S 10.493 mm pitch of spring n 7.5 pc. number of active coils nt pc. total number of coils R 65.301 N/mm Spring rate Weight 235.3287 g weight of one spring Fntol 129 N (+/-) tolerance of maximum force in static use Fndtol 126 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 1.7 mm (+/-) tolerance of unstressed spring length Price group AF - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-386A Spring steel Ø 6.3 x 32 x 85 mm Datasheet download pdf file Metal spring characteristic Compression spring D-386A Spring steel Ø 6.3 x 32 x 85 mm Metal spring characteristic download pdf file CAD data Compression spring D-386A Spring steel Ø 6.3 x 32 x 85 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-386A Spring steel Ø 6.3 x 32 x 85 mm force-path-calculation Compression spring D-386A Inquiry formular Compression spring D-386A Spring steel Ø 6.3 x 32 x 85 mm Inquiry formular Compression spring D-386A Similar compression springs to Compression spring D-386A Spring steel Ø 6.3 x 32 x 85 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-386A EN 10270-1 6.3 38.3 85 1214.362 66.4 18.6 7.5 65.301 83.7 | 93.2 | 66.0 | 91.9 VD-386A 1.4310 6.3 38.3 85 1043.01 66.4 18.6 7.5 56.087 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-295 35.2 88.5 5.927 EN 10270-1 356.229 28.4 60.1 39.6 | 79.6 | 30.1 | 9.1 D-313G 40 92.8 6.451 EN 10270-1 392.101 32.02 60.78 40.9 | 81.5 | 31.4 | 9.9 D-326A 36 92 9.364 EN 10270-1 405.777 48.66 43.34 45.3 | 83.3 | 38.2 | 14.3 D-329B 35 76 12.506 EN 10270-1 433.681 41.32 34.68 54.7 | 85.6 | 53.0 | 25.3 D-326 36 79.5 14.471 EN 10270-1 653.91 34.31 45.19 56.2 | 85.2 | 54.1 | 29.3 D-339N-04 41 78 15.62 EN 10270-1 614.328 38.67 39.33 58.7 | 88.1 | 56.5 | 31.6 D-356A 37 94 22.86 EN 10270-1 791.848 59.36 34.64 61.1 | 88.8 | 59.5 | 35.0 D-359A-03 34 88 32.634 EN 10270-1 1043.672 56.02 31.98 70.1 | 88.2 | 72.1 | 50.0 D-356 37 75 35.329 EN 10270-1 1168.001 41.94 33.06 83.6 | 93.9 | 85.5 | 71.6 D-364R-92 39 100 43.223 EN 10270-1 1278.781 70.41 29.59 79.3 | 92.8 | 78.9 | 66.2 D-364R-06 39 102 45.006 EN 10270-1 1845.233 61 41 71.9 | 91.2 | 55.6 | 68.9 D-364L 38 70 49.375 EN 10270-1 1191.939 45.86 24.14 100.0 | 100.0 | 100.0 | 100.0 D-364R-05 39 89 52.507 EN 10270-1 1837.732 54 35 90.9 | 95.1 | 90.0 | 87.5 D-364R-04 39 76 60.008 EN 10270-1 1764.728 46.59 29.41 84.0 | 94.8 | 74.8 | 82.3 D-386A 38.3 85 65.301 EN 10270-1 1214.362 66.4 18.6 83.7 | 93.2 | 66.0 | 91.9 D-364R-91 39 68 66.799 EN 10270-1 1215.912 49.8 18.2 85.3 | 95.4 | 86.7 | 73.9 D-389A-06 39 102 71.67 EN 10270-1 1717.915 78.03 23.97 85.7 | 91.9 | 74.1 | 91.1 D-389A-20 37.8 85 78.992 EN 10270-1 2039.532 59.18 25.82 85.3 | 92.8 | 87.2 | 76.0 D-389A-05 39 89 81.227 EN 10270-1 1508.638 70.43 18.57 79.6 | 90.7 | 74.3 | 73.9 D-386 38.3 75 89.047 EN 10270-1 2043.089 52.06 22.94 75.1 | 93.3 | 76.7 | 55.4 D-389A-04 39 76 110.763 EN 10270-1 2301.704 55.22 20.78 68.0 | 90.5 | 68.9 | 44.6 D-414AB 42 76 193.031 EN 10270-1 2009.047 65.59 10.41 53.5 | 83.8 | 51.2 | 25.6 Number of similar metal springs: 21 Customs tariff number: 73202081; Compression spring D-386A Country of origin: DE, German; Compression spring D-386A Product image - Compression springs D-386A QR-Code: Compression spring D-386A
