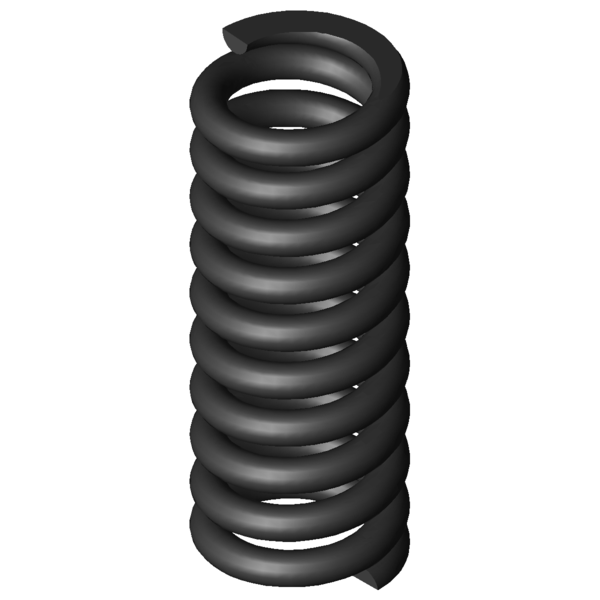

Home » Products » Compression springs » d-389a-06 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-389A-06 Spring steel Ø 6.7 x 32.3 x 102 mm Scaled prices - Compression spring D-389A-06 Quantity Single price [EUR] 1 14.4000 EUR 2 11.4700 EUR 3 7.0900 EUR 7 5.2300 EUR 17 3.6600 EUR 37 3.0100 EUR 75 2.9700 EUR 125 2.9376 EUR 175 2.9180 EUR 250 2.8813 EUR 350 2.8095 EUR Compression spring Buy Product image Compression spring D-389A-06 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-389A-06 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 6.7 mm Wire diameter Di mm Inner coil diameter D 32.3 mm Mean coil diameter De 39 mm Outer coil diameter Dd 24.6 mm maximum diameter of mandrel Dh 40.2 mm minimum diameter of bush L0 102 mm unstressed spring length Lk mm buckling length Fn 1717.915 N maximum force in static use Ln 78.03 mm Minimum length in static use sn 23.97 mm Maximum spring deflection in static use Fndyn 1442.727 N maximum force in dynamic use Lndyn 81.87 mm Minimum length in dynamic use shdyn 15.59 mm Maximum stroke in dynamic use S 11.212 mm pitch of spring n 8.5 pc. number of active coils nt pc. total number of coils R 71.67 N/mm Spring rate Weight 296.9352 g weight of one spring Fntol 160 N (+/-) tolerance of maximum force in static use Fndtol 156 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 1.88 mm (+/-) tolerance of unstressed spring length Price group AK - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-389A-06 Spring steel Ø 6.7 x 32.3 x 102 mm Datasheet download pdf file Metal spring characteristic Compression spring D-389A-06 Spring steel Ø 6.7 x 32.3 x 102 mm Metal spring characteristic download pdf file CAD data Compression spring D-389A-06 Spring steel Ø 6.7 x 32.3 x 102 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-389A-06 Spring steel Ø 6.7 x 32.3 x 102 mm force-path-calculation Compression spring D-389A-06 Inquiry formular Compression spring D-389A-06 Spring steel Ø 6.7 x 32.3 x 102 mm Inquiry formular Compression spring D-389A-06 Similar compression springs to Compression spring D-389A-06 Spring steel Ø 6.7 x 32.3 x 102 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-389A-06 EN 10270-1 6.7 39 102 1717.915 78.03 23.97 8.5 71.67 100.0 | 100.0 | 100.0 | 100.0 VD-389A-06 1.4310 6.7 39 102 1475.51 78.03 23.97 8.5 61.557 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-339N-05 41 115 10.107 EN 10270-1 607.933 54.85 60.15 45.1 | 83.7 | 37.6 | 14.1 D-357 37 110 22.86 EN 10270-1 1157.61 59.36 50.64 58.9 | 87.4 | 57.4 | 31.9 D-356A 37 94 22.86 EN 10270-1 791.848 59.36 34.64 58.9 | 87.2 | 57.6 | 31.9 D-364R-82 46 102 24.27 EN 10270-1 740.242 71.5 30.5 62.0 | 91.4 | 60.8 | 33.9 D-359A-04 34 107 26.107 EN 10270-1 1030.618 67.52 39.48 60.8 | 85.7 | 60.4 | 36.4 D-364M 38 113 28.585 EN 10270-1 1194.538 71.21 41.79 64.4 | 89.9 | 63.4 | 39.9 D-364J-10 42 102 29.494 EN 10270-1 1454.422 52.69 49.31 66.5 | 91.6 | 66.6 | 41.2 D-364R-07 39 115 39.38 EN 10270-1 1839.045 68.3 46.7 73.0 | 91.8 | 72.4 | 54.9 D-364R-92 39 100 43.223 EN 10270-1 1278.781 70.41 29.59 78.0 | 95.9 | 77.7 | 60.3 D-364R-06 39 102 45.006 EN 10270-1 1845.233 61 41 78.0 | 95.5 | 75.8 | 62.8 D-364R-05 39 89 52.507 EN 10270-1 1837.732 54 35 81.8 | 91.3 | 81.0 | 73.3 D-387 38.3 110 57.618 EN 10270-1 2098.612 73.58 36.42 83.1 | 95.0 | 73.8 | 80.4 D-389A-07 39 115 64.126 EN 10270-1 1883.135 85.63 29.37 90.7 | 96.2 | 86.4 | 89.5 D-386A 38.3 85 65.301 EN 10270-1 1214.362 66.4 18.6 85.7 | 91.9 | 74.1 | 91.1 D-389A-06 39 102 71.67 EN 10270-1 1717.915 78.03 23.97 100.0 | 100.0 | 100.0 | 100.0 D-389A-20 37.8 85 78.992 EN 10270-1 2039.532 59.18 25.82 90.2 | 91.4 | 88.5 | 90.7 D-389A-05 39 89 81.227 EN 10270-1 1508.638 70.43 18.57 88.9 | 95.8 | 82.6 | 88.2 D-414AC 42 110 124.903 EN 10270-1 2168.015 92.64 17.36 74.3 | 89.8 | 75.8 | 57.4 D-389Q 34 107 130.811 EN 10270-1 2402.474 88.63 18.37 73.9 | 92.7 | 74.1 | 54.8 Number of similar metal springs: 18 Customs tariff number: 73202081; Compression spring D-389A-06 Country of origin: DE, German; Compression spring D-389A-06 Product image - Compression springs D-389A-06 QR-Code: Compression spring D-389A-06
