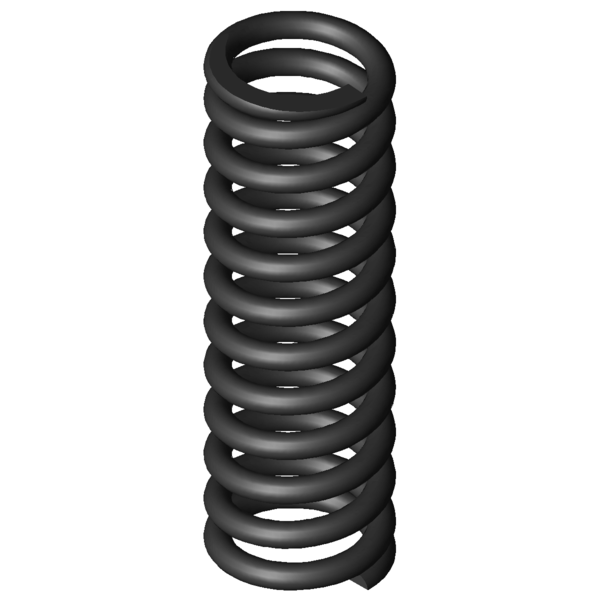

Home » Products » Compression springs » d-359a-04 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-359A-04 Spring steel Ø 5 x 29 x 107 mm Scaled prices - Compression spring D-359A-04 Quantity Single price [EUR] 1 12.7100 EUR 2 10.1200 EUR 3 5.6200 EUR 7 3.4700 EUR 17 2.1700 EUR 37 1.8100 EUR 75 1.7400 EUR 125 1.7081 EUR 175 1.7063 EUR 250 1.6746 EUR 350 1.6471 EUR Compression spring Buy Product image Compression spring D-359A-04 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-359A-04 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 29 mm Mean coil diameter De 34 mm Outer coil diameter Dd 23.1 mm maximum diameter of mandrel Dh 35.2 mm minimum diameter of bush L0 107 mm unstressed spring length Lk mm buckling length Fn 1030.618 N maximum force in static use Ln 67.52 mm Minimum length in static use sn 39.48 mm Maximum spring deflection in static use Fndyn 932.535 N maximum force in dynamic use Lndyn 71.28 mm Minimum length in dynamic use shdyn 19.23 mm Maximum stroke in dynamic use S 10.2 mm pitch of spring n 10 pc. number of active coils nt pc. total number of coils R 26.107 N/mm Spring rate Weight 169.6834 g weight of one spring Fntol 70.3 N (+/-) tolerance of maximum force in static use Fndtol 68.91 N (+/-) tolerance of maximum dynamic force Detol 0.4 mm (+/-) tolerances of outer coil diameter L0tol 2.07 mm (+/-) tolerance of unstressed spring length Price group AC - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-359A-04 Spring steel Ø 5 x 29 x 107 mm Datasheet download pdf file Metal spring characteristic Compression spring D-359A-04 Spring steel Ø 5 x 29 x 107 mm Metal spring characteristic download pdf file CAD data Compression spring D-359A-04 Spring steel Ø 5 x 29 x 107 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-359A-04 Spring steel Ø 5 x 29 x 107 mm force-path-calculation Compression spring D-359A-04 Inquiry formular Compression spring D-359A-04 Spring steel Ø 5 x 29 x 107 mm Inquiry formular Compression spring D-359A-04 Similar compression springs to Compression spring D-359A-04 Spring steel Ø 5 x 29 x 107 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-359A-04 EN 10270-1 5 34 107 1030.618 67.52 39.48 10 26.107 81.7 | 95.2 | 63.4 | 86.5 VD-359A-04 1.4310 5 34 107 885.194 67.52 39.48 10 22.423 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-268D 31 103 2.022 EN 10270-1 142.546 32.52 70.48 40.6 | 79.1 | 34.9 | 7.7 D-265 34.5 110 2.208 EN 10270-1 183.271 27 83 41.0 | 81.9 | 32.7 | 8.5 D-288K-12 33 100 2.842 EN 10270-1 187.134 34.15 65.85 44.0 | 82.2 | 39.1 | 10.9 D-288Z-22 33 108 3.596 EN 10270-1 252.141 37.88 70.13 43.2 | 83.0 | 34.5 | 11.9 D-298D 33 96 4.749 EN 10270-1 266.616 39.86 56.14 50.0 | 83.6 | 48.1 | 18.2 D-295 35.2 88.5 5.927 EN 10270-1 356.229 28.4 60.1 51.3 | 81.1 | 50.1 | 22.7 D-313J-05 31.6 92 9.17 EN 10270-1 443.507 43.64 48.36 60.4 | 83.6 | 62.3 | 35.1 D-327 36 120 9.364 EN 10270-1 667.955 48.66 71.34 61.3 | 87.9 | 60.1 | 35.9 D-326A 36 92 9.364 EN 10270-1 405.777 48.66 43.34 62.6 | 86.8 | 65.2 | 35.9 D-313J-10 28.6 109 9.523 EN 10270-1 507.228 55.73 53.27 59.4 | 88.8 | 58.0 | 31.5 D-339Q 32 97.7 21.144 EN 10270-1 830.558 58.42 39.28 77.6 | 90.9 | 71.7 | 70.1 D-359A-05 34 127 21.756 EN 10270-1 1043.672 79.03 47.97 89.5 | 94.8 | 90.5 | 83.3 D-357 37 110 22.86 EN 10270-1 1157.61 59.36 50.64 89.2 | 96.4 | 83.5 | 87.6 D-356A 37 94 22.86 EN 10270-1 791.848 59.36 34.64 87.7 | 93.2 | 82.3 | 87.6 D-359A-04 34 107 26.107 EN 10270-1 1030.618 67.52 39.48 81.7 | 95.2 | 63.4 | 86.5 D-364M 38 113 28.585 EN 10270-1 1194.538 71.21 41.79 91.1 | 91.7 | 90.4 | 91.3 D-362A 30 110 30.185 EN 10270-1 700.862 86.78 23.22 100.0 | 100.0 | 100.0 | 100.0 D-359A-03 34 88 32.634 EN 10270-1 1043.672 56.02 31.98 88.0 | 94.1 | 89.9 | 80.0 D-364R-49 33.6 125 39.687 EN 10270-1 1609.108 84.46 40.55 79.2 | 91.2 | 80.7 | 65.8 D-364R-06 39 102 45.006 EN 10270-1 1845.233 61 41 74.5 | 89.6 | 76.1 | 58.0 D-387 38.3 110 57.618 EN 10270-1 2098.612 73.58 36.42 68.2 | 88.5 | 70.7 | 45.3 D-389A-06 39 102 71.67 EN 10270-1 1717.915 78.03 23.97 60.8 | 85.7 | 60.4 | 36.4 D-389Q 34 107 130.811 EN 10270-1 2402.474 88.63 18.37 54.3 | 85.6 | 54.1 | 23.1 Number of similar metal springs: 22 Customs tariff number: 73202081; Compression spring D-359A-04 Country of origin: DE, German; Compression spring D-359A-04 Product image - Compression springs D-359A-04 QR-Code: Compression spring D-359A-04
