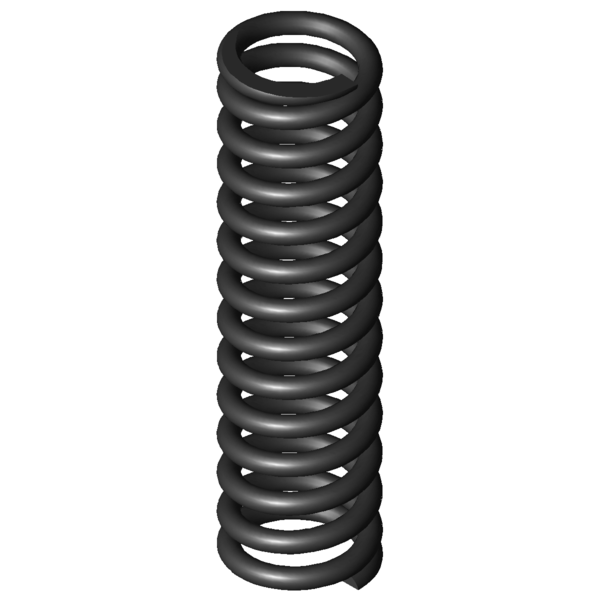

Home » Products » Compression springs » d-359a-05 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-359A-05 Spring steel Ø 5 x 29 x 127 mm Scaled prices - Compression spring D-359A-05 Quantity Single price [EUR] 1 12.9200 EUR 2 10.2900 EUR 3 5.8600 EUR 7 3.7100 EUR 17 2.3700 EUR 37 2.0000 EUR 75 1.9100 EUR 125 1.8670 EUR 175 1.8647 EUR 250 1.8186 EUR 350 1.7923 EUR Compression spring Buy Product image Compression spring D-359A-05 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-359A-05 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 29 mm Mean coil diameter De 34 mm Outer coil diameter Dd 23.1 mm maximum diameter of mandrel Dh 35.2 mm minimum diameter of bush L0 127 mm unstressed spring length Lk mm buckling length Fn 1043.672 N maximum force in static use Ln 79.03 mm Minimum length in static use sn 47.97 mm Maximum spring deflection in static use Fndyn 945.501 N maximum force in dynamic use Lndyn 83.54 mm Minimum length in dynamic use shdyn 22.84 mm Maximum stroke in dynamic use S 10.167 mm pitch of spring n 12 pc. number of active coils nt pc. total number of coils R 21.756 N/mm Spring rate Weight 197.964 g weight of one spring Fntol 68.9 N (+/-) tolerance of maximum force in static use Fndtol 67.5 N (+/-) tolerance of maximum dynamic force Detol 0.4 mm (+/-) tolerances of outer coil diameter L0tol 2.41 mm (+/-) tolerance of unstressed spring length Price group AD - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-359A-05 Spring steel Ø 5 x 29 x 127 mm Datasheet download pdf file Metal spring characteristic Compression spring D-359A-05 Spring steel Ø 5 x 29 x 127 mm Metal spring characteristic download pdf file CAD data Compression spring D-359A-05 Spring steel Ø 5 x 29 x 127 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-359A-05 Spring steel Ø 5 x 29 x 127 mm force-path-calculation Compression spring D-359A-05 Inquiry formular Compression spring D-359A-05 Spring steel Ø 5 x 29 x 127 mm Inquiry formular Compression spring D-359A-05 Similar compression springs to Compression spring D-359A-05 Spring steel Ø 5 x 29 x 127 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-359A-05 EN 10270-1 5 34 127 1043.672 79.03 47.97 12 21.756 100.0 | 100.0 | 100.0 | 100.0 VD-359A-05 1.4310 5 34 127 896.405 79.03 47.97 12 18.686 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-265 34.5 110 2.208 EN 10270-1 183.271 27 83 42.1 | 78.4 | 37.7 | 10.1 D-288Z-13 37 131 2.47 EN 10270-1 227.331 38.96 92.04 43.7 | 82.9 | 37.0 | 11.4 D-298E 33 148 2.99 EN 10270-1 264.505 59.54 88.46 45.3 | 82.3 | 39.8 | 13.7 D-288N 30 118 3.275 EN 10270-1 259.987 38.63 79.37 45.6 | 79.0 | 42.7 | 15.1 D-288Z-22 33 108 3.596 EN 10270-1 252.141 37.88 70.13 47.8 | 80.7 | 46.3 | 16.5 D-296 35.2 135 3.835 EN 10270-1 362.819 40.4 94.6 48.4 | 84.9 | 42.7 | 17.6 D-313JA 34 145 4.872 EN 10270-1 406.784 61.51 83.49 52.4 | 86.5 | 48.2 | 22.4 D-327A 36 141 5.896 EN 10270-1 403.35 72.58 68.42 56.5 | 88.2 | 54.4 | 27.1 D-324 37 135 7.639 EN 10270-1 621.215 53.68 81.32 61.0 | 88.7 | 59.3 | 35.1 D-333A 29 130 9.022 EN 10270-1 327.184 93.74 36.26 60.9 | 87.7 | 53.5 | 41.5 D-327 36 120 9.364 EN 10270-1 667.955 48.66 71.34 66.1 | 89.6 | 65.6 | 43.0 D-329B-05 30 125 12.365 EN 10270-1 756.24 63.84 61.16 73.7 | 88.9 | 75.4 | 56.8 D-333 29 130 13.353 EN 10270-1 855.528 65.93 64.07 75.8 | 87.7 | 78.4 | 61.4 D-359A-06 34 147 18.648 EN 10270-1 1052.995 90.53 56.47 91.1 | 95.5 | 92.0 | 85.7 D-359A-05 34 127 21.756 EN 10270-1 1043.672 79.03 47.97 100.0 | 100.0 | 100.0 | 100.0 D-359A-04 34 107 26.107 EN 10270-1 1030.618 67.52 39.48 89.5 | 94.8 | 90.5 | 83.3 D-363 30 125 32.6 EN 10270-1 1431.344 81.09 43.91 81.5 | 95.6 | 82.2 | 66.7 D-364R-08 39 127 36.005 EN 10270-1 1843.433 75.8 51.2 75.6 | 91.1 | 75.2 | 60.4 D-364R-49 33.6 125 39.687 EN 10270-1 1609.108 84.46 40.55 75.0 | 95.5 | 74.7 | 54.8 D-389A-08 39 127 58.019 EN 10270-1 1958.865 93.24 33.76 62.2 | 87.3 | 61.8 | 37.5 D-364R-13 32 125 65.321 EN 10270-1 2296.468 89.84 35.16 61.5 | 92.0 | 59.4 | 33.3 D-364RB 28 125 66.03 EN 10270-1 1903.357 96.17 28.83 60.1 | 90.0 | 57.5 | 33.0 D-389Q 34 107 130.811 EN 10270-1 2402.474 88.63 18.37 47.6 | 85.2 | 40.9 | 16.6 Number of similar metal springs: 22 Customs tariff number: 73202081; Compression spring D-359A-05 Country of origin: DE, German; Compression spring D-359A-05 Product image - Compression springs D-359A-05 QR-Code: Compression spring D-359A-05
