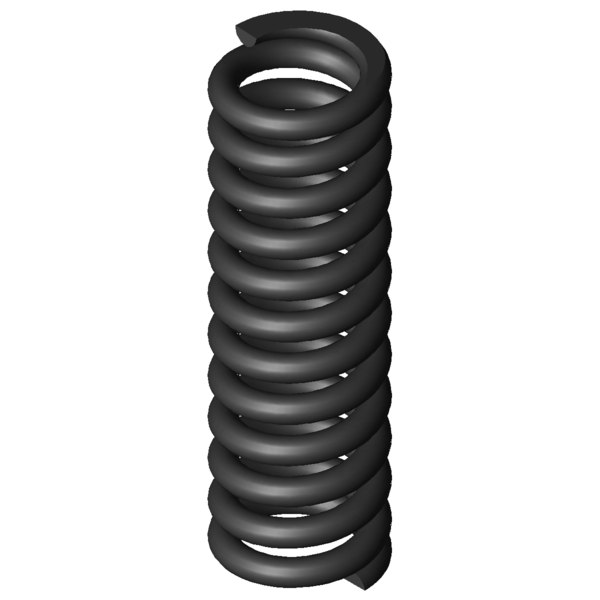

Home » Products » Compression springs » d-389a-08 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-389A-08 Spring steel Ø 6.7 x 32.3 x 127 mm Scaled prices - Compression spring D-389A-08 Quantity Single price [EUR] 1 14.9000 EUR 2 11.8700 EUR 3 7.7300 EUR 7 5.7700 EUR 17 4.1600 EUR 37 3.5700 EUR 75 3.5200 EUR 125 3.5057 EUR 175 3.4790 EUR 250 3.4039 EUR 350 3.3561 EUR Compression spring Buy Product image Compression spring D-389A-08 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-389A-08 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 6.7 mm Wire diameter Di mm Inner coil diameter D 32.3 mm Mean coil diameter De 39 mm Outer coil diameter Dd 24.6 mm maximum diameter of mandrel Dh 40.2 mm minimum diameter of bush L0 127 mm unstressed spring length Lk mm buckling length Fn 1958.865 N maximum force in static use Ln 93.24 mm Minimum length in static use sn 33.76 mm Maximum spring deflection in static use Fndyn 1683.13 N maximum force in dynamic use Lndyn 97.99 mm Minimum length in dynamic use shdyn 17.47 mm Maximum stroke in dynamic use S 11.457 mm pitch of spring n 10.5 pc. number of active coils nt pc. total number of coils R 58.019 N/mm Spring rate Weight 353.4942 g weight of one spring Fntol 159 N (+/-) tolerance of maximum force in static use Fndtol 155 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 2.24 mm (+/-) tolerance of unstressed spring length Price group AM - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-389A-08 Spring steel Ø 6.7 x 32.3 x 127 mm Datasheet download pdf file Metal spring characteristic Compression spring D-389A-08 Spring steel Ø 6.7 x 32.3 x 127 mm Metal spring characteristic download pdf file CAD data Compression spring D-389A-08 Spring steel Ø 6.7 x 32.3 x 127 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-389A-08 Spring steel Ø 6.7 x 32.3 x 127 mm force-path-calculation Compression spring D-389A-08 Inquiry formular Compression spring D-389A-08 Spring steel Ø 6.7 x 32.3 x 127 mm Inquiry formular Compression spring D-389A-08 Similar compression springs to Compression spring D-389A-08 Spring steel Ø 6.7 x 32.3 x 127 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-389A-08 EN 10270-1 6.7 39 127 1958.865 93.24 33.76 10.5 58.019 100.0 | 100.0 | 100.0 | 100.0 VD-389A-08 1.4310 6.7 39 127 1682.46 93.24 33.76 10.5 49.832 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-351B 45 130 11.054 EN 10270-1 731.563 63.82 66.18 49.9 | 86.3 | 44.2 | 19.1 D-357A 37 144 14.393 EN 10270-1 800.314 88.4 55.6 53.8 | 85.9 | 50.8 | 24.8 D-359A-05 34 127 21.756 EN 10270-1 1043.672 79.03 47.97 62.2 | 87.3 | 61.8 | 37.5 D-364J-11 42 135 22.554 EN 10270-1 1443.45 71 64 63.9 | 89.7 | 63.2 | 38.9 D-357 37 110 22.86 EN 10270-1 1157.61 59.36 50.64 62.5 | 85.4 | 62.9 | 39.4 D-364R-93 39 152 27.214 EN 10270-1 1285.185 104.78 47.22 68.8 | 91.0 | 68.6 | 46.9 D-364M 38 113 28.585 EN 10270-1 1194.538 71.21 41.79 69.9 | 89.5 | 70.9 | 49.3 D-364R-09 39 152 30.004 EN 10270-1 1845.233 90.5 61.5 72.1 | 90.0 | 74.5 | 51.7 D-364R-08 39 127 36.005 EN 10270-1 1843.433 75.8 51.2 79.2 | 95.5 | 80.0 | 62.1 D-364R-07 39 115 39.38 EN 10270-1 1839.045 68.3 46.7 81.1 | 92.4 | 83.1 | 67.9 D-364R-49 33.6 125 39.687 EN 10270-1 1609.108 84.46 40.55 80.2 | 89.4 | 82.7 | 68.4 D-364R-06 39 102 45.006 EN 10270-1 1845.233 61 41 84.9 | 89.0 | 88.3 | 77.6 D-389A-09 39 152 46.861 EN 10270-1 1862.91 112.25 39.75 88.4 | 94.5 | 90.0 | 80.8 D-387 38.3 110 57.618 EN 10270-1 2098.612 73.58 36.42 95.1 | 92.9 | 93.0 | 99.3 D-389A-08 39 127 58.019 EN 10270-1 1958.865 93.24 33.76 100.0 | 100.0 | 100.0 | 100.0 D-389A-07 39 115 64.126 EN 10270-1 1883.135 85.63 29.37 93.0 | 96.9 | 91.6 | 90.5 D-364R-13 32 125 65.321 EN 10270-1 2296.468 89.84 35.16 89.8 | 90.0 | 90.7 | 88.8 D-389A-06 39 102 71.67 EN 10270-1 1717.915 78.03 23.97 84.6 | 93.4 | 79.4 | 81.0 D-414AF 42 130 124.903 EN 10270-1 4434.047 94.5 35.5 69.2 | 91.4 | 69.6 | 46.5 D-414AC 42 110 124.903 EN 10270-1 2168.015 92.64 17.36 68.4 | 87.7 | 70.9 | 46.5 Number of similar metal springs: 19 Customs tariff number: 73202081; Compression spring D-389A-08 Country of origin: DE, German; Compression spring D-389A-08 Product image - Compression springs D-389A-08 QR-Code: Compression spring D-389A-08
