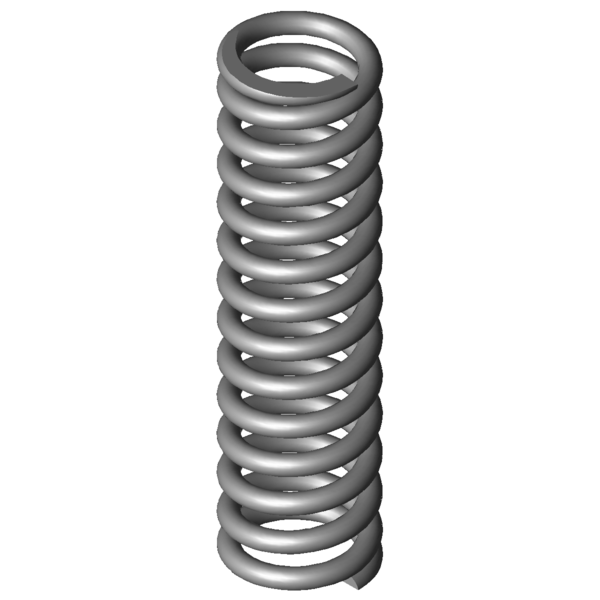

Home » Products » Compression springs » vd-359a-05 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-359A-05 Stainless steel Ø 5 x 29 x 127 mm Scaled prices - Compression spring VD-359A-05 Quantity Single price [EUR] 1 13.5300 EUR 2 10.7800 EUR 3 6.2300 EUR 7 4.2800 EUR 17 2.7100 EUR 37 2.3100 EUR 75 2.2200 EUR 125 2.2200 EUR 175 2.2200 EUR 250 2.2200 EUR 350 2.2200 EUR Compression spring Buy Product image Compression spring VD-359A-05 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-359A-05 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 29 mm Mean coil diameter De 34 mm Outer coil diameter Dd 23.1 mm maximum diameter of mandrel Dh 35.2 mm minimum diameter of bush L0 127 mm unstressed spring length Lk mm buckling length Fn 896.405 N maximum force in static use Ln 79.03 mm Minimum length in static use sn 47.97 mm Maximum spring deflection in static use Fndyn 812.087 N maximum force in dynamic use Lndyn 83.54 mm Minimum length in dynamic use shdyn 14.47 mm Maximum stroke in dynamic use S 10.167 mm pitch of spring n 12 pc. number of active coils nt pc. total number of coils R 18.686 N/mm Spring rate Weight 197.964 g weight of one spring Fntol 68.9 N (+/-) tolerance of maximum force in static use Fndtol 67.5 N (+/-) tolerance of maximum dynamic force Detol 0.4 mm (+/-) tolerances of outer coil diameter L0tol 2.41 mm (+/-) tolerance of unstressed spring length Price group #AG - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-359A-05 Stainless steel Ø 5 x 29 x 127 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-359A-05 Stainless steel Ø 5 x 29 x 127 mm Metal spring characteristic download pdf file CAD data Compression spring VD-359A-05 Stainless steel Ø 5 x 29 x 127 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-359A-05 Stainless steel Ø 5 x 29 x 127 mm force-path-calculation Compression spring VD-359A-05 Inquiry formular Compression spring VD-359A-05 Stainless steel Ø 5 x 29 x 127 mm Inquiry formular Compression spring VD-359A-05 Similar compression springs to Compression spring VD-359A-05 Stainless steel Ø 5 x 29 x 127 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-359A-05 1.4310 5 34 127 896.405 79.03 47.97 12 18.686 100.0 | 100.0 | 100.0 | 100.0 D-359A-05 EN 10270-1 5 34 127 1043.672 79.03 47.97 12 21.756 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-265 34.5 110 1.897 1.4310 159.686 25.8 84.2 42.0 | 78.4 | 37.4 | 10.1 VD-288Z-13 37 131 2.121 1.4310 195.254 38.96 92.04 43.7 | 82.9 | 37.0 | 11.4 VD-298E 33 148 2.568 1.4310 227.182 59.54 88.46 45.3 | 82.3 | 39.8 | 13.7 VD-288N 30 118 2.813 1.4310 223.302 38.63 79.37 45.6 | 79.0 | 42.7 | 15.1 VD-288Z-22 33 108 3.088 1.4310 216.563 37.88 70.13 47.8 | 80.7 | 46.3 | 16.5 VD-296 35.2 135 3.294 1.4310 311.624 40.4 94.6 48.4 | 84.9 | 42.7 | 17.6 VD-313JA 34 145 4.185 1.4310 349.385 61.51 83.49 52.4 | 86.5 | 48.2 | 22.4 VD-327A 36 141 5.064 1.4310 346.435 72.58 68.42 56.5 | 88.2 | 54.4 | 27.1 VD-324 37 135 6.561 1.4310 533.559 53.68 81.32 61.0 | 88.7 | 59.3 | 35.1 VD-333A 29 130 7.749 1.4310 281.017 93.74 36.26 60.9 | 87.7 | 53.5 | 41.5 VD-327 36 120 8.042 1.4310 573.704 48.66 71.34 66.1 | 89.6 | 65.6 | 43.0 VD-329B-05 30 125 10.621 1.4310 649.531 63.84 61.16 73.7 | 88.9 | 75.4 | 56.8 VD-333 29 130 11.469 1.4310 734.81 65.93 64.07 75.8 | 87.7 | 78.4 | 61.4 VD-359A-06 34 147 16.016 1.4310 904.413 90.53 56.47 91.1 | 95.5 | 92.0 | 85.7 VD-359A-05 34 127 18.686 1.4310 896.405 79.03 47.97 100.0 | 100.0 | 100.0 | 100.0 VD-359A-04 34 107 22.423 1.4310 885.194 67.52 39.48 89.5 | 94.8 | 90.5 | 83.3 VD-363 30 125 28 1.4310 1229.375 81.09 43.91 81.5 | 95.6 | 82.2 | 66.7 VD-364R-08 39 127 30.924 1.4310 1629.703 74.3 52.7 74.9 | 91.1 | 73.0 | 60.4 VD-364R-49 33.6 125 34.087 1.4310 1382.056 84.46 40.55 75.0 | 95.5 | 74.7 | 54.8 VD-389A-08 39 127 49.832 1.4310 1682.46 93.24 33.76 62.2 | 87.3 | 61.8 | 37.5 VD-364R-13 32 125 56.104 1.4310 1972.426 89.84 35.16 61.5 | 92.0 | 59.4 | 33.3 VD-364RB 28 125 56.713 1.4310 1634.785 96.17 28.83 60.1 | 90.0 | 57.5 | 33.0 VD-389Q 34 107 112.353 1.4310 2063.474 88.63 18.37 47.6 | 85.2 | 40.9 | 16.6 Number of similar metal springs: 22 Customs tariff number: 73202081; Compression spring VD-359A-05 Country of origin: DE, German; Compression spring VD-359A-05 Product image - Compression springs VD-359A-05 QR-Code: Compression spring VD-359A-05
