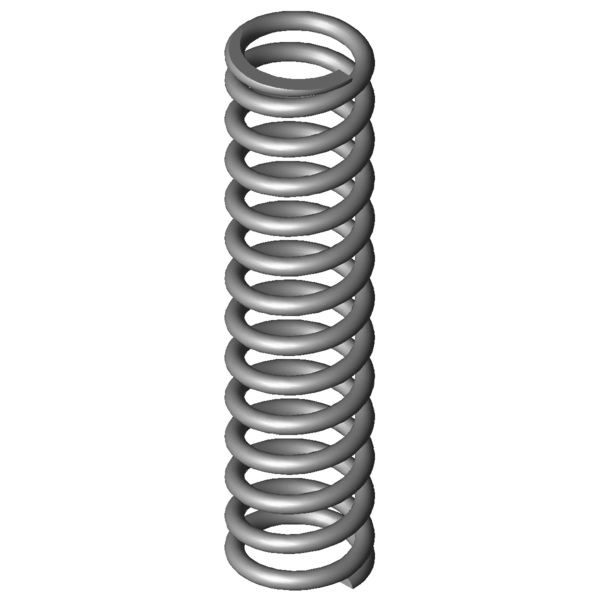

Home » Products » Compression springs » vd-329b-05 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-329B-05 Stainless steel Ø 4 x 26 x 125 mm Scaled prices - Compression spring VD-329B-05 Quantity Single price [EUR] 1 13.3600 EUR 2 10.6400 EUR 3 6.1500 EUR 7 4.0000 EUR 17 2.6100 EUR 37 2.2000 EUR 75 2.1400 EUR 125 2.1400 EUR 175 2.1400 EUR 250 2.1400 EUR 350 2.1400 EUR Compression spring Buy Product image Compression spring VD-329B-05 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-329B-05 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4 mm Wire diameter Di mm Inner coil diameter D 26 mm Mean coil diameter De 30 mm Outer coil diameter Dd 21.3 mm maximum diameter of mandrel Dh 31 mm minimum diameter of bush L0 125 mm unstressed spring length Lk mm buckling length Fn 649.531 N maximum force in static use Ln 63.84 mm Minimum length in static use sn 61.16 mm Maximum spring deflection in static use Fndyn 596.131 N maximum force in dynamic use Lndyn 68.87 mm Minimum length in dynamic use shdyn 10.16 mm Maximum stroke in dynamic use S 10.083 mm pitch of spring n 12 pc. number of active coils nt pc. total number of coils R 10.621 N/mm Spring rate Weight 113.5904 g weight of one spring Fntol 40.41 N (+/-) tolerance of maximum force in static use Fndtol 39.68 N (+/-) tolerance of maximum dynamic force Detol 0.4 mm (+/-) tolerances of outer coil diameter L0tol 2.32 mm (+/-) tolerance of unstressed spring length Price group #AF - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-329B-05 Stainless steel Ø 4 x 26 x 125 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-329B-05 Stainless steel Ø 4 x 26 x 125 mm Metal spring characteristic download pdf file CAD data Compression spring VD-329B-05 Stainless steel Ø 4 x 26 x 125 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-329B-05 Stainless steel Ø 4 x 26 x 125 mm force-path-calculation Compression spring VD-329B-05 Inquiry formular Compression spring VD-329B-05 Stainless steel Ø 4 x 26 x 125 mm Inquiry formular Compression spring VD-329B-05 Similar compression springs to Compression spring VD-329B-05 Stainless steel Ø 4 x 26 x 125 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-329B-05 1.4310 4 30 125 649.531 63.84 61.16 12 10.621 100.0 | 100.0 | 100.0 | 100.0 D-329B-05 EN 10270-1 4 30 125 756.24 63.84 61.16 12 12.365 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-234H 34 120 0.777 1.4310 77.429 20.32 99.68 40.7 | 78.1 | 36.6 | 7.3 VD-237 27 135 1.054 1.4310 107.942 32.6 102.4 41.9 | 77.5 | 38.2 | 9.9 VD-288N-10 30 135 1.62 1.4310 116.688 62.96 72.04 51.4 | 87.5 | 51.4 | 15.3 VD-268D 31 103 1.737 1.4310 122.432 32.52 70.48 49.9 | 80.6 | 52.8 | 16.4 VD-271 27.5 115 2.574 1.4310 203.824 35.8 79.2 53.5 | 82.1 | 54.3 | 24.2 VD-288N 30 118 2.813 1.4310 223.302 38.63 79.37 56.8 | 88.1 | 55.7 | 26.5 VD-302A 28.2 135 3.174 1.4310 184.287 76.94 58.06 60.1 | 88.9 | 61.7 | 29.9 VD-288Z-34 28 142 3.629 1.4310 329.654 51.16 90.84 59.6 | 85.5 | 59.0 | 34.2 VD-288Z-44 27 117 4.102 1.4310 271.318 50.85 66.15 64.0 | 86.2 | 67.1 | 38.6 VD-301A 28.2 113 4.35 1.4310 239.774 57.88 55.12 64.2 | 88.1 | 63.5 | 41.0 VD-302 28.2 135 4.698 1.4310 380.215 54.06 80.94 66.7 | 88.9 | 67.0 | 44.2 VD-333A 29 130 7.749 1.4310 281.017 93.74 36.26 74.0 | 97.6 | 51.3 | 73.0 VD-313J-10 28.6 109 8.179 1.4310 435.656 55.73 53.27 81.6 | 90.8 | 77.1 | 77.0 VD-313N 25 123 9.675 1.4310 497.891 71.54 51.46 87.4 | 90.6 | 80.4 | 91.1 VD-329B-05 30 125 10.621 1.4310 649.531 63.84 61.16 100.0 | 100.0 | 100.0 | 100.0 VD-333 29 130 11.469 1.4310 734.81 65.93 64.07 94.0 | 97.6 | 91.9 | 92.6 VD-334A-04 27 112 14.728 1.4310 684.869 65.5 46.5 83.6 | 93.2 | 85.4 | 72.1 VD-359A-05 34 127 18.686 1.4310 896.405 79.03 47.97 73.7 | 88.9 | 75.4 | 56.8 VD-362A 30 110 25.926 1.4310 601.968 86.78 23.22 65.2 | 89.3 | 65.3 | 41.0 VD-363 30 125 28 1.4310 1229.375 81.09 43.91 64.5 | 93.3 | 62.3 | 37.9 VD-364R-49 33.6 125 34.087 1.4310 1382.056 84.46 40.55 58.2 | 86.9 | 56.6 | 31.2 VD-364R 28 136 45.35 1.4310 1319.009 106.92 29.08 52.6 | 86.0 | 48.4 | 23.4 VD-364R-13 32 125 56.104 1.4310 1972.426 89.84 35.16 50.3 | 86.8 | 45.2 | 18.9 VD-364RB 28 125 56.713 1.4310 1634.785 96.17 28.83 50.1 | 88.3 | 43.4 | 18.7 VD-389AA 30 150 83.002 1.4310 2612.669 118.52 31.48 44.2 | 81.6 | 38.2 | 12.8 Number of similar metal springs: 24 Customs tariff number: 73202081; Compression spring VD-329B-05 Country of origin: DE, German; Compression spring VD-329B-05 Product image - Compression springs VD-329B-05 QR-Code: Compression spring VD-329B-05
