Compression spring VD-333 Stainless steel Ø 4 x 25 x 130 mm

Name: VD-333 - Compression springs
SKU: VD-333
Availability: InStock

Scaled prices - Compression spring VD-333

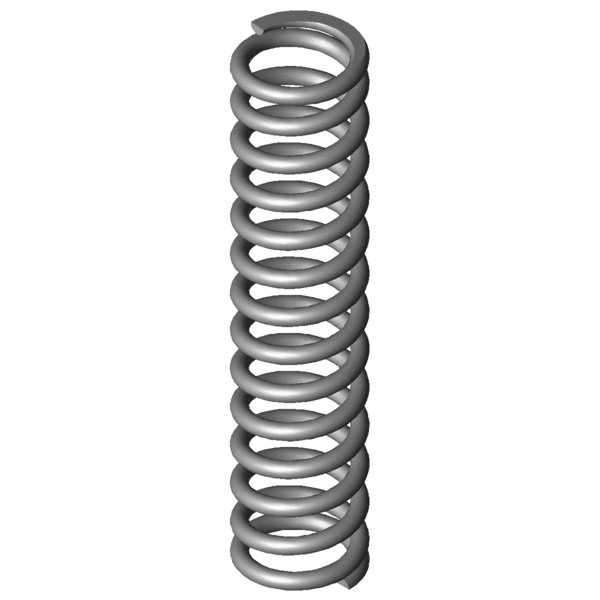

Product image Compression spring VD-333

Quantity:Quantity: Add to shopping cart

Formula symbols	Value	Unit	Description
Material	1.4310	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1	-	N	prestressed spring force
L1	-	mm	Prestressed spring length
s1	-	mm	Prestressed spring deflection
F2	-	N	Loaded spring force
L2	-	mm	Loaded spring length
s2	-	mm	Loaded spring deflection
d	4	mm	Wire diameter
Di	-	mm	Inner coil diameter
D	25	mm	Mean coil diameter
De	29	mm	Outer coil diameter
Dd	20.3	mm	maximum diameter of mandrel
Dh	30	mm	minimum diameter of bush
L0	130	mm	unstressed spring length
Lk		mm	buckling length
Fn	734.81	N	maximum force in static use
Ln	65.93	mm	Minimum length in static use
sn	64.07	mm	Maximum spring deflection in static use
Fndyn	614.154	N	maximum force in dynamic use
Lndyn	76.45	mm	Minimum length in dynamic use
shdyn	9.75	mm	Maximum stroke in dynamic use
S	10.08	mm	pitch of spring
n	12.5	pc.	number of active coils
nt	-	pc.	total number of coils
R	11.469	N/mm	Spring rate
Weight	113.1223	g	weight of one spring
Fntol	43.6	N	(+/-) tolerance of maximum force in static use
Fndtol	42.81	N	(+/-) tolerance of maximum dynamic force
Detol	0.35	mm	(+/-) tolerances of outer coil diameter
L0tol	2.3	mm	(+/-) tolerance of unstressed spring length
Price group	#AH	-	price group
F1tol	-	N	(+/-) tolerance of prestressed spring force
F2tol	-	N	(+/-) tolerance of loaded spring force
