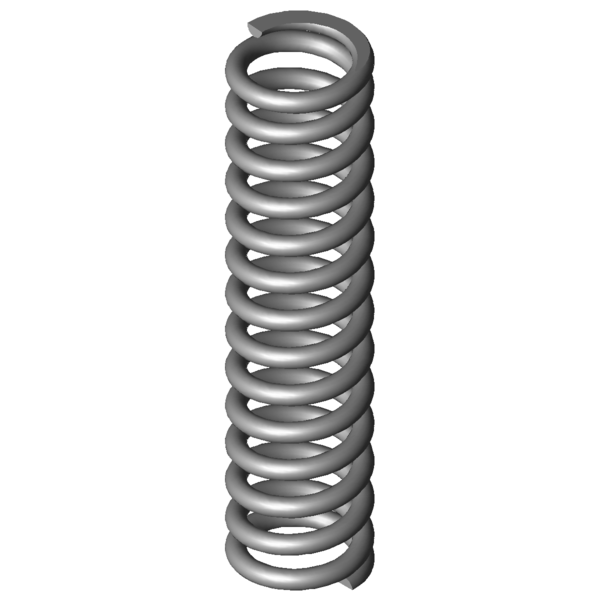

Home » Products » Compression springs » vd-334a-04 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-334A-04 Stainless steel Ø 4 x 23 x 112 mm Scaled prices - Compression spring VD-334A-04 Quantity Single price [EUR] 1 13.8800 EUR 2 11.0500 EUR 3 6.5900 EUR 7 4.6100 EUR 17 2.9500 EUR 37 2.4600 EUR 75 2.3800 EUR 125 2.3800 EUR 175 2.3800 EUR 250 2.3800 EUR 350 2.3800 EUR Compression spring Buy Product image Compression spring VD-334A-04 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-334A-04 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4 mm Wire diameter Di mm Inner coil diameter D 23 mm Mean coil diameter De 27 mm Outer coil diameter Dd 18.2 mm maximum diameter of mandrel Dh 28.1 mm minimum diameter of bush L0 112 mm unstressed spring length Lk mm buckling length Fn 684.869 N maximum force in static use Ln 65.5 mm Minimum length in static use sn 46.5 mm Maximum spring deflection in static use Fndyn 628.165 N maximum force in dynamic use Lndyn 69.35 mm Minimum length in dynamic use shdyn 8.6 mm Maximum stroke in dynamic use S 8.64 mm pitch of spring n 12.5 pc. number of active coils nt pc. total number of coils R 14.728 N/mm Spring rate Weight 104.0725 g weight of one spring Fntol 46.6 N (+/-) tolerance of maximum force in static use Fndtol 45.8 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 2.4 mm (+/-) tolerance of unstressed spring length Price group #AH - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-334A-04 Stainless steel Ø 4 x 23 x 112 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-334A-04 Stainless steel Ø 4 x 23 x 112 mm Metal spring characteristic download pdf file CAD data Compression spring VD-334A-04 Stainless steel Ø 4 x 23 x 112 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-334A-04 Stainless steel Ø 4 x 23 x 112 mm force-path-calculation Compression spring VD-334A-04 Inquiry formular Compression spring VD-334A-04 Stainless steel Ø 4 x 23 x 112 mm Inquiry formular Compression spring VD-334A-04 Similar compression springs to Compression spring VD-334A-04 Stainless steel Ø 4 x 23 x 112 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-334A-04 1.4310 4 27 112 684.869 65.5 46.5 12.5 14.728 100.0 | 100.0 | 100.0 | 100.0 D-334A-04 EN 10270-1 4 27 112 797.726 65.48 46.52 12.5 17.148 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-236 27 88.5 1.629 1.4310 107.927 22.25 66.25 43.5 | 76.3 | 43.0 | 11.1 VD-271 27.5 115 2.574 1.4310 203.824 35.8 79.2 49.2 | 86.0 | 44.2 | 17.5 VD-288N 30 118 2.813 1.4310 223.302 38.63 79.37 49.9 | 85.0 | 45.6 | 19.1 VD-288Z-44 27 117 4.102 1.4310 271.318 50.85 66.15 57.7 | 90.2 | 55.0 | 27.8 VD-301A 28.2 113 4.35 1.4310 239.774 57.88 55.12 60.3 | 91.6 | 59.7 | 29.5 VD-288Z-33 28 97 5.336 1.4310 321.756 36.71 60.29 61.4 | 86.0 | 62.1 | 36.2 VD-307A 23.2 105 6.199 1.4310 186.05 74.99 30.01 58.2 | 86.6 | 45.9 | 42.1 VD-301 28.2 94.5 6.908 1.4310 384.72 38.81 55.69 67.8 | 86.7 | 69.8 | 46.9 VD-313J-10 28.6 109 8.179 1.4310 435.656 55.73 53.27 75.0 | 93.9 | 75.5 | 55.5 VD-308A-05 22 113 8.369 1.4310 383.166 67.21 45.79 73.6 | 86.9 | 77.2 | 56.8 VD-307 23.2 105 9.175 1.4310 479.453 52.74 52.26 76.1 | 86.6 | 79.5 | 62.3 VD-313N 25 123 9.675 1.4310 497.891 71.54 51.46 79.5 | 91.2 | 81.5 | 65.7 VD-313M-03 25 101 11.535 1.4310 459.564 61.16 39.84 81.9 | 90.9 | 76.4 | 78.3 VD-313M-01 25 95 13.04 1.4310 522.457 54.93 40.07 86.3 | 89.1 | 81.2 | 88.5 VD-334A-04 27 112 14.728 1.4310 684.869 65.5 46.5 100.0 | 100.0 | 100.0 | 100.0 VD-338 24 105 22.4 1.4310 898.8 64.88 40.13 80.4 | 94.2 | 81.2 | 65.8 VD-362A 30 110 25.926 1.4310 601.968 86.78 23.22 71.7 | 89.4 | 68.9 | 56.8 VD-339V 22 110 43.193 1.4310 980.164 87.31 22.69 61.0 | 89.5 | 59.3 | 34.1 VD-364RB 28 125 56.713 1.4310 1634.785 96.17 28.83 54.6 | 85.8 | 51.9 | 26.0 Number of similar metal springs: 18 Customs tariff number: 73202081; Compression spring VD-334A-04 Country of origin: DE, German; Compression spring VD-334A-04 Product image - Compression springs VD-334A-04 QR-Code: Compression spring VD-334A-04
