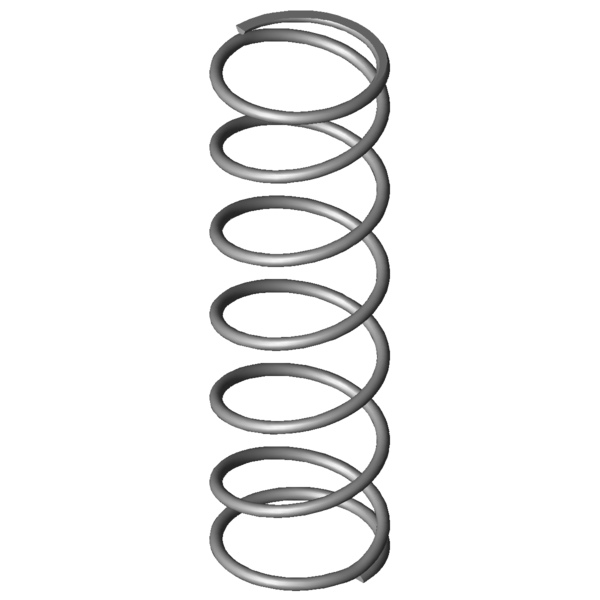

Home » Products » Compression springs » vd-236 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-236 Stainless steel Ø 2 x 25 x 88.5 mm Scaled prices - Compression spring VD-236 Quantity Single price [EUR] 1 5.2700 EUR 2 3.7200 EUR 3 3.5400 EUR 7 2.5100 EUR 17 1.2200 EUR 37 0.9000 EUR 75 0.7300 EUR 125 0.5070 EUR 175 0.4444 EUR 250 0.4132 EUR 350 0.3853 EUR 450 0.3536 EUR Compression spring Buy Product image Compression spring VD-236 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-236 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2 mm Wire diameter Di mm Inner coil diameter D 25 mm Mean coil diameter De 27 mm Outer coil diameter Dd 22.3 mm maximum diameter of mandrel Dh 28.6 mm minimum diameter of bush L0 88.5 mm unstressed spring length Lk mm buckling length Fn 107.927 N maximum force in static use Ln 22.25 mm Minimum length in static use sn 66.25 mm Maximum spring deflection in static use Fndyn 96.605 N maximum force in dynamic use Lndyn 29.2 mm Minimum length in dynamic use shdyn 15.18 mm Maximum stroke in dynamic use S 15.727 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 1.629 N/mm Spring rate Weight 14.6279 g weight of one spring Fntol 6.6 N (+/-) tolerance of maximum force in static use Fndtol 6.46 N (+/-) tolerance of maximum dynamic force Detol 0.45 mm (+/-) tolerances of outer coil diameter L0tol 3.09 mm (+/-) tolerance of unstressed spring length Price group K - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-236 Stainless steel Ø 2 x 25 x 88.5 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-236 Stainless steel Ø 2 x 25 x 88.5 mm Metal spring characteristic download pdf file CAD data Compression spring VD-236 Stainless steel Ø 2 x 25 x 88.5 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-236 Stainless steel Ø 2 x 25 x 88.5 mm force-path-calculation Compression spring VD-236 Inquiry formular Compression spring VD-236 Stainless steel Ø 2 x 25 x 88.5 mm Inquiry formular Compression spring VD-236 Similar compression springs to Compression spring VD-236 Stainless steel Ø 2 x 25 x 88.5 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-236 1.4310 2 27 88.5 107.927 22.25 66.25 5.5 1.629 100.0 | 100.0 | 100.0 | 100.0 D-236 EN 10270-1 2 27 88.5 125.184 22.5 66 5.5 1.897 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-207JN 26.5 105 0.334 1.4310 27.57 22.34 82.66 53.0 | 85.8 | 52.8 | 20.5 VD-207T 23.6 90 0.431 1.4310 25.462 30.9 59.1 57.1 | 88.6 | 56.4 | 26.4 VD-207JM 26.5 68.9 0.515 1.4310 27.519 15.51 53.39 52.7 | 85.8 | 52.2 | 20.1 VD-206B 24 93 0.529 1.4310 41.679 14.28 78.72 59.5 | 84.7 | 61.4 | 32.5 VD-207L-01 28 85 0.567 1.4310 38.83 16.47 68.53 64.0 | 90.8 | 66.3 | 34.8 VD-207M 28 106 0.567 1.4310 50.73 16.47 89.53 60.6 | 86.6 | 60.5 | 34.8 VD-239A-04 25 95.5 1.354 1.4310 93.985 26.07 69.43 89.8 | 95.1 | 91.3 | 83.1 VD-236 27 88.5 1.629 1.4310 107.927 22.25 66.25 100.0 | 100.0 | 100.0 | 100.0 VD-239A-20 23 94 1.778 1.4310 121.806 25.51 68.49 92.5 | 93.1 | 92.7 | 91.6 VD-263L 24 98.9 2.083 1.4310 142.516 30.47 68.43 84.8 | 89.8 | 86.3 | 78.2 VD-276A 22.5 93 3.165 1.4310 150.755 45.37 47.64 69.8 | 86.2 | 71.8 | 51.5 VD-270 27.5 74.5 3.977 1.4310 203.636 23.3 51.2 64.5 | 87.5 | 65.1 | 41.0 VD-273A-10 24 85 4.586 1.4310 237.531 33.2 51.8 61.9 | 88.3 | 61.8 | 35.5 VD-288Z-33 28 97 5.336 1.4310 321.756 36.71 60.29 59.2 | 84.8 | 62.3 | 30.5 VD-288Z-43 27 81.8 6.032 1.4310 273.249 36.5 45.3 55.8 | 86.4 | 53.9 | 27.0 VD-300A 28.2 79.4 6.181 1.4310 227.32 42.62 36.78 53.5 | 82.7 | 51.5 | 26.4 VD-301 28.2 94.5 6.908 1.4310 384.72 38.81 55.69 54.5 | 84.0 | 56.1 | 23.6 VD-313J-05 31.6 92 7.876 1.4310 380.927 43.64 48.36 50.1 | 79.1 | 50.7 | 20.7 VD-306A 23.2 92 8.495 1.4310 302.001 56.45 35.55 48.5 | 81.5 | 44.7 | 19.2 VD-313J-09 28.6 91.3 9.901 1.4310 435.699 47.29 44.01 48.1 | 82.3 | 45.6 | 16.5 VD-313M-03 25 101 11.535 1.4310 459.564 61.16 39.84 44.8 | 78.6 | 41.8 | 14.1 VD-313J-08 28.6 74.6 12.541 1.4310 448.306 38.85 35.75 43.4 | 78.1 | 39.0 | 13.0 VD-313M-01 25 95 13.04 1.4310 522.457 54.93 40.07 44.5 | 80.4 | 40.6 | 12.5 Number of similar metal springs: 22 Customs tariff number: 73202081; Compression spring VD-236 Country of origin: DE, German; Compression spring VD-236 Product image - Compression springs VD-236 QR-Code: Compression spring VD-236
