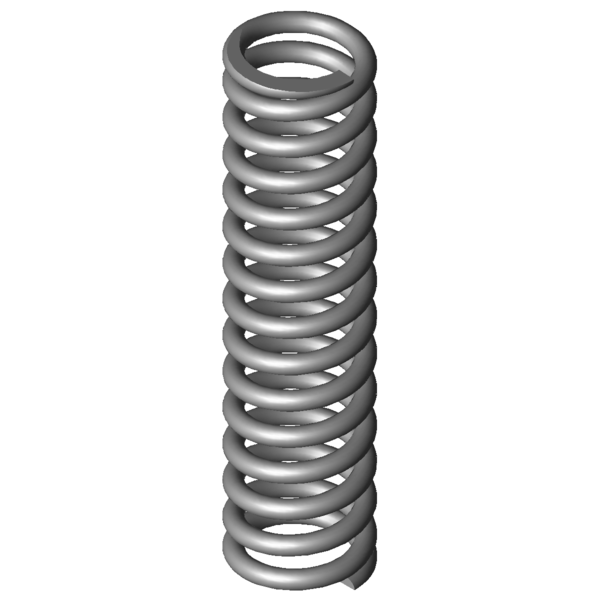

Home » Products » Compression springs » vd-313m-03 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-313M-03 Stainless steel Ø 3.6 x 21.4 x 101 mm Scaled prices - Compression spring VD-313M-03 Quantity Single price [EUR] 1 13.1800 EUR 2 10.5000 EUR 3 6.0600 EUR 7 3.9100 EUR 17 2.5400 EUR 37 2.1200 EUR 75 2.0700 EUR 125 2.0408 EUR 175 2.0281 EUR 250 1.9902 EUR 350 1.9446 EUR Compression spring Buy Product image Compression spring VD-313M-03 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-313M-03 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 3.6 mm Wire diameter Di mm Inner coil diameter D 21.4 mm Mean coil diameter De 25 mm Outer coil diameter Dd 17 mm maximum diameter of mandrel Dh 26 mm minimum diameter of bush L0 101 mm unstressed spring length Lk mm buckling length Fn 459.564 N maximum force in static use Ln 61.16 mm Minimum length in static use sn 39.84 mm Maximum spring deflection in static use Fndyn 418.274 N maximum force in dynamic use Lndyn 64.74 mm Minimum length in dynamic use shdyn 14.47 mm Maximum stroke in dynamic use S 7.492 mm pitch of spring n 13 pc. number of active coils nt pc. total number of coils R 11.535 N/mm Spring rate Weight 81.1391 g weight of one spring Fntol 36.66 N (+/-) tolerance of maximum force in static use Fndtol 35.94 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 2.1 mm (+/-) tolerance of unstressed spring length Price group AE - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-313M-03 Stainless steel Ø 3.6 x 21.4 x 101 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-313M-03 Stainless steel Ø 3.6 x 21.4 x 101 mm Metal spring characteristic download pdf file CAD data Compression spring VD-313M-03 Stainless steel Ø 3.6 x 21.4 x 101 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-313M-03 Stainless steel Ø 3.6 x 21.4 x 101 mm force-path-calculation Compression spring VD-313M-03 Inquiry formular Compression spring VD-313M-03 Stainless steel Ø 3.6 x 21.4 x 101 mm Inquiry formular Compression spring VD-313M-03 Similar compression springs to Compression spring VD-313M-03 Stainless steel Ø 3.6 x 21.4 x 101 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-313M-03 1.4310 3.6 25 101 459.564 61.16 39.84 13 11.535 100.0 | 100.0 | 100.0 | 100.0 D-313M-03 EN 10270-1 3.6 25 101 535.064 61.16 39.84 13 13.431 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-236 27 88.5 1.629 1.4310 107.927 22.25 66.25 44.8 | 78.6 | 41.8 | 14.1 VD-239A-20 23 94 1.778 1.4310 121.806 25.51 68.49 46.0 | 80.2 | 42.3 | 15.4 VD-242 22 94 2.059 1.4310 134.853 28.5 65.5 47.3 | 78.9 | 45.1 | 17.8 VD-263L 24 98.9 2.083 1.4310 142.516 30.47 68.43 49.2 | 85.0 | 44.6 | 18.1 VD-276B 22.5 103 3.165 1.4310 182.402 45.37 57.64 55.9 | 85.8 | 54.4 | 27.4 VD-276A 22.5 93 3.165 1.4310 150.755 45.37 47.64 56.5 | 83.8 | 58.2 | 27.4 VD-273A-10 24 85 4.586 1.4310 237.531 33.2 51.8 62.4 | 83.2 | 64.3 | 39.8 VD-288Z-33 28 97 5.336 1.4310 321.756 36.71 60.29 68.0 | 89.6 | 68.0 | 46.3 VD-307A 23.2 105 6.199 1.4310 186.05 74.99 30.01 68.1 | 92.6 | 57.9 | 53.7 VD-288S 20 101 6.819 1.4310 308.244 55.8 45.2 74.2 | 85.9 | 77.6 | 59.1 VD-301 28.2 94.5 6.908 1.4310 384.72 38.81 55.69 76.0 | 90.4 | 77.6 | 59.9 VD-306A 23.2 92 8.495 1.4310 302.001 56.45 35.55 80.7 | 90.9 | 77.5 | 73.6 VD-307 23.2 105 9.175 1.4310 479.453 52.74 52.26 86.1 | 92.6 | 86.0 | 79.5 VD-308A-04 22 95 10.228 1.4310 397.299 56.16 38.84 90.3 | 90.3 | 92.0 | 88.7 VD-313M-03 25 101 11.535 1.4310 459.564 61.16 39.84 100.0 | 100.0 | 100.0 | 100.0 VD-313M-01 25 95 13.04 1.4310 522.457 54.93 40.07 93.4 | 98.0 | 93.7 | 88.5 VD-313M-02 25 86 13.633 1.4310 451.804 52.86 33.14 90.1 | 95.0 | 90.7 | 84.6 VD-334A-04 27 112 14.728 1.4310 684.869 65.5 46.5 81.9 | 90.9 | 76.4 | 78.3 VD-338 24 105 22.4 1.4310 898.8 64.88 40.13 73.6 | 94.1 | 75.2 | 51.5 VD-339E 20 100 35.282 1.4310 787.218 77.69 22.31 59.8 | 89.7 | 57.2 | 32.7 VD-339V 22 110 43.193 1.4310 980.164 87.31 22.69 55.1 | 86.6 | 51.9 | 26.7 Number of similar metal springs: 20 Customs tariff number: 73202081; Compression spring VD-313M-03 Country of origin: DE, German; Compression spring VD-313M-03 Product image - Compression springs VD-313M-03 QR-Code: Compression spring VD-313M-03
