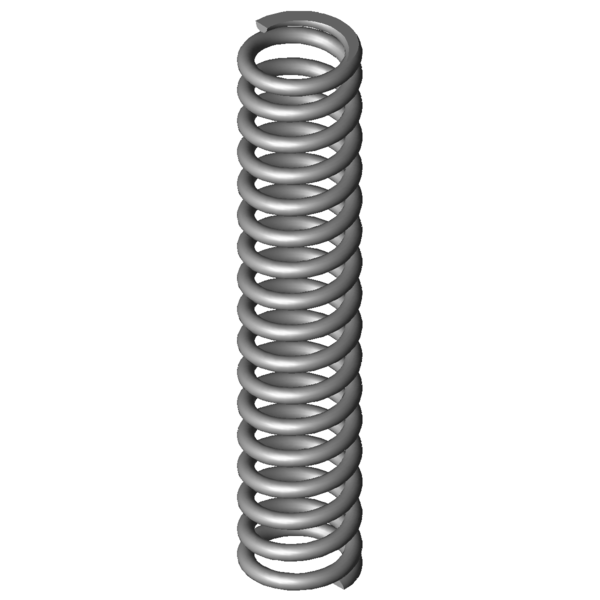

Home » Products » Compression springs » vd-288s Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-288S Stainless steel Ø 2.8 x 17.2 x 101 mm Scaled prices - Compression spring VD-288S Quantity Single price [EUR] 1 6.0600 EUR 2 4.2700 EUR 3 4.0700 EUR 7 3.2700 EUR 17 1.9600 EUR 37 1.5300 EUR 75 1.4100 EUR 125 1.1143 EUR 175 1.0455 EUR 250 0.9455 EUR 350 0.8716 EUR 450 0.8148 EUR Compression spring Buy Product image Compression spring VD-288S Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-288S Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.8 mm Wire diameter Di mm Inner coil diameter D 17.2 mm Mean coil diameter De 20 mm Outer coil diameter Dd 13.7 mm maximum diameter of mandrel Dh 20.9 mm minimum diameter of bush L0 101 mm unstressed spring length Lk 57.29 mm buckling length Fn 308.244 N maximum force in static use Ln 55.8 mm Minimum length in static use sn 45.2 mm Maximum spring deflection in static use Fndyn 285.036 N maximum force in dynamic use Lndyn 59.2 mm Minimum length in dynamic use shdyn 15.85 mm Maximum stroke in dynamic use S 6.335 mm pitch of spring n 15.5 pc. number of active coils nt pc. total number of coils R 6.819 N/mm Spring rate Weight 46.0259 g weight of one spring Fntol 22.29 N (+/-) tolerance of maximum force in static use Fndtol 21.89 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 2.13 mm (+/-) tolerance of unstressed spring length Price group Q - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-288S Stainless steel Ø 2.8 x 17.2 x 101 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-288S Stainless steel Ø 2.8 x 17.2 x 101 mm Metal spring characteristic download pdf file CAD data Compression spring VD-288S Stainless steel Ø 2.8 x 17.2 x 101 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-288S Stainless steel Ø 2.8 x 17.2 x 101 mm force-path-calculation Compression spring VD-288S Inquiry formular Compression spring VD-288S Stainless steel Ø 2.8 x 17.2 x 101 mm Inquiry formular Compression spring VD-288S Similar compression springs to Compression spring VD-288S Stainless steel Ø 2.8 x 17.2 x 101 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-288S 1.4310 2.8 20 101 308.244 55.8 45.2 15.5 6.819 100.0 | 100.0 | 100.0 | 100.0 D-288S EN 10270-1 2.8 20 101 358.884 55.8 45.2 15.5 7.939 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-232M-02 20 118 1.051 1.4310 85.836 36.31 81.69 46.8 | 83.3 | 41.6 | 15.4 VD-232M-01 20 100 1.219 1.4310 83.13 31.8 68.2 50.8 | 87.8 | 46.6 | 17.9 VD-242A 22 102 1.522 1.4310 105.38 32.75 69.25 53.1 | 87.1 | 49.7 | 22.3 VD-232M 20 86.3 1.604 1.4310 98.263 25.03 61.27 53.2 | 83.2 | 52.8 | 23.5 VD-247D 20.5 97 1.638 1.4310 98.001 37.17 59.83 55.3 | 88.3 | 53.7 | 24.0 VD-251A 18 98 1.848 1.4310 91.912 48.25 49.75 57.9 | 86.2 | 60.3 | 27.1 VD-242 22 94 2.059 1.4310 134.853 28.5 65.5 57.2 | 85.1 | 56.4 | 30.2 VD-263M-05 19 106 2.62 1.4310 153.251 47.51 58.49 63.8 | 89.6 | 63.5 | 38.4 VD-251 18 98 2.734 1.4310 168.164 36.5 61.5 63.4 | 86.2 | 64.0 | 40.1 VD-263M-04 19 95 2.981 1.4310 157.172 42.28 52.72 67.1 | 89.2 | 68.4 | 43.7 VD-276B 22.5 103 3.165 1.4310 182.402 45.37 57.64 69.1 | 92.1 | 68.8 | 46.4 VD-263VD 20 87.6 3.533 1.4310 172.463 38.78 48.82 71.9 | 89.6 | 74.3 | 51.8 VD-278B 20.5 95 4.689 1.4310 249.409 41.81 53.2 81.8 | 93.6 | 82.9 | 68.7 VD-282B 18.5 105 5.755 1.4310 319.111 49.55 55.45 88.7 | 92.7 | 89.1 | 84.4 VD-288S 20 101 6.819 1.4310 308.244 55.8 45.2 100.0 | 100.0 | 100.0 | 100.0 VD-288X-11 19.4 115 8.747 1.4310 468.411 61.45 53.55 82.3 | 93.8 | 75.1 | 78.0 VD-288X-10 19.4 102 9.501 1.4310 455.139 54.1 47.9 83.4 | 97.5 | 81.0 | 71.8 VD-308A-04 22 95 10.228 1.4310 397.299 56.16 38.84 79.7 | 90.8 | 81.8 | 66.7 VD-288X-09 19.4 89 11.98 1.4310 467.812 49.95 39.05 75.7 | 93.9 | 76.1 | 56.9 VD-288Z-64 17 101 13.962 1.4310 448.686 68.86 32.14 70.5 | 92.8 | 69.9 | 48.8 VD-313A-11 19.5 115 14.357 1.4310 641.222 70.34 44.66 70.3 | 90.1 | 73.4 | 47.5 VD-313A-10 19.5 102 15.747 1.4310 587.128 64.71 37.29 68.2 | 93.8 | 67.5 | 43.3 VD-313A-09 19.5 89 18.079 1.4310 574.647 57.22 31.78 63.3 | 90.2 | 62.0 | 37.7 VD-339E 20 100 35.282 1.4310 787.218 77.69 22.31 51.1 | 89.7 | 44.3 | 19.3 VD-339V-01 19 90 94.155 1.4310 1718.233 71.75 18.25 39.5 | 82.1 | 29.2 | 7.2 Number of similar metal springs: 24 Customs tariff number: 73202081; Compression spring VD-288S Country of origin: DE, German; Compression spring VD-288S Product image - Compression springs VD-288S QR-Code: Compression spring VD-288S
