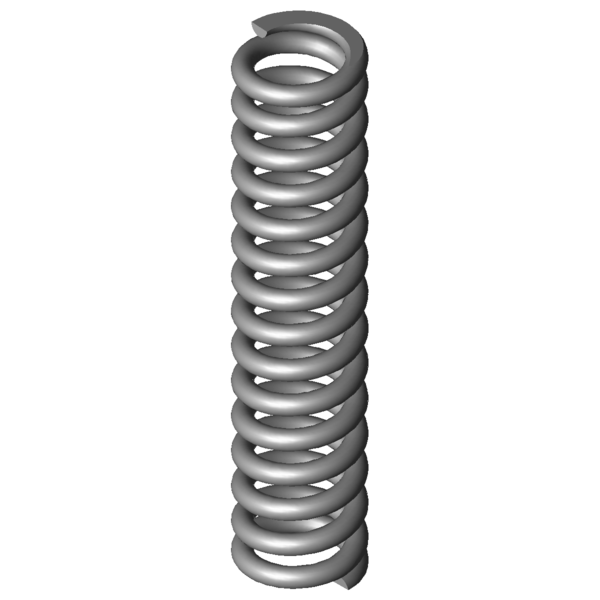

Home » Products » Compression springs » vd-313a-09 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-313A-09 Stainless steel Ø 3.3 x 16.2 x 89 mm Scaled prices - Compression spring VD-313A-09 Quantity Single price [EUR] 1 6.1900 EUR 2 4.3600 EUR 3 4.1600 EUR 7 3.3600 EUR 17 2.1300 EUR 37 1.6200 EUR 75 1.5200 EUR 125 1.2327 EUR 175 1.1268 EUR 250 1.0518 EUR 350 0.9700 EUR 450 0.9095 EUR Compression spring Buy Product image Compression spring VD-313A-09 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-313A-09 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 3.3 mm Wire diameter Di mm Inner coil diameter D 16.2 mm Mean coil diameter De 19.5 mm Outer coil diameter Dd 12.1 mm maximum diameter of mandrel Dh 20.3 mm minimum diameter of bush L0 89 mm unstressed spring length Lk 36.9 mm buckling length Fn 574.647 N maximum force in static use Ln 57.22 mm Minimum length in static use sn 31.78 mm Maximum spring deflection in static use Fndyn 519.603 N maximum force in dynamic use Lndyn 60.26 mm Minimum length in dynamic use shdyn 3.35 mm Maximum stroke in dynamic use S 6.348 mm pitch of spring n 13.5 pc. number of active coils nt pc. total number of coils R 18.079 N/mm Spring rate Weight 53.3328 g weight of one spring Fntol 46.31 N (+/-) tolerance of maximum force in static use Fndtol 45.35 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 1.72 mm (+/-) tolerance of unstressed spring length Price group R - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-313A-09 Stainless steel Ø 3.3 x 16.2 x 89 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-313A-09 Stainless steel Ø 3.3 x 16.2 x 89 mm Metal spring characteristic download pdf file CAD data Compression spring VD-313A-09 Stainless steel Ø 3.3 x 16.2 x 89 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-313A-09 Stainless steel Ø 3.3 x 16.2 x 89 mm force-path-calculation Compression spring VD-313A-09 Inquiry formular Compression spring VD-313A-09 Stainless steel Ø 3.3 x 16.2 x 89 mm Inquiry formular Compression spring VD-313A-09 Similar compression springs to Compression spring VD-313A-09 Stainless steel Ø 3.3 x 16.2 x 89 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-313A-09 1.4310 3.3 19.5 89 574.647 57.22 31.78 13.5 18.079 100.0 | 100.0 | 100.0 | 100.0 D-313A-09 EN 10270-1 3.3 19.5 89 669.054 57.22 31.78 13.5 21.05 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-263M-04 19 95 2.981 1.4310 157.172 42.28 52.72 48.7 | 85.9 | 43.8 | 16.5 VD-263M-03 19 80 3.458 1.4310 148.515 37.06 42.94 51.2 | 84.7 | 49.9 | 19.1 VD-263VD 20 87.6 3.533 1.4310 172.463 38.78 48.82 51.9 | 88.5 | 47.6 | 19.5 VD-282A 18.5 88 4.511 1.4310 132.086 58.72 29.28 57.4 | 89.8 | 57.6 | 24.9 VD-278B 20.5 95 4.689 1.4310 249.409 41.81 53.2 55.2 | 88.2 | 51.6 | 25.9 VD-282 18.5 88 6.676 1.4310 311.79 41.3 46.71 62.6 | 89.8 | 61.1 | 36.9 VD-283A-06 18 91 6.799 1.4310 319.066 44.07 46.93 62.6 | 88.6 | 61.6 | 37.6 VD-288X-10 19.4 102 9.501 1.4310 455.139 54.1 47.9 72.3 | 91.5 | 72.8 | 52.5 VD-288Z-53 21 86.3 9.722 1.4310 359.965 49.28 37.03 73.9 | 93.6 | 74.2 | 53.8 VD-288Z-40 19.5 85 10.881 1.4310 317.469 55.82 29.18 76.4 | 95.5 | 73.5 | 60.2 VD-288X-09 19.4 89 11.98 1.4310 467.812 49.95 39.05 81.1 | 95.8 | 81.4 | 66.3 VD-288X-08 19.4 76 14.502 1.4310 469.136 43.65 32.35 87.0 | 90.9 | 89.9 | 80.2 VD-313A-10 19.5 102 15.747 1.4310 587.128 64.71 37.29 91.5 | 95.8 | 91.5 | 87.1 VD-312 19.2 83.5 17.92 1.4310 566.272 51.9 31.6 98.2 | 96.4 | 99.0 | 99.1 VD-313A-09 19.5 89 18.079 1.4310 574.647 57.22 31.78 100.0 | 100.0 | 100.0 | 100.0 VD-313A-08 19.5 76 20.772 1.4310 526.487 50.65 25.35 89.3 | 95.1 | 85.7 | 87.1 VD-313R 18 90.6 31.754 1.4310 656.699 69.92 20.68 75.8 | 94.1 | 76.3 | 56.9 VD-339E 20 100 35.282 1.4310 787.218 77.69 22.31 70.8 | 89.7 | 71.6 | 51.2 VD-339A-05 21 85 36.475 1.4310 751.378 64.4 20.6 70.2 | 90.3 | 70.6 | 49.6 VD-339E-02 18 83 62.794 1.4310 1057.739 66.16 16.84 57.3 | 89.4 | 53.7 | 28.8 VD-339V-01 19 90 94.155 1.4310 1718.233 71.75 18.25 51.5 | 89.9 | 45.4 | 19.2 Number of similar metal springs: 20 Customs tariff number: 73202081; Compression spring VD-313A-09 Country of origin: DE, German; Compression spring VD-313A-09 Product image - Compression springs VD-313A-09 QR-Code: Compression spring VD-313A-09
