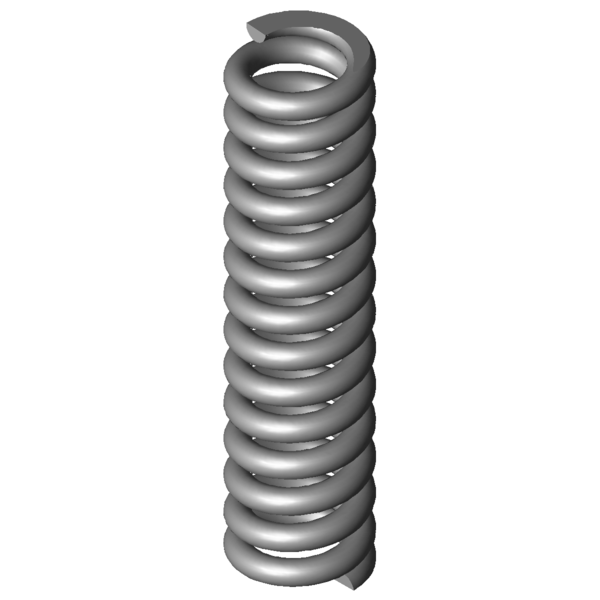

Home » Products » Compression springs » vd-339a-05 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-339A-05 Stainless steel Ø 4 x 17 x 85 mm Scaled prices - Compression spring VD-339A-05 Quantity Single price [EUR] 1 13.1800 EUR 2 10.5000 EUR 3 6.0600 EUR 7 3.9100 EUR 17 2.5400 EUR 37 2.1200 EUR 75 2.0700 EUR 125 2.0700 EUR 175 2.0700 EUR 250 2.0700 EUR 350 2.0700 EUR Compression spring Buy Product image Compression spring VD-339A-05 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-339A-05 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4 mm Wire diameter Di mm Inner coil diameter D 17 mm Mean coil diameter De 21 mm Outer coil diameter Dd 12.1 mm maximum diameter of mandrel Dh 22 mm minimum diameter of bush L0 85 mm unstressed spring length Lk mm buckling length Fn 751.378 N maximum force in static use Ln 64.4 mm Minimum length in static use sn 20.6 mm Maximum spring deflection in static use Fndyn 631.012 N maximum force in dynamic use Lndyn 67.7 mm Minimum length in dynamic use shdyn 6.8 mm Maximum stroke in dynamic use S 6.48 mm pitch of spring n 12.5 pc. number of active coils nt pc. total number of coils R 36.475 N/mm Spring rate Weight 76.9232 g weight of one spring Fntol 80.7 N (+/-) tolerance of maximum force in static use Fndtol 79 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 1.8 mm (+/-) tolerance of unstressed spring length Price group #AE - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-339A-05 Stainless steel Ø 4 x 17 x 85 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-339A-05 Stainless steel Ø 4 x 17 x 85 mm Metal spring characteristic download pdf file CAD data Compression spring VD-339A-05 Stainless steel Ø 4 x 17 x 85 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-339A-05 Stainless steel Ø 4 x 17 x 85 mm force-path-calculation Compression spring VD-339A-05 Inquiry formular Compression spring VD-339A-05 Stainless steel Ø 4 x 17 x 85 mm Inquiry formular Compression spring VD-339A-05 Similar compression springs to Compression spring VD-339A-05 Stainless steel Ø 4 x 17 x 85 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-339A-05 1.4310 4 21 85 751.378 64.4 20.6 12.5 36.475 56.4 | 88.3 | 53.0 | 28.0 D-339A-05 EN 10270-1 4 21 85 876.942 64.35 20.65 12.5 42.467 92.9 | 100.0 | 92.7 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-263M-03 19 80 3.458 1.4310 148.515 37.06 42.94 41.1 | 79.9 | 33.9 | 9.5 VD-263VD 20 87.6 3.533 1.4310 172.463 38.78 48.82 60.3 | 85.0 | 61.5 | 34.5 VD-282A 18.5 88 4.511 1.4310 132.086 58.72 29.28 46.2 | 82.4 | 44.0 | 12.4 VD-273A-10 24 85 4.586 1.4310 237.531 33.2 51.8 43.9 | 83.3 | 35.7 | 12.6 VD-278B 20.5 95 4.689 1.4310 249.409 41.81 53.2 68.1 | 90.4 | 67.9 | 45.8 VD-276 22.5 81.5 5.026 1.4310 255.594 30.65 50.85 68.9 | 87.2 | 70.4 | 49.1 VD-282 18.5 88 6.676 1.4310 311.79 41.3 46.71 47.8 | 82.4 | 42.8 | 18.3 VD-288Z-53 21 86.3 9.722 1.4310 359.965 49.28 37.03 93.8 | 93.3 | 93.0 | 95.0 VD-308A-04 22 95 10.228 1.4310 397.299 56.16 38.84 100.0 | 100.0 | 100.0 | 100.0 VD-288Z-40 19.5 85 10.881 1.4310 317.469 55.82 29.18 58.5 | 89.3 | 56.4 | 29.8 VD-288X-09 19.4 89 11.98 1.4310 467.812 49.95 39.05 59.0 | 86.8 | 57.5 | 32.8 VD-308A-03 22 82 12.007 1.4310 398.811 48.79 33.21 91.1 | 95.4 | 92.6 | 85.2 VD-312 19.2 83.5 17.92 1.4310 566.272 51.9 31.6 69.8 | 89.9 | 70.3 | 49.1 VD-313A-09 19.5 89 18.079 1.4310 574.647 57.22 31.78 70.2 | 90.3 | 70.6 | 49.6 VD-339A-05 21 85 36.475 1.4310 751.378 64.4 20.6 56.4 | 88.3 | 53.0 | 28.0 VD-339D-10 20 77 52.083 1.4310 1135 55.21 21.79 81.9 | 95.3 | 80.4 | 70.0 VD-339V-01 19 90 94.155 1.4310 1718.233 71.75 18.25 65.4 | 91.3 | 66.2 | 38.7 Number of similar metal springs: 16 Customs tariff number: 73202081; Compression spring VD-339A-05 Country of origin: DE, German; Compression spring VD-339A-05 Product image - Compression springs VD-339A-05 QR-Code: Compression spring VD-339A-05
