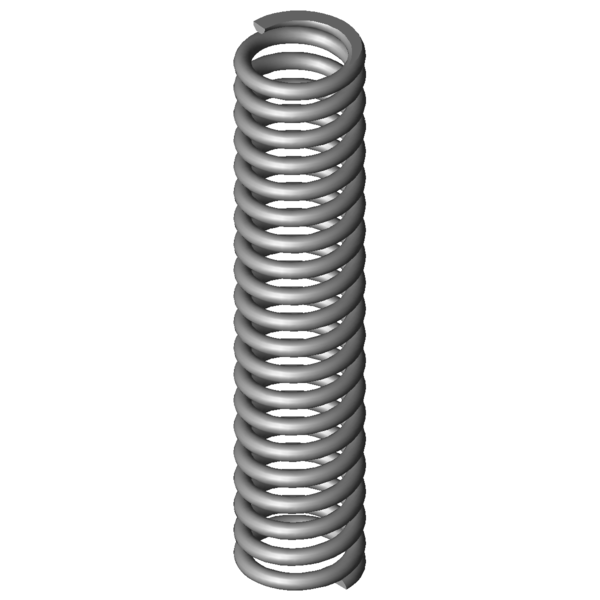

Home » Products » Compression springs » vd-282a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-282A Stainless steel Ø 2.5 x 16 x 88 mm Scaled prices - Compression spring VD-282A Quantity Single price [EUR] 1 5.5300 EUR 2 3.9000 EUR 3 3.7100 EUR 7 2.9000 EUR 17 1.4300 EUR 37 1.1000 EUR 75 0.9400 EUR 125 0.6511 EUR 175 0.6135 EUR 250 0.5760 EUR 350 0.5306 EUR 450 0.4927 EUR Compression spring Buy Product image Compression spring VD-282A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-282A Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.5 mm Wire diameter Di mm Inner coil diameter D 16 mm Mean coil diameter De 18.5 mm Outer coil diameter Dd 12.9 mm maximum diameter of mandrel Dh 19.3 mm minimum diameter of bush L0 88 mm unstressed spring length Lk 36.5 mm buckling length Fn 132.086 N maximum force in static use Ln 58.72 mm Minimum length in static use sn 29.28 mm Maximum spring deflection in static use Fndyn 115.201 N maximum force in dynamic use Lndyn 62.46 mm Minimum length in dynamic use shdyn 25.54 mm Maximum stroke in dynamic use S 4.622 mm pitch of spring n 18.5 pc. number of active coils nt pc. total number of coils R 4.511 N/mm Spring rate Weight 39.9829 g weight of one spring Fntol 14.95 N (+/-) tolerance of maximum force in static use Fndtol 14.66 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 2.41 mm (+/-) tolerance of unstressed spring length Price group M - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-282A Stainless steel Ø 2.5 x 16 x 88 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-282A Stainless steel Ø 2.5 x 16 x 88 mm Metal spring characteristic download pdf file CAD data Compression spring VD-282A Stainless steel Ø 2.5 x 16 x 88 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-282A Stainless steel Ø 2.5 x 16 x 88 mm force-path-calculation Compression spring VD-282A Inquiry formular Compression spring VD-282A Stainless steel Ø 2.5 x 16 x 88 mm Inquiry formular Compression spring VD-282A Similar compression springs to Compression spring VD-282A Stainless steel Ø 2.5 x 16 x 88 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-282A 1.4310 2.5 18.5 88 132.086 58.72 29.28 18.5 4.511 73.4 | 100.0 | 52.5 | 67.6 D-282A EN 10270-1 2.5 18.5 88 153.786 58.72 29.28 18.5 5.252 78.2 | 100.0 | 56.0 | 78.7 D-282 EN 10270-1 2.5 18.5 88 363.012 41.3 46.71 12.5 7.772 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 3 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-206D-16 20.4 85 0.577 1.4310 37.937 19.2 65.8 43.5 | 81.1 | 36.6 | 12.8 VD-183 17.25 94 0.614 1.4310 44.607 21.3 72.7 43.2 | 79.0 | 37.0 | 13.6 VD-207JY 18.5 87.5 0.721 1.4310 43.467 27.24 60.26 47.7 | 86.5 | 45.7 | 10.8 VD-207J-72 20 80 0.823 1.4310 49.426 19.95 60.05 46.8 | 81.1 | 46.8 | 12.3 VD-206D-03 17.4 83.3 0.965 1.4310 61.211 19.9 63.4 47.6 | 81.6 | 46.7 | 14.5 VD-207J-85 18.5 85 1.061 1.4310 69.498 19.48 65.52 49.4 | 85.5 | 46.8 | 15.9 VD-232M 20 86.3 1.604 1.4310 98.263 25.03 61.27 55.1 | 87.5 | 53.9 | 24.0 VD-215 17.6 77.5 1.647 1.4310 88.694 23.65 53.85 54.9 | 82.4 | 57.6 | 24.7 VD-251A 18 98 1.848 1.4310 91.912 48.25 49.75 59.5 | 89.0 | 61.7 | 27.7 VD-246 21 85 1.944 1.4310 107.027 29.94 55.06 59.0 | 88.2 | 59.6 | 29.1 VD-251 18 98 2.734 1.4310 168.164 36.5 61.5 65.0 | 89.0 | 64.9 | 41.0 VD-263M-04 19 95 2.981 1.4310 157.172 42.28 52.72 68.9 | 92.7 | 69.5 | 44.7 VD-263M-03 19 80 3.458 1.4310 148.515 37.06 42.94 71.2 | 92.1 | 69.8 | 51.8 VD-263VD 20 87.6 3.533 1.4310 172.463 38.78 48.82 74.4 | 94.7 | 75.5 | 52.9 VD-282A 18.5 88 4.511 1.4310 132.086 58.72 29.28 73.4 | 100.0 | 52.5 | 67.6 VD-263U-09 17 85 5.591 1.4310 252.412 39.85 45.15 88.5 | 92.8 | 88.8 | 83.8 VD-282 18.5 88 6.676 1.4310 311.79 41.3 46.71 100.0 | 100.0 | 100.0 | 100.0 VD-283A-06 18 91 6.799 1.4310 319.066 44.07 46.93 98.3 | 98.0 | 98.6 | 98.2 VD-288Z-53 21 86.3 9.722 1.4310 359.965 49.28 37.03 60.7 | 89.8 | 59.8 | 32.6 VD-288Z-40 19.5 85 10.881 1.4310 317.469 55.82 29.18 77.8 | 91.6 | 80.3 | 61.4 VD-288X-09 19.4 89 11.98 1.4310 467.812 49.95 39.05 57.6 | 89.4 | 57.1 | 26.4 VD-312 19.2 83.5 17.92 1.4310 566.272 51.9 31.6 62.8 | 89.8 | 61.4 | 37.2 VD-313A-09 19.5 89 18.079 1.4310 574.647 57.22 31.78 50.0 | 86.0 | 46.5 | 17.5 VD-288Z-09 15.5 89 26.082 1.4310 682.781 62.82 26.18 54.7 | 87.8 | 50.9 | 25.6 VD-313R 18 90.6 31.754 1.4310 656.699 69.92 20.68 51.6 | 88.0 | 45.9 | 21.0 VD-339A-05 21 85 36.475 1.4310 751.378 64.4 20.6 40.9 | 82.4 | 31.7 | 8.7 VD-339E-02 18 83 62.794 1.4310 1057.739 66.16 16.84 42.7 | 84.7 | 32.8 | 10.6 VD-339V-01 19 90 94.155 1.4310 1718.233 71.75 18.25 39.8 | 83.6 | 28.6 | 7.1 Number of similar metal springs: 27 Customs tariff number: 73202081; Compression spring VD-282A Country of origin: DE, German; Compression spring VD-282A Product image - Compression springs VD-282A QR-Code: Compression spring VD-282A
