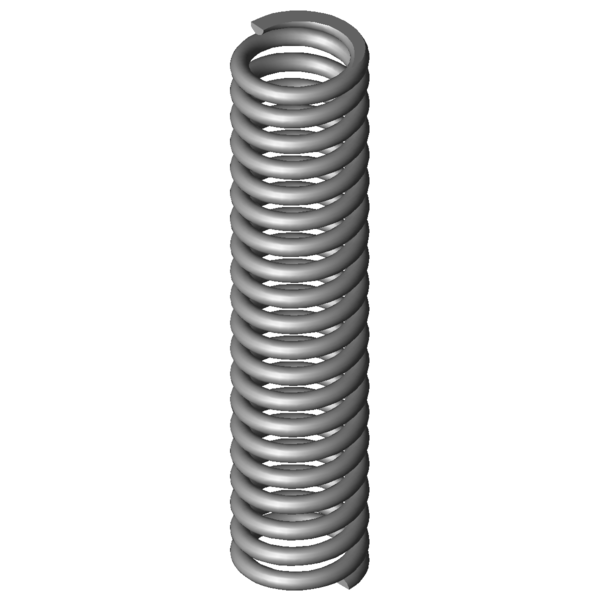

Home » Products » Compression springs » vd-333a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-333A Stainless steel Ø 4 x 25 x 130 mm Scaled prices - Compression spring VD-333A Quantity Single price [EUR] 1 13.8800 EUR 2 11.0500 EUR 3 6.5900 EUR 7 4.6100 EUR 17 2.9500 EUR 37 2.4600 EUR 75 2.3800 EUR 125 2.3800 EUR 175 2.3800 EUR 250 2.3800 EUR 350 2.3800 EUR Compression spring Buy Product image Compression spring VD-333A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-333A Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4 mm Wire diameter Di mm Inner coil diameter D 25 mm Mean coil diameter De 29 mm Outer coil diameter Dd 20.3 mm maximum diameter of mandrel Dh 30 mm minimum diameter of bush L0 130 mm unstressed spring length Lk mm buckling length Fn 281.017 N maximum force in static use Ln 93.74 mm Minimum length in static use sn 36.26 mm Maximum spring deflection in static use Fndyn 235.498 N maximum force in dynamic use Lndyn 99.61 mm Minimum length in dynamic use shdyn 30.39 mm Maximum stroke in dynamic use S 6.811 mm pitch of spring n 18.5 pc. number of active coils nt pc. total number of coils R 7.749 N/mm Spring rate Weight 159.9315 g weight of one spring Fntol 34.34 N (+/-) tolerance of maximum force in static use Fndtol 33.54 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 3.26 mm (+/-) tolerance of unstressed spring length Price group #AH - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-333A Stainless steel Ø 4 x 25 x 130 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-333A Stainless steel Ø 4 x 25 x 130 mm Metal spring characteristic download pdf file CAD data Compression spring VD-333A Stainless steel Ø 4 x 25 x 130 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-333A Stainless steel Ø 4 x 25 x 130 mm force-path-calculation Compression spring VD-333A Inquiry formular Compression spring VD-333A Stainless steel Ø 4 x 25 x 130 mm Inquiry formular Compression spring VD-333A Similar compression springs to Compression spring VD-333A Stainless steel Ø 4 x 25 x 130 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-333A 1.4310 4 29 130 281.017 93.74 36.26 18.5 7.749 100.0 | 100.0 | 100.0 | 100.0 D-333 EN 10270-1 4 29 130 855.528 65.93 64.07 12.5 13.353 42.0 | 78.4 | 41.2 | 6.5 D-333A EN 10270-1 4 29 130 327.184 93.74 36.26 18.5 9.022 40.2 | 78.4 | 32.4 | 9.7 Number of similar metal springs: 3 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-237A 27 135 0.717 1.4310 69.989 37.36 97.64 40.0 | 79.8 | 31.0 | 9.2 VD-232G 30 107 0.745 1.4310 66.179 18.13 88.87 38.8 | 74.7 | 32.2 | 9.6 VD-234N 30 115 0.75 1.4310 65.503 27.7 87.3 40.2 | 78.4 | 32.4 | 9.7 VD-234H 34 120 0.777 1.4310 77.429 20.32 99.68 39.3 | 75.9 | 32.0 | 10.0 VD-239A-05 25 139.5 0.921 1.4310 94.851 36.46 103.04 40.9 | 76.5 | 34.5 | 11.9 VD-237 27 135 1.054 1.4310 107.942 32.6 102.4 43.4 | 79.8 | 36.9 | 13.6 VD-288N-10 30 135 1.62 1.4310 116.688 62.96 72.04 51.5 | 87.7 | 45.9 | 20.9 VD-271 27.5 115 2.574 1.4310 203.824 35.8 79.2 58.1 | 81.9 | 59.2 | 33.2 VD-288N 30 118 2.813 1.4310 223.302 38.63 79.37 61.6 | 85.8 | 62.6 | 36.3 VD-302A 28.2 135 3.174 1.4310 184.287 76.94 58.06 65.4 | 91.2 | 64.0 | 41.0 VD-288Z-34 28 142 3.629 1.4310 329.654 51.16 90.84 65.7 | 87.7 | 62.6 | 46.8 VD-288Z-44 27 117 4.102 1.4310 271.318 50.85 66.15 71.5 | 86.0 | 75.7 | 52.9 VD-301A 28.2 113 4.35 1.4310 239.774 57.88 55.12 73.2 | 88.1 | 75.6 | 56.1 VD-302 28.2 135 4.698 1.4310 380.215 54.06 80.94 70.4 | 91.2 | 59.4 | 60.6 VD-333A 29 130 7.749 1.4310 281.017 93.74 36.26 100.0 | 100.0 | 100.0 | 100.0 VD-313J-10 28.6 109 8.179 1.4310 435.656 55.73 53.27 84.0 | 90.8 | 66.3 | 94.8 VD-313N 25 123 9.675 1.4310 497.891 71.54 51.46 77.9 | 90.3 | 63.5 | 80.1 VD-329B-05 30 125 10.621 1.4310 649.531 63.84 61.16 74.0 | 97.6 | 51.3 | 73.0 VD-333 29 130 11.469 1.4310 734.81 65.93 64.07 71.7 | 100.0 | 47.4 | 67.6 VD-334A-04 27 112 14.728 1.4310 684.869 65.5 46.5 68.4 | 93.1 | 59.5 | 52.6 VD-359A-05 34 127 18.686 1.4310 896.405 79.03 47.97 60.9 | 87.7 | 53.5 | 41.5 VD-362A 30 110 25.926 1.4310 601.968 86.78 23.22 57.4 | 87.1 | 55.4 | 29.9 VD-363 30 125 28 1.4310 1229.375 81.09 43.91 57.1 | 90.9 | 52.7 | 27.7 VD-364R-49 33.6 125 34.087 1.4310 1382.056 84.46 40.55 54.1 | 84.6 | 54.9 | 22.7 VD-364R 28 136 45.35 1.4310 1319.009 106.92 29.08 52.0 | 88.3 | 50.8 | 17.1 VD-364R-13 32 125 56.104 1.4310 1972.426 89.84 35.16 51.3 | 84.5 | 55.6 | 13.8 VD-364RB 28 125 56.713 1.4310 1634.785 96.17 28.83 50.0 | 88.0 | 48.3 | 13.7 VD-389AA 30 150 83.002 1.4310 2612.669 118.52 31.48 46.6 | 81.6 | 48.8 | 9.3 Number of similar metal springs: 27 Customs tariff number: 73202081; Compression spring VD-333A Country of origin: DE, German; Compression spring VD-333A Product image - Compression springs VD-333A QR-Code: Compression spring VD-333A
