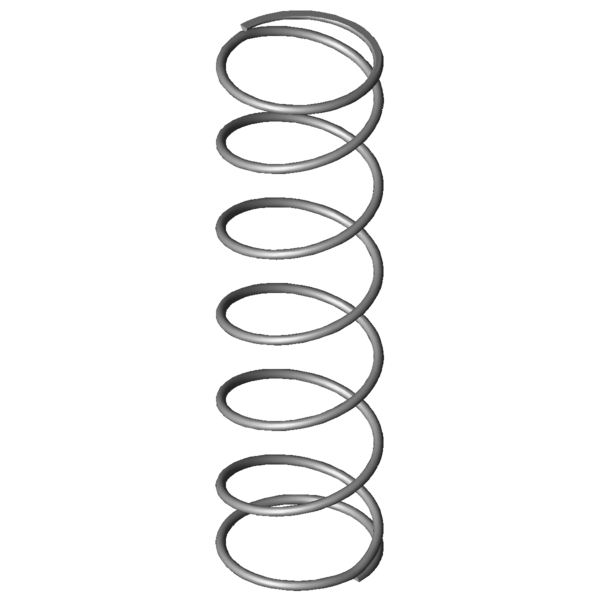

Home » Products » Compression springs » vd-232g Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-232G Stainless steel Ø 1.8 x 28.2 x 107 mm Scaled prices - Compression spring VD-232G Quantity Single price [EUR] 1 5.4200 EUR 2 3.8200 EUR 3 3.6400 EUR 7 2.6600 EUR 17 1.3800 EUR 37 1.0200 EUR 75 0.8900 EUR 125 0.5823 EUR 175 0.5445 EUR 250 0.4945 EUR 350 0.4610 EUR 450 0.4169 EUR Compression spring Buy Product image Compression spring VD-232G Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-232G Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.8 mm Wire diameter Di mm Inner coil diameter D 28.2 mm Mean coil diameter De 30 mm Outer coil diameter Dd 25.6 mm maximum diameter of mandrel Dh 32 mm minimum diameter of bush L0 107 mm unstressed spring length Lk mm buckling length Fn 66.179 N maximum force in static use Ln 18.13 mm Minimum length in static use sn 88.87 mm Maximum spring deflection in static use Fndyn 63.747 N maximum force in dynamic use Lndyn 21.4 mm Minimum length in dynamic use shdyn 27.49 mm Maximum stroke in dynamic use S 19.127 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 0.745 N/mm Spring rate Weight 13.3652 g weight of one spring Fntol 4.97 N (+/-) tolerance of maximum force in static use Fndtol 4.95 N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 5.34 mm (+/-) tolerance of unstressed spring length Price group L - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-232G Stainless steel Ø 1.8 x 28.2 x 107 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-232G Stainless steel Ø 1.8 x 28.2 x 107 mm Metal spring characteristic download pdf file CAD data Compression spring VD-232G Stainless steel Ø 1.8 x 28.2 x 107 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-232G Stainless steel Ø 1.8 x 28.2 x 107 mm force-path-calculation Compression spring VD-232G Inquiry formular Compression spring VD-232G Stainless steel Ø 1.8 x 28.2 x 107 mm Inquiry formular Compression spring VD-232G Similar compression springs to Compression spring VD-232G Stainless steel Ø 1.8 x 28.2 x 107 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-232G 1.4310 1.8 30 107 66.179 18.13 88.87 5.5 0.745 100.0 | 100.0 | 100.0 | 100.0 D-232G EN 10270-1 1.8 30 107 77.051 18.13 88.87 5.5 0.867 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-206A-21 34 103 0.078 1.4310 5.178 36.28 66.72 46.4 | 87.4 | 41.5 | 10.4 VD-207JG 34 107 0.235 1.4310 20.908 17.88 89.12 62.6 | 90.5 | 65.7 | 31.5 VD-207JN 26.5 105 0.334 1.4310 27.57 22.34 82.66 67.4 | 89.9 | 67.3 | 44.8 VD-207M 28 106 0.567 1.4310 50.73 16.47 89.53 85.9 | 93.8 | 88.0 | 76.1 VD-232G 30 107 0.745 1.4310 66.179 18.13 88.87 100.0 | 100.0 | 100.0 | 100.0 VD-234N 30 115 0.75 1.4310 65.503 27.7 87.3 97.4 | 94.3 | 98.6 | 99.2 VD-268A-05 32 100 1.331 1.4310 82.916 37.72 62.28 72.4 | 86.4 | 74.9 | 55.9 VD-268D 31 103 1.737 1.4310 122.432 32.52 70.48 66.0 | 88.3 | 66.7 | 42.9 VD-265 34.5 110 1.897 1.4310 159.686 25.8 84.2 64.3 | 85.4 | 68.1 | 39.3 VD-288K-12 33 100 2.441 1.4310 160.729 34.15 65.85 57.0 | 82.9 | 57.6 | 30.5 VD-271 27.5 115 2.574 1.4310 203.824 35.8 79.2 58.4 | 85.6 | 60.8 | 28.9 VD-288N 30 118 2.813 1.4310 223.302 38.63 79.37 57.0 | 85.0 | 59.5 | 26.5 VD-288Z-22 33 108 3.088 1.4310 216.563 37.88 70.13 54.1 | 83.3 | 54.7 | 24.1 VD-298D 33 96 4.079 1.4310 228.995 39.86 56.14 47.8 | 79.0 | 46.0 | 18.3 VD-288Z-44 27 117 4.102 1.4310 271.318 50.85 66.15 49.4 | 80.5 | 49.4 | 18.2 VD-301A 28.2 113 4.35 1.4310 239.774 57.88 55.12 47.9 | 81.6 | 44.8 | 17.1 VD-288Z-33 28 97 5.336 1.4310 321.756 36.71 60.29 46.5 | 81.3 | 44.2 | 14.0 VD-301 28.2 94.5 6.908 1.4310 384.72 38.81 55.69 43.4 | 79.5 | 39.9 | 10.8 VD-313J-05 31.6 92 7.876 1.4310 380.927 43.64 48.36 40.8 | 77.0 | 35.9 | 9.5 VD-313J-10 28.6 109 8.179 1.4310 435.656 55.73 53.27 42.6 | 81.2 | 37.6 | 9.1 Number of similar metal springs: 19 Customs tariff number: 73202081; Compression spring VD-232G Country of origin: DE, German; Compression spring VD-232G Product image - Compression springs VD-232G QR-Code: Compression spring VD-232G
