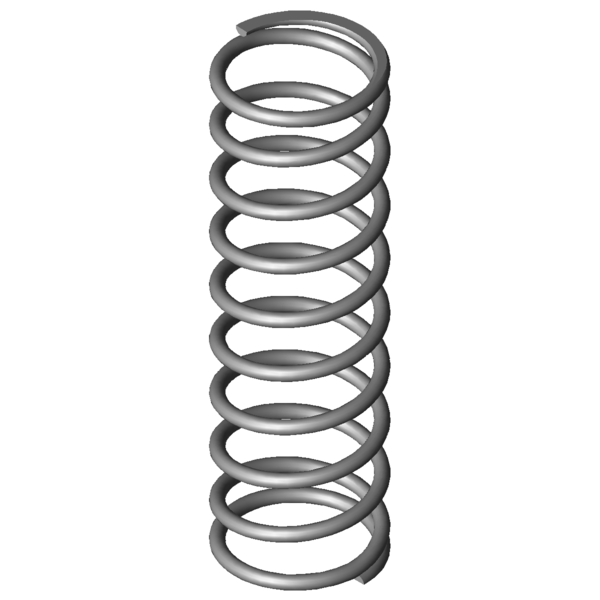

Home » Products » Compression springs » vd-288z-22 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-288Z-22 Stainless steel Ø 3 x 30 x 108 mm Scaled prices - Compression spring VD-288Z-22 Quantity Single price [EUR] 1 5.9700 EUR 2 4.2100 EUR 3 4.0100 EUR 7 3.2100 EUR 17 1.7700 EUR 37 1.3500 EUR 75 1.1900 EUR 125 0.9703 EUR 175 0.8890 EUR 250 0.8202 EUR 350 0.7705 EUR 450 0.7136 EUR Compression spring Buy Product image Compression spring VD-288Z-22 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-288Z-22 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 3 mm Wire diameter Di mm Inner coil diameter D 30 mm Mean coil diameter De 33 mm Outer coil diameter Dd 26.2 mm maximum diameter of mandrel Dh 34.2 mm minimum diameter of bush L0 108 mm unstressed spring length Lk mm buckling length Fn 216.563 N maximum force in static use Ln 37.88 mm Minimum length in static use sn 70.13 mm Maximum spring deflection in static use Fndyn 206.696 N maximum force in dynamic use Lndyn 41.07 mm Minimum length in dynamic use shdyn 26.79 mm Maximum stroke in dynamic use S 12.353 mm pitch of spring n 8.5 pc. number of active coils nt pc. total number of coils R 3.088 N/mm Spring rate Weight 55.2934 g weight of one spring Fntol 14.05 N (+/-) tolerance of maximum force in static use Fndtol 13.88 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 2.86 mm (+/-) tolerance of unstressed spring length Price group P - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-288Z-22 Stainless steel Ø 3 x 30 x 108 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-288Z-22 Stainless steel Ø 3 x 30 x 108 mm Metal spring characteristic download pdf file CAD data Compression spring VD-288Z-22 Stainless steel Ø 3 x 30 x 108 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-288Z-22 Stainless steel Ø 3 x 30 x 108 mm force-path-calculation Compression spring VD-288Z-22 Inquiry formular Compression spring VD-288Z-22 Stainless steel Ø 3 x 30 x 108 mm Inquiry formular Compression spring VD-288Z-22 Similar compression springs to Compression spring VD-288Z-22 Stainless steel Ø 3 x 30 x 108 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-288Z-22 1.4310 3 33 108 216.563 37.88 70.13 8.5 3.088 100.0 | 100.0 | 100.0 | 100.0 D-288Z-22 EN 10270-1 3 33 108 252.141 37.88 70.13 8.5 3.596 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-206A-21 34 103 0.078 1.4310 5.178 36.28 66.72 42.2 | 76.3 | 45.2 | 5.3 VD-207JB 35.5 115 0.205 1.4310 19.788 18.43 96.57 42.2 | 79.0 | 40.9 | 6.6 VD-207JG 34 107 0.235 1.4310 20.908 17.88 89.12 44.6 | 82.0 | 44.2 | 7.6 VD-207JN 26.5 105 0.334 1.4310 27.57 22.34 82.66 45.1 | 75.8 | 48.8 | 10.8 VD-207M 28 106 0.567 1.4310 50.73 16.47 89.53 49.3 | 78.8 | 50.9 | 18.3 VD-232G 30 107 0.745 1.4310 66.179 18.13 88.87 54.1 | 83.3 | 54.7 | 24.1 VD-234N 30 115 0.75 1.4310 65.503 27.7 87.3 54.5 | 83.8 | 55.3 | 24.3 VD-234H 34 120 0.777 1.4310 77.429 20.32 99.68 54.3 | 84.6 | 53.1 | 25.2 VD-268A-05 32 100 1.331 1.4310 82.916 37.72 62.28 91.0 | 87.8 | 94.9 | 90.4 VD-268D 31 103 1.737 1.4310 122.432 32.52 70.48 75.1 | 90.9 | 78.0 | 56.3 VD-265 34.5 110 1.897 1.4310 159.686 25.8 84.2 77.4 | 92.4 | 78.5 | 61.4 VD-288K-12 33 100 2.441 1.4310 160.729 34.15 65.85 73.5 | 91.9 | 68.4 | 60.3 VD-288N 30 118 2.813 1.4310 223.302 38.63 79.37 91.9 | 91.9 | 92.7 | 91.1 VD-288Z-22 33 108 3.088 1.4310 216.563 37.88 70.13 100.0 | 100.0 | 100.0 | 100.0 VD-298D 33 96 4.079 1.4310 228.995 39.86 56.14 65.0 | 90.8 | 68.0 | 36.1 VD-301A 28.2 113 4.35 1.4310 239.774 57.88 55.12 82.3 | 91.6 | 84.5 | 71.0 VD-313J-05 31.6 92 7.876 1.4310 380.927 43.64 48.36 63.4 | 88.1 | 62.9 | 39.2 VD-327 36 120 8.042 1.4310 573.704 48.66 71.34 64.0 | 85.6 | 68.0 | 38.4 VD-313J-10 28.6 109 8.179 1.4310 435.656 55.73 53.27 63.4 | 89.7 | 62.8 | 37.8 VD-334A-04 27 112 14.728 1.4310 684.869 65.5 46.5 51.4 | 84.4 | 49.0 | 21.0 VD-339Q 32 97.7 18.161 1.4310 713.362 58.42 39.28 48.3 | 84.7 | 43.2 | 17.0 VD-359A-05 34 127 18.686 1.4310 896.405 79.03 47.97 47.8 | 80.7 | 46.3 | 16.5 VD-357 37 110 19.634 1.4310 994.266 59.36 50.64 46.0 | 81.1 | 49.3 | 7.5 VD-359A-04 34 107 22.423 1.4310 885.194 67.52 39.48 46.5 | 85.4 | 40.4 | 13.8 VD-364M 38 113 24.552 1.4310 1025.983 71.21 41.79 42.2 | 79.3 | 41.2 | 6.0 VD-362A 30 110 25.926 1.4310 601.968 86.78 23.22 43.2 | 83.0 | 34.5 | 11.9 VD-359A-03 34 88 28.029 1.4310 896.405 56.02 31.98 41.8 | 79.5 | 34.9 | 11.0 VD-364R-49 33.6 125 34.087 1.4310 1382.056 84.46 40.55 41.7 | 79.4 | 36.7 | 9.1 VD-387 38.3 110 49.488 1.4310 1802.489 73.58 36.42 38.5 | 77.3 | 32.0 | 6.2 Number of similar metal springs: 28 Customs tariff number: 73202081; Compression spring VD-288Z-22 Country of origin: DE, German; Compression spring VD-288Z-22 Product image - Compression springs VD-288Z-22 QR-Code: Compression spring VD-288Z-22
