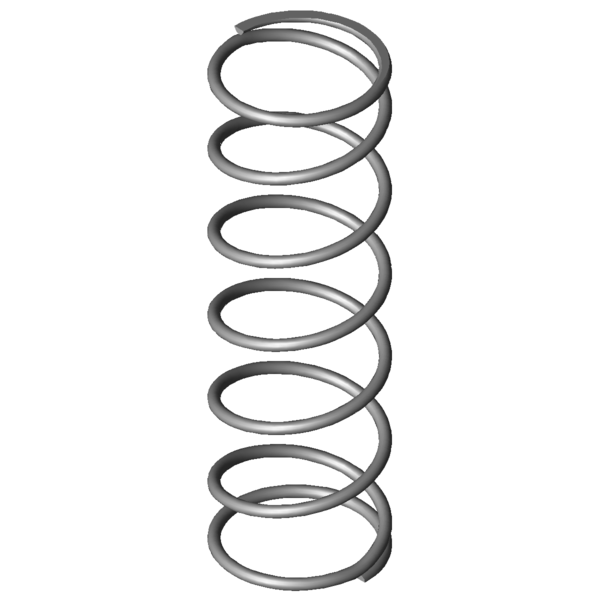

Home » Products » Compression springs » vd-265 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-265 Stainless steel Ø 2.5 x 32 x 110 mm Scaled prices - Compression spring VD-265 Quantity Single price [EUR] 1 5.2700 EUR 2 3.7200 EUR 3 3.5400 EUR 7 2.5100 EUR 17 1.2200 EUR 37 0.9000 EUR 75 0.7300 EUR 125 0.5070 EUR 175 0.4444 EUR 250 0.4132 EUR 350 0.3853 EUR 450 0.3536 EUR Compression spring Buy Product image Compression spring VD-265 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-265 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.5 mm Wire diameter Di mm Inner coil diameter D 32 mm Mean coil diameter De 34.5 mm Outer coil diameter Dd 28.7 mm maximum diameter of mandrel Dh 35.3 mm minimum diameter of bush L0 110 mm unstressed spring length Lk mm buckling length Fn 159.686 N maximum force in static use Ln 25.8 mm Minimum length in static use sn 84.2 mm Maximum spring deflection in static use Fndyn 143.376 N maximum force in dynamic use Lndyn 34.4 mm Minimum length in dynamic use shdyn 19.49 mm Maximum stroke in dynamic use S 19.545 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 1.897 N/mm Spring rate Weight 29.2558 g weight of one spring Fntol 10.18 N (+/-) tolerance of maximum force in static use Fndtol 10.1 N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 3.31 mm (+/-) tolerance of unstressed spring length Price group K - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-265 Stainless steel Ø 2.5 x 32 x 110 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-265 Stainless steel Ø 2.5 x 32 x 110 mm Metal spring characteristic download pdf file CAD data Compression spring VD-265 Stainless steel Ø 2.5 x 32 x 110 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-265 Stainless steel Ø 2.5 x 32 x 110 mm force-path-calculation Compression spring VD-265 Inquiry formular Compression spring VD-265 Stainless steel Ø 2.5 x 32 x 110 mm Inquiry formular Compression spring VD-265 Similar compression springs to Compression spring VD-265 Stainless steel Ø 2.5 x 32 x 110 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-265 1.4310 2.5 34.5 110 159.686 25.8 84.2 5.5 1.897 100.0 | 100.0 | 100.0 | 100.0 D-265 EN 10270-1 2.5 34.5 110 183.271 27 83 5.5 2.208 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-206A-21 34 103 0.078 1.4310 5.178 36.28 66.72 42.7 | 82.7 | 41.2 | 4.1 VD-207JB 35.5 115 0.205 1.4310 19.788 18.43 96.57 48.3 | 84.3 | 49.8 | 10.8 VD-207JG 34 107 0.235 1.4310 20.908 17.88 89.12 50.5 | 85.3 | 53.8 | 12.4 VD-232G 30 107 0.745 1.4310 66.179 18.13 88.87 64.3 | 85.4 | 68.1 | 39.3 VD-234N 30 115 0.75 1.4310 65.503 27.7 87.3 65.3 | 87.5 | 68.7 | 39.6 VD-234H 34 120 0.777 1.4310 77.429 20.32 99.68 65.8 | 90.1 | 66.5 | 41.0 VD-268A-05 32 100 1.331 1.4310 82.916 37.72 62.28 75.9 | 94.6 | 62.9 | 70.2 VD-268D 31 103 1.737 1.4310 122.432 32.52 70.48 88.8 | 94.5 | 80.2 | 91.6 VD-265 34.5 110 1.897 1.4310 159.686 25.8 84.2 100.0 | 100.0 | 100.0 | 100.0 VD-288K-12 33 100 2.441 1.4310 160.729 34.15 65.85 86.1 | 91.9 | 88.8 | 77.7 VD-288N 30 118 2.813 1.4310 223.302 38.63 79.37 80.0 | 89.8 | 82.9 | 67.4 VD-288Z-22 33 108 3.088 1.4310 216.563 37.88 70.13 77.4 | 92.4 | 78.5 | 61.4 VD-298D 33 96 4.079 1.4310 228.995 39.86 56.14 67.2 | 87.0 | 68.2 | 46.5 VD-301A 28.2 113 4.35 1.4310 239.774 57.88 55.12 65.1 | 85.7 | 66.0 | 43.6 VD-327 36 120 8.042 1.4310 573.704 48.66 71.34 54.4 | 83.3 | 56.3 | 23.6 VD-326A 36 92 8.042 1.4310 348.52 48.66 43.34 51.0 | 80.7 | 48.6 | 23.6 VD-313J-10 28.6 109 8.179 1.4310 435.656 55.73 53.27 52.3 | 83.8 | 50.0 | 23.2 VD-339Q 32 97.7 18.161 1.4310 713.362 58.42 39.28 41.3 | 79.0 | 34.5 | 10.4 VD-359A-05 34 127 18.686 1.4310 896.405 79.03 47.97 42.0 | 78.4 | 37.4 | 10.1 VD-357 37 110 19.634 1.4310 994.266 59.36 50.64 42.9 | 81.1 | 38.1 | 9.7 VD-359A-04 34 107 22.423 1.4310 885.194 67.52 39.48 41.0 | 81.9 | 32.5 | 8.5 VD-364M 38 113 24.552 1.4310 1025.983 71.21 41.79 39.4 | 77.9 | 32.6 | 7.7 VD-362A 30 110 25.926 1.4310 601.968 86.78 23.22 37.8 | 79.0 | 27.1 | 7.3 VD-364R-07 39 115 33.823 1.4310 1623.518 67 48 38.3 | 75.7 | 33.4 | 5.6 Number of similar metal springs: 23 Customs tariff number: 73202081; Compression spring VD-265 Country of origin: DE, German; Compression spring VD-265 Product image - Compression springs VD-265 QR-Code: Compression spring VD-265
