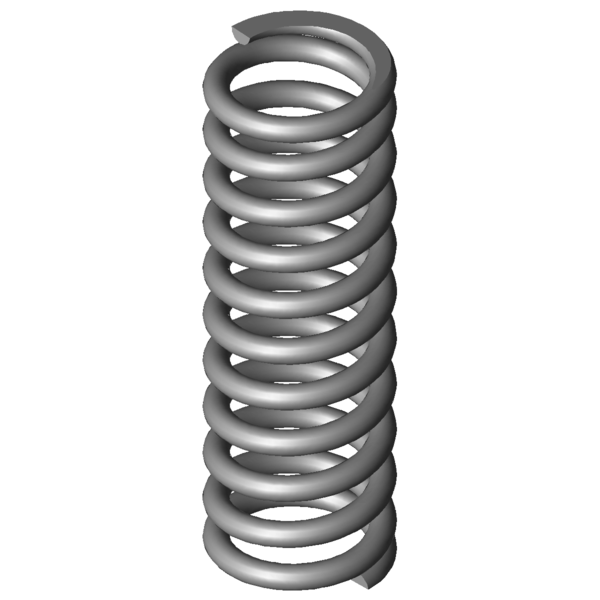

Home » Products » Compression springs » vd-339q Url teilen URL was copied to clipboard, successfully ! Overview Back to overview The Item has been added to your shopping cart. Compression spring VD-339Q Stainless steel Ø 4.5 x 27.5 x 97.7 mm Scaled prices - Compression spring VD-339Q Quantity Single price [EUR] 1 13.3600 EUR 2 10.6400 EUR 3 6.1500 EUR 7 4.0000 EUR 17 2.6100 EUR 37 2.2000 EUR 75 2.1400 EUR 125 2.1400 EUR 175 2.1400 EUR 250 2.1400 EUR 350 2.1400 EUR Compression spring Buy Product image Compression spring VD-339Q Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-339Q Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 - N prestressed spring force L1 - mm Prestressed spring length s1 - mm Prestressed spring deflection F2 - N Loaded spring force L2 - mm Loaded spring length s2 - mm Loaded spring deflection d 4.5 mm Wire diameter Di - mm Inner coil diameter D 27.5 mm Mean coil diameter De 32 mm Outer coil diameter Dd 22.1 mm maximum diameter of mandrel Dh 33.2 mm minimum diameter of bush L0 97.7 mm unstressed spring length Lk mm buckling length Fn 713.362 N maximum force in static use Ln 58.42 mm Minimum length in static use sn 39.28 mm Maximum spring deflection in static use Fndyn 652.701 N maximum force in dynamic use Lndyn 61.76 mm Minimum length in dynamic use shdyn 10.96 mm Maximum stroke in dynamic use S 9.811 mm pitch of spring n 9.5 pc. number of active coils nt - pc. total number of coils R 18.161 N/mm Spring rate Weight 124.9038 g weight of one spring Fntol 53.39 N (+/-) tolerance of maximum force in static use Fndtol 52.33 N (+/-) tolerance of maximum dynamic force Detol 0.4 mm (+/-) tolerances of outer coil diameter L0tol 1.94 mm (+/-) tolerance of unstressed spring length Price group #AF - price group F1tol - N (+/-) tolerance of prestressed spring force F2tol - N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-339Q Stainless steel Ø 4.5 x 27.5 x 97.7 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-339Q Stainless steel Ø 4.5 x 27.5 x 97.7 mm Metal spring characteristic download pdf file CAD data Compression spring VD-339Q Stainless steel Ø 4.5 x 27.5 x 97.7 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-339Q Stainless steel Ø 4.5 x 27.5 x 97.7 mm force-path-calculation Compression spring VD-339Q Inquiry formular Compression spring VD-339Q Stainless steel Ø 4.5 x 27.5 x 97.7 mm Inquiry formular Compression spring VD-339Q Similar compression springs to Compression spring VD-339Q Stainless steel Ø 4.5 x 27.5 x 97.7 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-339Q 1.4310 4.5 32 97.7 713.362 58.42 39.28 9.5 18.161 100.0 | 100.0 | 100.0 | 100.0 D-339Q EN 10270-1 4.5 32 97.7 830.558 58.42 39.28 9.5 21.144 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-268D 31 103 1.737 1.4310 122.432 32.52 70.48 42.8 | 82.4 | 36.4 | 9.6 VD-265 34.5 110 1.897 1.4310 159.686 25.8 84.2 41.3 | 79.0 | 34.5 | 10.4 VD-288K-12 33 100 2.441 1.4310 160.729 34.15 65.85 46.7 | 85.6 | 41.1 | 13.4 VD-288Z-22 33 108 3.088 1.4310 216.563 37.88 70.13 48.3 | 84.7 | 43.2 | 17.0 VD-298D 33 96 4.079 1.4310 228.995 39.86 56.14 54.1 | 88.8 | 51.0 | 22.5 VD-295 35.2 88.5 5.091 1.4310 305.964 28.4 60.1 55.5 | 84.2 | 54.1 | 28.0 VD-288Z-33 28 97 5.336 1.4310 321.756 36.71 60.29 56.3 | 84.5 | 55.1 | 29.4 VD-301 28.2 94.5 6.908 1.4310 384.72 38.81 55.69 61.9 | 85.3 | 62.2 | 38.0 VD-313J-05 31.6 92 7.876 1.4310 380.927 43.64 48.36 67.2 | 91.0 | 67.3 | 43.4 VD-326A 36 92 8.042 1.4310 348.52 48.66 43.34 68.2 | 90.6 | 69.7 | 44.3 VD-313J-10 28.6 109 8.179 1.4310 435.656 55.73 53.27 66.3 | 86.3 | 67.4 | 45.0 VD-313J-09 28.6 91.3 9.901 1.4310 435.699 47.29 44.01 72.4 | 87.6 | 75.2 | 54.5 VD-313M-01 25 95 13.04 1.4310 522.457 54.93 40.07 80.8 | 85.1 | 85.6 | 71.8 VD-332 29 89.5 16.866 1.4310 710.185 47.39 42.11 93.2 | 90.4 | 96.4 | 92.9 VD-339Q 32 97.7 18.161 1.4310 713.362 58.42 39.28 100.0 | 100.0 | 100.0 | 100.0 VD-356A 37 94 19.634 1.4310 680.115 59.36 34.64 91.7 | 90.9 | 91.8 | 92.5 VD-359A-04 34 107 22.423 1.4310 885.194 67.52 39.48 87.6 | 91.8 | 90.0 | 81.0 VD-362A 30 110 25.926 1.4310 601.968 86.78 23.22 77.6 | 90.9 | 71.7 | 70.1 VD-359A-03 34 88 28.029 1.4310 896.405 56.02 31.98 78.9 | 91.4 | 80.5 | 64.8 VD-364R-92 39 100 37.124 1.4310 1098.34 70.41 29.59 68.0 | 84.9 | 70.1 | 48.9 VD-362 30 87.5 41.176 1.4310 1200.551 58.34 29.16 67.3 | 91.1 | 66.8 | 44.1 VD-364Q 28 87.8 73.992 1.4310 1332.853 69.79 18.01 53.5 | 86.4 | 49.7 | 24.5 VD-389Q 34 107 112.353 1.4310 2063.474 88.63 18.37 46.7 | 83.2 | 40.7 | 16.2 Number of similar metal springs: 22 Customs tariff number: 73202081; Compression spring VD-339Q Country of origin: DE, German; Compression spring VD-339Q Product image - Compression springs VD-339Q QR-Code: Compression spring VD-339Q
