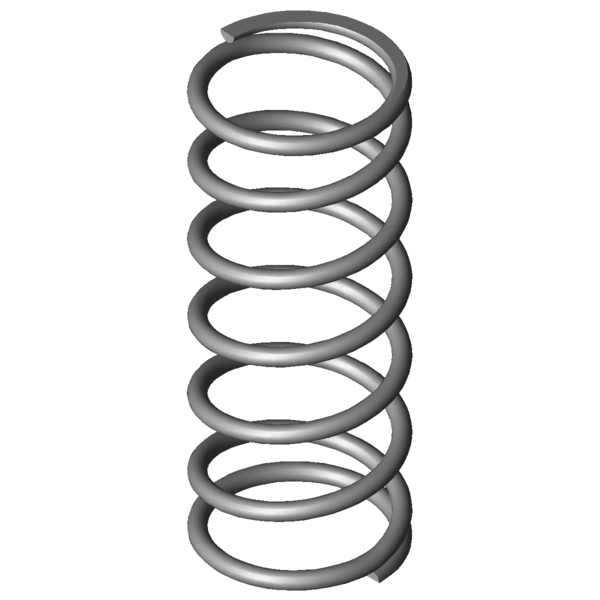

Home » Products » Compression springs » vd-295 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-295 Stainless steel Ø 3.2 x 32 x 88.5 mm Scaled prices - Compression spring VD-295 Quantity Single price [EUR] 1 5.9700 EUR 2 4.2100 EUR 3 4.0100 EUR 7 3.2100 EUR 17 1.7700 EUR 37 1.3500 EUR 75 1.1900 EUR 125 0.9703 EUR 175 0.8890 EUR 250 0.8202 EUR 350 0.7705 EUR 450 0.7136 EUR Compression spring Buy Product image Compression spring VD-295 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-295 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 3.2 mm Wire diameter Di mm Inner coil diameter D 32 mm Mean coil diameter De 35.2 mm Outer coil diameter Dd 27.8 mm maximum diameter of mandrel Dh 36.9 mm minimum diameter of bush L0 88.5 mm unstressed spring length Lk mm buckling length Fn 305.964 N maximum force in static use Ln 28.4 mm Minimum length in static use sn 60.1 mm Maximum spring deflection in static use Fndyn 273.382 N maximum force in dynamic use Lndyn 34.8 mm Minimum length in dynamic use shdyn 12.53 mm Maximum stroke in dynamic use S 15.509 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 5.091 N/mm Spring rate Weight 47.9326 g weight of one spring Fntol 17.92 N (+/-) tolerance of maximum force in static use Fndtol 17.72 N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 2.12 mm (+/-) tolerance of unstressed spring length Price group P - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-295 Stainless steel Ø 3.2 x 32 x 88.5 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-295 Stainless steel Ø 3.2 x 32 x 88.5 mm Metal spring characteristic download pdf file CAD data Compression spring VD-295 Stainless steel Ø 3.2 x 32 x 88.5 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-295 Stainless steel Ø 3.2 x 32 x 88.5 mm force-path-calculation Compression spring VD-295 Inquiry formular Compression spring VD-295 Stainless steel Ø 3.2 x 32 x 88.5 mm Inquiry formular Compression spring VD-295 Similar compression springs to Compression spring VD-295 Stainless steel Ø 3.2 x 32 x 88.5 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-295 1.4310 3.2 35.2 88.5 305.964 28.4 60.1 5.5 5.091 100.0 | 100.0 | 100.0 | 100.0 D-295 EN 10270-1 3.2 35.2 88.5 356.229 28.4 60.1 5.5 5.927 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-206A-21 34 103 0.078 1.4310 5.178 36.28 66.72 40.9 | 75.4 | 45.9 | 1.5 VD-207JA 35.5 74.5 0.322 1.4310 19.861 12.82 61.68 45.0 | 76.7 | 52.0 | 6.3 VD-234G 34 78.1 1.221 1.4310 77.773 14.39 63.71 55.4 | 82.4 | 59.9 | 24.0 VD-263E 38 86.6 1.276 1.4310 90.204 15.93 70.67 56.2 | 86.4 | 57.3 | 25.1 VD-268A-05 32 100 1.331 1.4310 82.916 37.72 62.28 57.9 | 85.8 | 61.8 | 26.2 VD-288Y 41 92 1.435 1.4310 71.474 42.2 49.8 57.7 | 91.9 | 53.1 | 28.2 VD-263W 42 91.7 1.585 1.4310 116.938 17.9 73.8 59.0 | 86.1 | 59.8 | 31.1 VD-236 27 88.5 1.629 1.4310 107.927 22.25 66.25 58.2 | 79.7 | 63.0 | 32.0 VD-264B 34.5 71.5 1.897 1.4310 91.025 23.5 48 59.2 | 85.6 | 54.8 | 37.2 VD-288K-12 33 100 2.441 1.4310 160.729 34.15 65.85 69.9 | 89.9 | 71.9 | 47.9 VD-264 34.5 71.5 2.98 1.4310 159.442 18 53.5 71.6 | 85.6 | 70.6 | 58.5 VD-288Z-12 37 87.1 3.279 1.4310 195.968 27.33 59.77 80.6 | 95.8 | 81.8 | 64.4 VD-298D 33 96 4.079 1.4310 228.995 39.86 56.14 86.5 | 95.3 | 84.1 | 80.1 VD-295 35.2 88.5 5.091 1.4310 305.964 28.4 60.1 100.0 | 100.0 | 100.0 | 100.0 VD-313G 40 92.8 5.541 1.4310 336.773 32.02 60.78 92.5 | 90.8 | 94.9 | 91.9 VD-313J-05 31.6 92 7.876 1.4310 380.927 43.64 48.36 78.9 | 91.6 | 80.4 | 64.6 VD-326A 36 92 8.042 1.4310 348.52 48.66 43.34 78.2 | 91.3 | 80.0 | 63.3 VD-313J-09 28.6 91.3 9.901 1.4310 435.699 47.29 44.01 70.7 | 89.0 | 71.7 | 51.4 VD-329B 35 76 10.741 1.4310 372.487 41.32 34.68 68.6 | 88.4 | 69.9 | 47.4 VD-326 36 79.5 12.429 1.4310 561.641 34.31 45.19 65.0 | 89.2 | 64.8 | 41.0 VD-332 29 89.5 16.866 1.4310 710.185 47.39 42.11 58.0 | 87.1 | 56.6 | 30.2 VD-339Q 32 97.7 18.161 1.4310 713.362 58.42 39.28 55.5 | 84.2 | 54.1 | 28.0 VD-356A 37 94 19.634 1.4310 680.115 59.36 34.64 53.9 | 84.4 | 51.3 | 25.9 VD-359A-03 34 88 28.029 1.4310 896.405 56.02 31.98 49.5 | 86.7 | 43.7 | 18.2 VD-356 37 75 30.344 1.4310 1003.191 41.94 33.06 46.9 | 81.3 | 42.8 | 16.8 VD-362 30 87.5 41.176 1.4310 1200.551 58.34 29.16 44.0 | 82.7 | 37.0 | 12.4 VD-364R-05 39 89 45.098 1.4310 1628.027 52.9 36.1 44.1 | 81.6 | 39.4 | 11.3 VD-386A 38.3 85 56.087 1.4310 1043.01 66.4 18.6 39.6 | 79.6 | 30.1 | 9.1 VD-389A-20 37.8 85 67.846 1.4310 1751.745 59.18 25.82 39.2 | 80.0 | 30.2 | 7.5 Number of similar metal springs: 28 Customs tariff number: 73202081; Compression spring VD-295 Country of origin: DE, German; Compression spring VD-295 Product image - Compression springs VD-295 QR-Code: Compression spring VD-295
