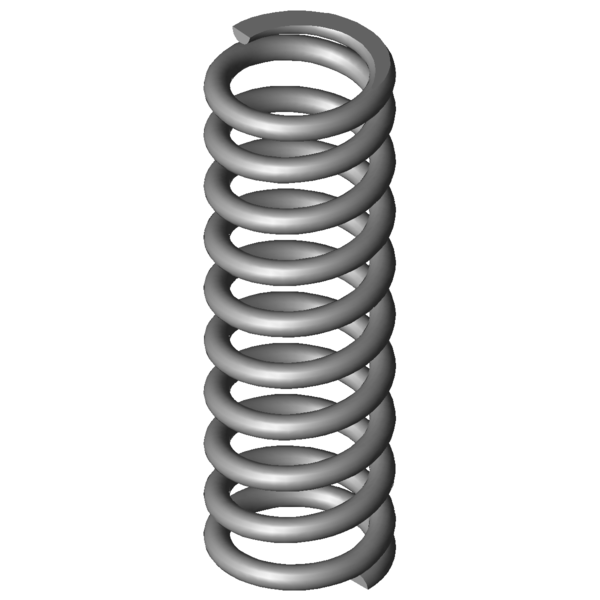

Home » Products » Compression springs » vd-332 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-332 Stainless steel Ø 4 x 25 x 89.5 mm Scaled prices - Compression spring VD-332 Quantity Single price [EUR] 1 12.9200 EUR 2 10.2900 EUR 3 5.8600 EUR 7 3.7100 EUR 17 2.3700 EUR 37 2.0000 EUR 75 1.9100 EUR 125 1.9100 EUR 175 1.9100 EUR 250 1.9100 EUR 350 1.9100 EUR Compression spring Buy Product image Compression spring VD-332 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-332 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4 mm Wire diameter Di mm Inner coil diameter D 25 mm Mean coil diameter De 29 mm Outer coil diameter Dd 20.3 mm maximum diameter of mandrel Dh 30 mm minimum diameter of bush L0 89.5 mm unstressed spring length Lk mm buckling length Fn 710.185 N maximum force in static use Ln 47.39 mm Minimum length in static use sn 42.11 mm Maximum spring deflection in static use Fndyn 614.087 N maximum force in dynamic use Lndyn 53.09 mm Minimum length in dynamic use shdyn 6.63 mm Maximum stroke in dynamic use S 10.059 mm pitch of spring n 8.5 pc. number of active coils nt pc. total number of coils R 16.866 N/mm Spring rate Weight 81.9161 g weight of one spring Fntol 45.08 N (+/-) tolerance of maximum force in static use Fndtol 44.29 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 1.66 mm (+/-) tolerance of unstressed spring length Price group #AD - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-332 Stainless steel Ø 4 x 25 x 89.5 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-332 Stainless steel Ø 4 x 25 x 89.5 mm Metal spring characteristic download pdf file CAD data Compression spring VD-332 Stainless steel Ø 4 x 25 x 89.5 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-332 Stainless steel Ø 4 x 25 x 89.5 mm force-path-calculation Compression spring VD-332 Inquiry formular Compression spring VD-332 Stainless steel Ø 4 x 25 x 89.5 mm Inquiry formular Compression spring VD-332 Similar compression springs to Compression spring VD-332 Stainless steel Ø 4 x 25 x 89.5 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-332 1.4310 4 29 89.5 710.185 47.39 42.11 8.5 16.866 100.0 | 100.0 | 100.0 | 100.0 D-332 EN 10270-1 4 29 89.5 826.859 47.39 42.11 8.5 19.637 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-270 27.5 74.5 3.977 1.4310 203.636 23.3 51.2 53.1 | 80.2 | 55.5 | 23.6 VD-298D 33 96 4.079 1.4310 228.995 39.86 56.14 54.9 | 87.0 | 53.6 | 24.2 VD-273A-10 24 85 4.586 1.4310 237.531 33.2 51.8 54.9 | 80.1 | 57.4 | 27.2 VD-295 35.2 88.5 5.091 1.4310 305.964 28.4 60.1 58.0 | 87.1 | 56.6 | 30.2 VD-288Z-33 28 97 5.336 1.4310 321.756 36.71 60.29 59.1 | 87.9 | 57.6 | 31.6 VD-288Z-43 27 81.8 6.032 1.4310 273.249 36.5 45.3 62.7 | 86.5 | 65.7 | 35.8 VD-300A 28.2 79.4 6.181 1.4310 227.32 42.62 36.78 61.7 | 88.7 | 59.7 | 36.6 VD-301 28.2 94.5 6.908 1.4310 384.72 38.81 55.69 65.5 | 90.7 | 64.9 | 41.0 VD-313J-05 31.6 92 7.876 1.4310 380.927 43.64 48.36 70.0 | 93.0 | 70.4 | 46.7 VD-306A 23.2 92 8.495 1.4310 302.001 56.45 35.55 66.5 | 85.8 | 63.5 | 50.4 VD-313J-09 28.6 91.3 9.901 1.4310 435.699 47.29 44.01 77.6 | 95.5 | 78.5 | 58.7 VD-313J-08 28.6 74.6 12.541 1.4310 448.306 38.85 35.75 79.7 | 90.7 | 74.0 | 74.4 VD-313M-01 25 95 13.04 1.4310 522.457 54.93 40.07 83.9 | 90.1 | 84.4 | 77.3 VD-313M-02 25 86 13.633 1.4310 451.804 52.86 33.14 80.9 | 90.8 | 71.2 | 80.8 VD-332 29 89.5 16.866 1.4310 710.185 47.39 42.11 100.0 | 100.0 | 100.0 | 100.0 VD-339Q 32 97.7 18.161 1.4310 713.362 58.42 39.28 93.2 | 90.4 | 96.4 | 92.9 VD-334A-03 27 78 21.659 1.4310 669.274 47.1 30.9 85.0 | 93.4 | 83.8 | 77.9 VD-359A-03 34 88 28.029 1.4310 896.405 56.02 31.98 75.2 | 87.9 | 77.6 | 60.2 VD-362 30 87.5 41.176 1.4310 1200.551 58.34 29.16 65.5 | 91.5 | 64.2 | 41.0 VD-361A 30 72 41.176 1.4310 562.316 58.34 13.66 60.8 | 85.7 | 55.8 | 41.0 VD-364Q 28 87.8 73.992 1.4310 1332.853 69.79 18.01 53.3 | 89.1 | 48.0 | 22.8 Number of similar metal springs: 20 Customs tariff number: 73202081; Compression spring VD-332 Country of origin: DE, German; Compression spring VD-332 Product image - Compression springs VD-332 QR-Code: Compression spring VD-332
