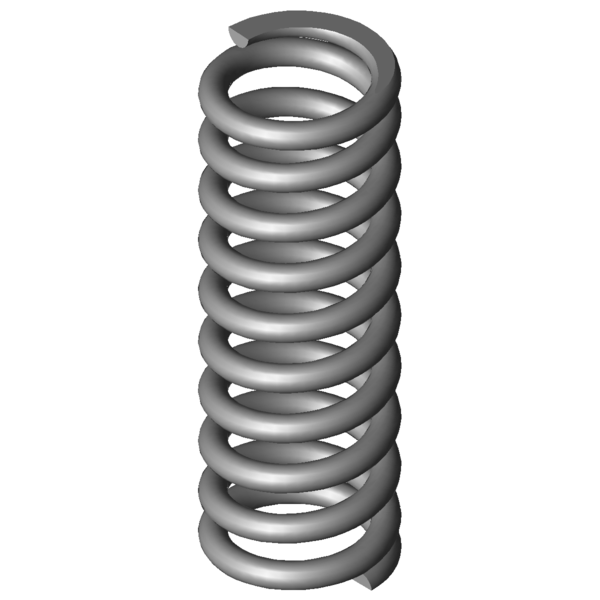

Home » Products » Compression springs » vd-334a-03 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-334A-03 Stainless steel Ø 4 x 23 x 78 mm Scaled prices - Compression spring VD-334A-03 Quantity Single price [EUR] 1 13.5300 EUR 2 10.7800 EUR 3 6.2300 EUR 7 4.2800 EUR 17 2.7100 EUR 37 2.3100 EUR 75 2.2200 EUR 125 2.2200 EUR 175 2.2200 EUR 250 2.2200 EUR 350 2.2200 EUR Compression spring Buy Product image Compression spring VD-334A-03 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-334A-03 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4 mm Wire diameter Di mm Inner coil diameter D 23 mm Mean coil diameter De 27 mm Outer coil diameter Dd 18.2 mm maximum diameter of mandrel Dh 28.1 mm minimum diameter of bush L0 78 mm unstressed spring length Lk mm buckling length Fn 669.274 N maximum force in static use Ln 47.1 mm Minimum length in static use sn 30.9 mm Maximum spring deflection in static use Fndyn 611.877 N maximum force in dynamic use Lndyn 49.75 mm Minimum length in dynamic use shdyn 6.3 mm Maximum stroke in dynamic use S 8.709 mm pitch of spring n 8.5 pc. number of active coils nt pc. total number of coils R 21.659 N/mm Spring rate Weight 75.3629 g weight of one spring Fntol 48.6 N (+/-) tolerance of maximum force in static use Fndtol 47.9 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 1.7 mm (+/-) tolerance of unstressed spring length Price group #AG - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-334A-03 Stainless steel Ø 4 x 23 x 78 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-334A-03 Stainless steel Ø 4 x 23 x 78 mm Metal spring characteristic download pdf file CAD data Compression spring VD-334A-03 Stainless steel Ø 4 x 23 x 78 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-334A-03 Stainless steel Ø 4 x 23 x 78 mm force-path-calculation Compression spring VD-334A-03 Inquiry formular Compression spring VD-334A-03 Stainless steel Ø 4 x 23 x 78 mm Inquiry formular Compression spring VD-334A-03 Similar compression springs to Compression spring VD-334A-03 Stainless steel Ø 4 x 23 x 78 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-334A-03 1.4310 4 27 78 669.274 47.1 30.9 8.5 21.659 100.0 | 100.0 | 100.0 | 100.0 D-334A-03 EN 10270-1 4 27 78 779.479 47.09 30.91 8.5 25.218 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-273A-10 24 85 4.586 1.4310 237.531 33.2 51.8 49.9 | 81.1 | 47.6 | 21.2 VD-288M 30 70.7 4.859 1.4310 223.43 24.72 45.98 52.1 | 83.5 | 50.3 | 22.4 VD-276 22.5 81.5 5.026 1.4310 255.594 30.65 50.85 51.1 | 80.5 | 49.5 | 23.2 VD-288Z-43 27 81.8 6.032 1.4310 273.249 36.5 45.3 57.5 | 90.1 | 54.5 | 27.8 VD-300A 28.2 79.4 6.181 1.4310 227.32 42.62 36.78 59.6 | 91.3 | 59.0 | 28.5 VD-288Z-32 28 63 8.247 1.4310 306.232 25.87 37.13 62.2 | 84.1 | 64.5 | 38.1 VD-313J-09 28.6 91.3 9.901 1.4310 435.699 47.29 44.01 67.8 | 89.9 | 67.7 | 45.7 VD-313J-08 28.6 74.6 12.541 1.4310 448.306 38.85 35.75 76.0 | 93.3 | 76.7 | 57.9 VD-306 23.2 74 13.493 1.4310 486.901 37.91 36.09 76.1 | 86.9 | 79.2 | 62.3 VD-313M-02 25 86 13.633 1.4310 451.804 52.86 33.14 78.1 | 91.1 | 80.4 | 62.9 VD-313M 25 78 15.785 1.4310 495.142 46.63 31.37 84.4 | 94.2 | 86.2 | 72.9 VD-313L-03 25 72 16.662 1.4310 457.257 44.56 27.44 82.4 | 91.6 | 78.6 | 76.9 VD-332 29 89.5 16.866 1.4310 710.185 47.39 42.11 85.0 | 93.4 | 83.8 | 77.9 VD-329B-01 30 70 19.607 1.4310 622.571 38.25 31.75 93.0 | 93.2 | 95.2 | 90.5 VD-334A-03 27 78 21.659 1.4310 669.274 47.1 30.9 100.0 | 100.0 | 100.0 | 100.0 VD-337 24 72 32.941 1.4310 834.235 46.68 25.33 80.2 | 93.7 | 81.1 | 65.8 VD-361A 30 72 41.176 1.4310 562.316 58.34 13.66 68.1 | 87.4 | 64.1 | 52.6 VD-339R-10 27 70 42 1.4310 949.594 47.39 22.61 72.1 | 92.9 | 71.8 | 51.6 VD-364Q 28 87.8 73.992 1.4310 1332.853 69.79 18.01 56.5 | 86.0 | 54.2 | 29.3 VD-365RA 28 66 102.083 1.4310 775.017 58.41 7.59 53.6 | 84.2 | 55.5 | 21.2 VD-389R-01 27.8 70 389.098 1.4310 3596.724 60.76 9.24 37.1 | 81.3 | 24.3 | 5.6 Number of similar metal springs: 20 Customs tariff number: 73202081; Compression spring VD-334A-03 Country of origin: DE, German; Compression spring VD-334A-03 Product image - Compression springs VD-334A-03 QR-Code: Compression spring VD-334A-03
