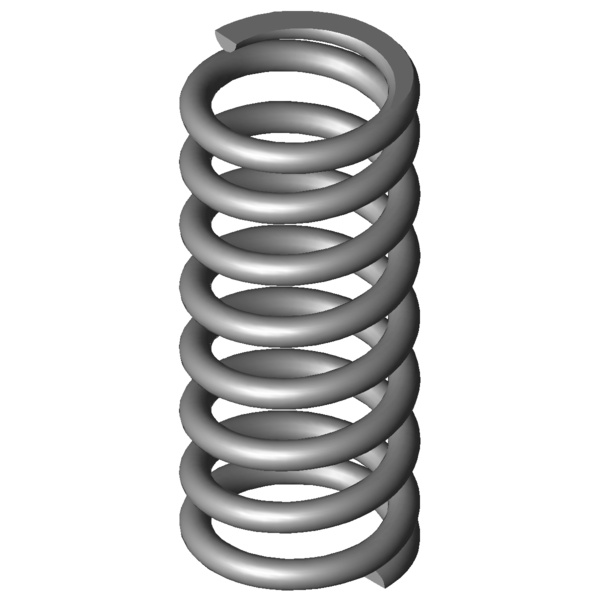

Home » Products » Compression springs » vd-329b-01 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-329B-01 Stainless steel Ø 4 x 26 x 70 mm Scaled prices - Compression spring VD-329B-01 Quantity Single price [EUR] 1 12.9200 EUR 2 10.2900 EUR 3 5.8600 EUR 7 3.7100 EUR 17 2.3700 EUR 37 2.0000 EUR 75 1.9100 EUR 125 1.9100 EUR 175 1.9100 EUR 250 1.9100 EUR 350 1.9100 EUR Compression spring Buy Product image Compression spring VD-329B-01 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-329B-01 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4 mm Wire diameter Di mm Inner coil diameter D 26 mm Mean coil diameter De 30 mm Outer coil diameter Dd 21.3 mm maximum diameter of mandrel Dh 31 mm minimum diameter of bush L0 70 mm unstressed spring length Lk mm buckling length Fn 622.571 N maximum force in static use Ln 38.25 mm Minimum length in static use sn 31.75 mm Maximum spring deflection in static use Fndyn 580.764 N maximum force in dynamic use Lndyn 40.38 mm Minimum length in dynamic use shdyn 5.91 mm Maximum stroke in dynamic use S 10.154 mm pitch of spring n 6.5 pc. number of active coils nt pc. total number of coils R 19.607 N/mm Spring rate Weight 68.9656 g weight of one spring Fntol 42.86 N (+/-) tolerance of maximum force in static use Fndtol 42.13 N (+/-) tolerance of maximum dynamic force Detol 0.4 mm (+/-) tolerances of outer coil diameter L0tol 1.4 mm (+/-) tolerance of unstressed spring length Price group #AD - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-329B-01 Stainless steel Ø 4 x 26 x 70 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-329B-01 Stainless steel Ø 4 x 26 x 70 mm Metal spring characteristic download pdf file CAD data Compression spring VD-329B-01 Stainless steel Ø 4 x 26 x 70 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-329B-01 Stainless steel Ø 4 x 26 x 70 mm force-path-calculation Compression spring VD-329B-01 Inquiry formular Compression spring VD-329B-01 Stainless steel Ø 4 x 26 x 70 mm Inquiry formular Compression spring VD-329B-01 Similar compression springs to Compression spring VD-329B-01 Stainless steel Ø 4 x 26 x 70 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-329B-01 1.4310 4 30 70 622.571 38.25 31.75 6.5 19.607 100.0 | 100.0 | 100.0 | 100.0 D-329B-01 EN 10270-1 4 30 70 724.851 38.25 31.75 6.5 22.828 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-264B 34.5 71.5 1.897 1.4310 91.025 23.5 48 44.2 | 82.5 | 40.4 | 9.7 VD-268C 31 69 2.685 1.4310 124.011 22.81 46.19 48.0 | 85.9 | 44.3 | 13.7 VD-264 34.5 71.5 2.98 1.4310 159.442 18 53.5 46.7 | 82.5 | 42.5 | 15.2 VD-270 27.5 74.5 3.977 1.4310 203.636 23.3 51.2 50.1 | 82.7 | 47.4 | 20.3 VD-288Z-21 33 72.5 4.773 1.4310 218.949 26.63 45.88 54.7 | 87.5 | 52.2 | 24.3 VD-288M 30 70.7 4.859 1.4310 223.43 24.72 45.98 55.6 | 89.7 | 52.5 | 24.8 VD-300A 28.2 79.4 6.181 1.4310 227.32 42.62 36.78 60.1 | 87.4 | 61.4 | 31.5 VD-298C 33 64 6.304 1.4310 226.622 28.05 35.95 60.7 | 87.4 | 62.4 | 32.1 VD-288Z-32 28 63 8.247 1.4310 306.232 25.87 37.13 65.2 | 86.1 | 67.3 | 42.1 VD-313J-04 31.6 72.2 8.927 1.4310 293.237 39.35 32.85 70.5 | 94.0 | 71.9 | 45.5 VD-313J-03 31.6 62.7 10.3 1.4310 284.653 35.06 27.64 70.1 | 91.5 | 66.4 | 52.5 VD-300 28.2 63.5 10.676 1.4310 385.725 27.37 36.13 72.5 | 88.2 | 74.9 | 54.4 VD-313J-08 28.6 74.6 12.541 1.4310 448.306 38.85 35.75 79.1 | 93.1 | 80.4 | 64.0 VD-313L-03 25 72 16.662 1.4310 457.257 44.56 27.44 85.0 | 90.2 | 79.9 | 85.0 VD-329B-01 30 70 19.607 1.4310 622.571 38.25 31.75 100.0 | 100.0 | 100.0 | 100.0 VD-334A-03 27 78 21.659 1.4310 669.274 47.1 30.9 93.0 | 93.2 | 95.2 | 90.5 VD-331 29 60.5 26.065 1.4310 704.052 33.49 27.01 85.4 | 94.4 | 86.7 | 75.2 VD-339P 32 60.4 31.369 1.4310 714.848 37.61 22.79 77.2 | 89.6 | 79.4 | 62.5 VD-359A-02 34 68 37.372 1.4310 877.719 44.51 23.49 71.1 | 88.5 | 72.5 | 52.5 VD-361A 30 72 41.176 1.4310 562.316 58.34 13.66 68.9 | 92.4 | 66.7 | 47.6 VD-339R-10 27 70 42 1.4310 949.594 47.39 22.61 69.3 | 93.0 | 68.4 | 46.7 VD-361 30 60 63.636 1.4310 1191.193 41.28 18.72 58.3 | 88.6 | 55.6 | 30.8 VD-364R-48 33.6 66 71.273 1.4310 1408.705 46.24 19.77 55.3 | 85.0 | 53.2 | 27.5 VD-365RA 28 66 102.083 1.4310 775.017 58.41 7.59 52.6 | 86.3 | 52.1 | 19.2 VD-389P 34 68 194.065 1.4310 2094.116 57.21 10.79 40.9 | 80.8 | 31.9 | 10.1 VD-389R-01 27.8 70 389.098 1.4310 3596.724 60.76 9.24 37.2 | 83.3 | 23.2 | 5.0 Number of similar metal springs: 25 Customs tariff number: 73202081; Compression spring VD-329B-01 Country of origin: DE, German; Compression spring VD-329B-01 Product image - Compression springs VD-329B-01 QR-Code: Compression spring VD-329B-01
