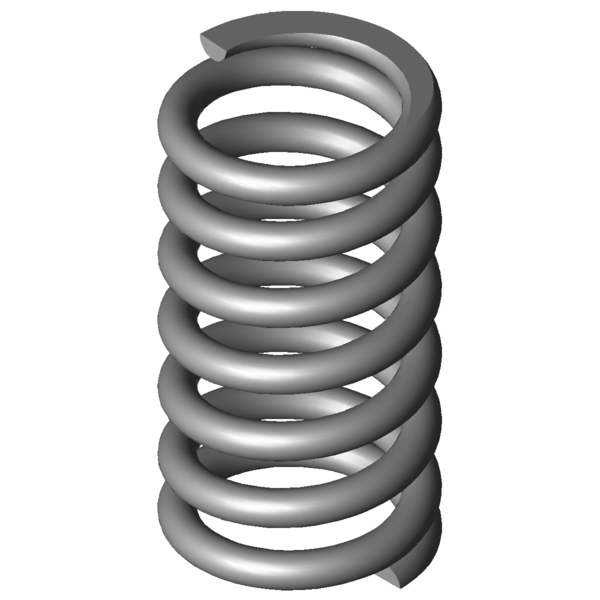

Home » Products » Compression springs » vd-339p Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-339P Stainless steel Ø 4.5 x 27.5 x 60.4 mm Scaled prices - Compression spring VD-339P Quantity Single price [EUR] 1 13.5300 EUR 2 10.7800 EUR 3 6.2300 EUR 7 4.2800 EUR 17 2.7100 EUR 37 2.3100 EUR 75 2.2200 EUR 125 2.2200 EUR 175 2.2200 EUR 250 2.2200 EUR 350 2.2200 EUR Compression spring Buy Product image Compression spring VD-339P Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-339P Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4.5 mm Wire diameter Di mm Inner coil diameter D 27.5 mm Mean coil diameter De 32 mm Outer coil diameter Dd 22.1 mm maximum diameter of mandrel Dh 33.2 mm minimum diameter of bush L0 60.4 mm unstressed spring length Lk mm buckling length Fn 714.848 N maximum force in static use Ln 37.61 mm Minimum length in static use sn 22.79 mm Maximum spring deflection in static use Fndyn 654.352 N maximum force in dynamic use Lndyn 39.54 mm Minimum length in dynamic use shdyn 6.32 mm Maximum stroke in dynamic use S 10.164 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 31.369 N/mm Spring rate Weight 81.459 g weight of one spring Fntol 58.29 N (+/-) tolerance of maximum force in static use Fndtol 52.33 N (+/-) tolerance of maximum dynamic force Detol 0.4 mm (+/-) tolerances of outer coil diameter L0tol 1.25 mm (+/-) tolerance of unstressed spring length Price group #AG - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-339P Stainless steel Ø 4.5 x 27.5 x 60.4 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-339P Stainless steel Ø 4.5 x 27.5 x 60.4 mm Metal spring characteristic download pdf file CAD data Compression spring VD-339P Stainless steel Ø 4.5 x 27.5 x 60.4 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-339P Stainless steel Ø 4.5 x 27.5 x 60.4 mm force-path-calculation Compression spring VD-339P Inquiry formular Compression spring VD-339P Stainless steel Ø 4.5 x 27.5 x 60.4 mm Inquiry formular Compression spring VD-339P Similar compression springs to Compression spring VD-339P Stainless steel Ø 4.5 x 27.5 x 60.4 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-339P 1.4310 4.5 32 60.4 714.848 37.61 22.79 5.5 31.369 100.0 | 100.0 | 100.0 | 100.0 D-339P EN 10270-1 4.5 32 60.4 832.288 37.61 22.79 5.5 36.522 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-288Z-11 37 57.4 5.152 1.4310 194.89 19.57 37.83 47.6 | 82.7 | 43.8 | 16.4 VD-298C 33 64 6.304 1.4310 226.622 28.05 35.95 51.7 | 87.5 | 47.5 | 20.1 VD-288Z-20 33 48.3 7.5 1.4310 218.813 19.13 29.18 53.2 | 81.2 | 54.4 | 23.9 VD-294 35.2 58.5 8 1.4310 304.8 20.4 38.1 54.3 | 86.3 | 51.2 | 25.5 VD-288Z-32 28 63 8.247 1.4310 306.232 25.87 37.13 53.9 | 83.3 | 52.1 | 26.3 VD-313J-04 31.6 72.2 8.927 1.4310 293.237 39.35 32.85 57.0 | 87.5 | 55.2 | 28.5 VD-313J-03 31.6 62.7 10.3 1.4310 284.653 35.06 27.64 61.9 | 91.7 | 61.1 | 32.8 VD-300 28.2 63.5 10.676 1.4310 385.725 27.37 36.13 59.1 | 84.8 | 58.5 | 34.0 VD-313J-02 31.6 53.9 12.173 1.4310 281.47 30.78 23.12 65.7 | 89.3 | 69.0 | 38.8 VD-325A 36 61 12.429 1.4310 331.705 34.31 26.69 65.9 | 92.3 | 65.9 | 39.6 VD-313J-07 28.6 56 17.102 1.4310 437.589 30.41 25.59 72.3 | 87.4 | 75.1 | 54.5 VD-329B-01 30 70 19.607 1.4310 622.571 38.25 31.75 77.2 | 89.6 | 79.4 | 62.5 VD-331 29 60.5 26.065 1.4310 704.052 33.49 27.01 89.2 | 93.1 | 91.4 | 83.1 VD-355A 37 63 30.344 1.4310 639.061 41.94 21.06 92.8 | 90.8 | 90.9 | 96.7 VD-339P 32 60.4 31.369 1.4310 714.848 37.61 22.79 100.0 | 100.0 | 100.0 | 100.0 VD-359A-02 34 68 37.372 1.4310 877.719 44.51 23.49 88.1 | 91.0 | 89.2 | 83.9 VD-361 30 60 63.636 1.4310 1191.193 41.28 18.72 71.6 | 94.4 | 71.1 | 49.3 VD-364R-48 33.6 66 71.273 1.4310 1408.705 46.24 19.77 67.3 | 89.0 | 68.7 | 44.0 VD-365RA 28 66 102.083 1.4310 775.017 58.41 7.59 60.0 | 86.5 | 62.8 | 30.7 VD-364P 28 55.5 127.805 1.4310 1337.561 45.03 10.47 53.8 | 87.1 | 49.7 | 24.6 VD-389P 34 68 194.065 1.4310 2094.116 57.21 10.79 46.4 | 82.4 | 40.7 | 16.2 Number of similar metal springs: 20 Customs tariff number: 73202081; Compression spring VD-339P Country of origin: DE, German; Compression spring VD-339P Product image - Compression springs VD-339P QR-Code: Compression spring VD-339P
