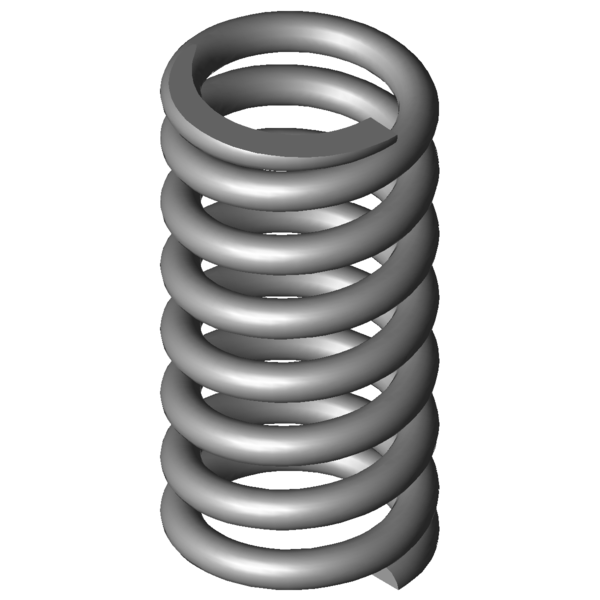

Home » Products » Compression springs » vd-359a-02 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-359A-02 Stainless steel Ø 5 x 29 x 68 mm Scaled prices - Compression spring VD-359A-02 Quantity Single price [EUR] 1 13.3600 EUR 2 10.6400 EUR 3 6.1500 EUR 7 4.0000 EUR 17 2.6100 EUR 37 2.2000 EUR 75 2.1400 EUR 125 2.1400 EUR 175 2.1400 EUR 250 2.1400 EUR 350 2.1400 EUR Compression spring Buy Product image Compression spring VD-359A-02 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-359A-02 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5 mm Wire diameter Di mm Inner coil diameter D 29 mm Mean coil diameter De 34 mm Outer coil diameter Dd 23.1 mm maximum diameter of mandrel Dh 35.2 mm minimum diameter of bush L0 68 mm unstressed spring length Lk mm buckling length Fn 877.719 N maximum force in static use Ln 44.51 mm Minimum length in static use sn 23.49 mm Maximum spring deflection in static use Fndyn 793.401 N maximum force in dynamic use Lndyn 46.77 mm Minimum length in dynamic use shdyn 7.51 mm Maximum stroke in dynamic use S 10.5 mm pitch of spring n 6 pc. number of active coils nt pc. total number of coils R 37.372 N/mm Spring rate Weight 113.1223 g weight of one spring Fntol 76.5 N (+/-) tolerance of maximum force in static use Fndtol 75 N (+/-) tolerance of maximum dynamic force Detol 0.4 mm (+/-) tolerances of outer coil diameter L0tol 1.37 mm (+/-) tolerance of unstressed spring length Price group #AF - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-359A-02 Stainless steel Ø 5 x 29 x 68 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-359A-02 Stainless steel Ø 5 x 29 x 68 mm Metal spring characteristic download pdf file CAD data Compression spring VD-359A-02 Stainless steel Ø 5 x 29 x 68 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-359A-02 Stainless steel Ø 5 x 29 x 68 mm force-path-calculation Compression spring VD-359A-02 Inquiry formular Compression spring VD-359A-02 Stainless steel Ø 5 x 29 x 68 mm Inquiry formular Compression spring VD-359A-02 Similar compression springs to Compression spring VD-359A-02 Stainless steel Ø 5 x 29 x 68 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-359A-02 1.4310 5 34 68 877.719 44.51 23.49 6 37.372 100.0 | 100.0 | 100.0 | 100.0 D-359A-02 EN 10270-1 5 34 68 1021.916 44.51 23.49 6 43.511 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-268C 31 69 2.685 1.4310 124.011 22.81 46.19 39.9 | 79.9 | 32.5 | 7.2 VD-264 34.5 71.5 2.98 1.4310 159.442 18 53.5 40.1 | 81.2 | 31.0 | 8.0 VD-288Z-21 33 72.5 4.773 1.4310 218.949 26.63 45.88 44.8 | 83.6 | 38.1 | 12.8 VD-288M 30 70.7 4.859 1.4310 223.43 24.72 45.98 43.8 | 80.1 | 38.3 | 13.0 VD-298C 33 64 6.304 1.4310 226.622 28.05 35.95 49.2 | 85.1 | 45.6 | 16.9 VD-294 35.2 58.5 8 1.4310 304.8 20.4 38.1 50.6 | 82.2 | 48.2 | 21.4 VD-313J-04 31.6 72.2 8.927 1.4310 293.237 39.35 32.85 54.2 | 86.4 | 52.5 | 23.9 VD-313J-03 31.6 62.7 10.3 1.4310 284.653 35.06 27.64 57.3 | 85.7 | 58.7 | 27.6 VD-329B 35 76 10.741 1.4310 372.487 41.32 34.68 57.6 | 88.9 | 55.1 | 28.7 VD-325A 36 61 12.429 1.4310 331.705 34.31 26.69 61.4 | 88.1 | 62.9 | 33.3 VD-329B-01 30 70 19.607 1.4310 622.571 38.25 31.75 71.1 | 88.5 | 72.5 | 52.5 VD-355A 37 63 30.344 1.4310 639.061 41.94 21.06 85.8 | 94.8 | 81.2 | 81.2 VD-356 37 75 30.344 1.4310 1003.191 41.94 33.06 84.9 | 94.2 | 79.3 | 81.2 VD-339P 32 60.4 31.369 1.4310 714.848 37.61 22.79 88.1 | 91.0 | 89.2 | 83.9 VD-359A-02 34 68 37.372 1.4310 877.719 44.51 23.49 100.0 | 100.0 | 100.0 | 100.0 VD-361A 30 72 41.176 1.4310 562.316 58.34 13.66 82.0 | 94.2 | 61.1 | 90.8 VD-364L 38 70 42.408 1.4310 1023.751 45.86 24.14 90.7 | 92.5 | 91.5 | 88.1 VD-364R-91 39 68 57.373 1.4310 1044.342 49.8 18.2 78.7 | 90.2 | 80.8 | 65.1 VD-364R-03 39 64 63.667 1.4310 1532.695 39.93 24.07 75.1 | 89.2 | 77.4 | 58.7 VD-364R-48 33.6 66 71.273 1.4310 1408.705 46.24 19.77 73.6 | 95.1 | 73.2 | 52.4 VD-365RA 28 66 102.083 1.4310 775.017 58.41 7.59 62.2 | 89.6 | 60.3 | 36.6 VD-389A-03 39 64 139.53 1.4310 2483.639 46.2 17.8 55.9 | 85.3 | 55.6 | 26.8 VD-389P 34 68 194.065 1.4310 2094.116 57.21 10.79 51.2 | 90.5 | 43.9 | 19.3 VD-389R-01 27.8 70 389.098 1.4310 3596.724 60.76 9.24 41.6 | 83.4 | 31.9 | 9.6 Number of similar metal springs: 23 Customs tariff number: 73202081; Compression spring VD-359A-02 Country of origin: DE, German; Compression spring VD-359A-02 Product image - Compression springs VD-359A-02 QR-Code: Compression spring VD-359A-02
