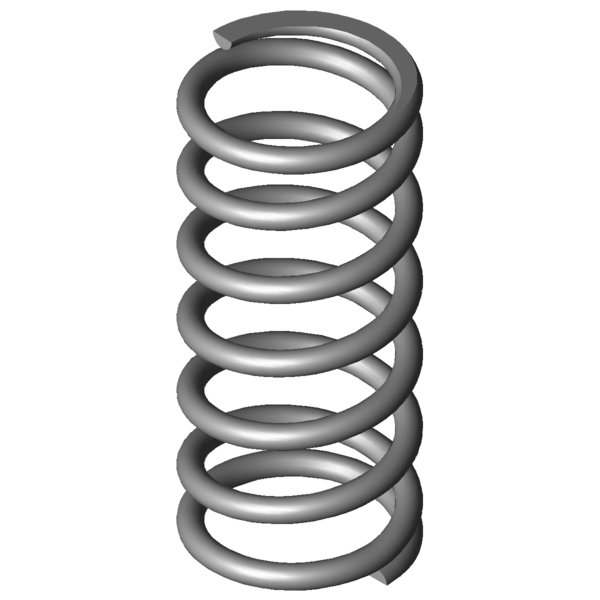

Home » Products » Compression springs » vd-300 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-300 Stainless steel Ø 3.2 x 25 x 63.5 mm Scaled prices - Compression spring VD-300 Quantity Single price [EUR] 1 5.9700 EUR 2 4.2100 EUR 3 4.0100 EUR 7 3.2100 EUR 17 1.7700 EUR 37 1.3500 EUR 75 1.1900 EUR 125 0.9703 EUR 175 0.8890 EUR 250 0.8202 EUR 350 0.7705 EUR 450 0.7136 EUR Compression spring Buy Product image Compression spring VD-300 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-300 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 3.2 mm Wire diameter Di mm Inner coil diameter D 25 mm Mean coil diameter De 28.2 mm Outer coil diameter Dd 21 mm maximum diameter of mandrel Dh 29.3 mm minimum diameter of bush L0 63.5 mm unstressed spring length Lk mm buckling length Fn 385.725 N maximum force in static use Ln 27.37 mm Minimum length in static use sn 36.13 mm Maximum spring deflection in static use Fndyn 338.442 N maximum force in dynamic use Lndyn 31.8 mm Minimum length in dynamic use shdyn 7.4 mm Maximum stroke in dynamic use S 10.964 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 10.676 N/mm Spring rate Weight 37.4474 g weight of one spring Fntol 23.38 N (+/-) tolerance of maximum force in static use Fndtol 23.07 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 1.34 mm (+/-) tolerance of unstressed spring length Price group P - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-300 Stainless steel Ø 3.2 x 25 x 63.5 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-300 Stainless steel Ø 3.2 x 25 x 63.5 mm Metal spring characteristic download pdf file CAD data Compression spring VD-300 Stainless steel Ø 3.2 x 25 x 63.5 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-300 Stainless steel Ø 3.2 x 25 x 63.5 mm force-path-calculation Compression spring VD-300 Inquiry formular Compression spring VD-300 Stainless steel Ø 3.2 x 25 x 63.5 mm Inquiry formular Compression spring VD-300 Similar compression springs to Compression spring VD-300 Stainless steel Ø 3.2 x 25 x 63.5 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-300 1.4310 3.2 28.2 63.5 385.725 27.37 36.13 5.5 10.676 39.6 | 81.6 | 28.9 | 8.4 D-300 EN 10270-1 3.2 28.2 63.5 449.094 27.37 36.13 5.5 12.43 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-206A 24 60.9 0.832 1.4310 42.261 10.11 50.79 41.3 | 74.9 | 41.0 | 7.8 VD-207L 28 68.5 0.89 1.4310 50.625 11.65 56.85 42.4 | 80.7 | 38.3 | 8.3 VD-207K-01 28 55 0.89 1.4310 38.604 11.65 43.35 44.6 | 78.6 | 46.7 | 8.3 VD-232F 30 69.1 1.17 1.4310 65.828 12.85 56.25 44.1 | 80.7 | 40.6 | 11.0 VD-239A-02 25 62.5 2.092 1.4310 92.508 18.28 44.22 51.9 | 83.2 | 52.8 | 19.6 VD-239A-03 25 63 2.557 1.4310 116.983 17.25 45.75 54.0 | 83.5 | 54.7 | 24.0 VD-235 27 58 2.56 1.4310 107.776 15.9 42.1 54.7 | 83.2 | 56.9 | 24.0 VD-268C 31 69 2.685 1.4310 124.011 22.81 46.19 55.8 | 87.0 | 55.2 | 25.1 VD-270 27.5 74.5 3.977 1.4310 203.636 23.3 51.2 62.0 | 87.0 | 61.7 | 37.3 VD-288M 30 70.7 4.859 1.4310 223.43 24.72 45.98 68.1 | 90.4 | 68.3 | 45.5 VD-298C 33 64 6.304 1.4310 226.622 28.05 35.95 77.7 | 94.9 | 79.1 | 59.0 VD-288Z-32 28 63 8.247 1.4310 306.232 25.87 37.13 87.7 | 97.4 | 88.3 | 77.3 VD-288Z-42 27 55.1 9.322 1.4310 273.742 25.73 29.37 39.6 | 83.4 | 28.1 | 7.3 VD-313J-03 31.6 62.7 10.3 1.4310 284.653 35.06 27.64 88.0 | 92.3 | 75.1 | 96.5 VD-300 28.2 63.5 10.676 1.4310 385.725 27.37 36.13 39.6 | 81.6 | 28.9 | 8.4 VD-313J-08 28.6 74.6 12.541 1.4310 448.306 38.85 35.75 89.5 | 90.9 | 92.5 | 85.1 VD-313J-07 28.6 56 17.102 1.4310 437.589 30.41 25.59 45.9 | 87.5 | 36.8 | 13.4 VD-313L-01 25 63.5 17.642 1.4310 370.809 42.48 21.02 76.7 | 92.5 | 77.2 | 60.5 VD-329B-01 30 70 19.607 1.4310 622.571 38.25 31.75 72.5 | 88.2 | 74.9 | 54.4 VD-313L-02 25 57 21.423 1.4310 444.403 36.26 20.74 47.6 | 84.0 | 41.9 | 16.8 VD-331 29 60.5 26.065 1.4310 704.052 33.49 27.01 51.0 | 87.0 | 45.7 | 20.4 VD-339P 32 60.4 31.369 1.4310 714.848 37.61 22.79 53.8 | 87.1 | 49.7 | 24.6 VD-336A 24 65 32.941 1.4310 603.647 46.68 18.33 59.1 | 87.6 | 57.3 | 32.4 VD-361A 30 72 41.176 1.4310 562.316 58.34 13.66 53.7 | 82.1 | 53.2 | 25.9 VD-339R-10 27 70 42 1.4310 949.594 47.39 22.61 54.3 | 85.9 | 51.6 | 25.4 VD-361 30 60 63.636 1.4310 1191.193 41.28 18.72 71.5 | 92.2 | 72.5 | 49.8 VD-365RA 28 66 102.083 1.4310 775.017 58.41 7.59 79.7 | 94.1 | 65.2 | 79.9 VD-364P 28 55.5 127.805 1.4310 1337.561 45.03 10.47 100.0 | 100.0 | 100.0 | 100.0 VD-389R-01 27.8 70 389.098 1.4310 3596.724 60.76 9.24 33.1 | 78.3 | 18.1 | 2.7 Number of similar metal springs: 28 Customs tariff number: 73202081; Compression spring VD-300 Country of origin: DE, German; Compression spring VD-300 Product image - Compression springs VD-300 QR-Code: Compression spring VD-300
