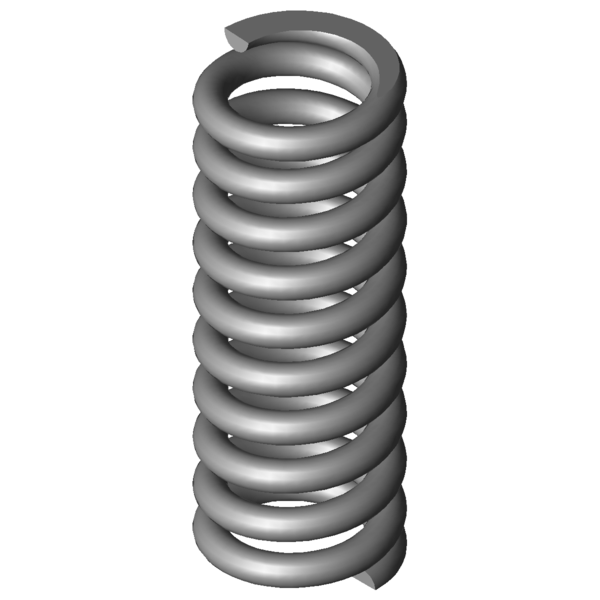

Home » Products » Compression springs » vd-336a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-336A Stainless steel Ø 4 x 20 x 65 mm Scaled prices - Compression spring VD-336A Quantity Single price [EUR] 1 13.5300 EUR 2 10.7800 EUR 3 6.2300 EUR 7 4.2800 EUR 17 2.7100 EUR 37 2.3100 EUR 75 2.2200 EUR 125 2.2200 EUR 175 2.2200 EUR 250 2.2200 EUR 350 2.2200 EUR Compression spring Buy Product image Compression spring VD-336A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-336A Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4 mm Wire diameter Di mm Inner coil diameter D 20 mm Mean coil diameter De 24 mm Outer coil diameter Dd 15.2 mm maximum diameter of mandrel Dh 25.1 mm minimum diameter of bush L0 65 mm unstressed spring length Lk mm buckling length Fn 603.647 N maximum force in static use Ln 46.68 mm Minimum length in static use sn 18.33 mm Maximum spring deflection in static use Fndyn 526.4 N maximum force in dynamic use Lndyn 49.02 mm Minimum length in dynamic use shdyn 7.15 mm Maximum stroke in dynamic use S 7.176 mm pitch of spring n 8.5 pc. number of active coils nt pc. total number of coils R 32.941 N/mm Spring rate Weight 65.5329 g weight of one spring Fntol 62.41 N (+/-) tolerance of maximum force in static use Fndtol 61.07 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 1.35 mm (+/-) tolerance of unstressed spring length Price group #AG - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-336A Stainless steel Ø 4 x 20 x 65 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-336A Stainless steel Ø 4 x 20 x 65 mm Metal spring characteristic download pdf file CAD data Compression spring VD-336A Stainless steel Ø 4 x 20 x 65 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-336A Stainless steel Ø 4 x 20 x 65 mm force-path-calculation Compression spring VD-336A Inquiry formular Compression spring VD-336A Stainless steel Ø 4 x 20 x 65 mm Inquiry formular Compression spring VD-336A Similar compression springs to Compression spring VD-336A Stainless steel Ø 4 x 20 x 65 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-336A 1.4310 4 24 65 603.647 46.68 18.33 8.5 32.941 100.0 | 100.0 | 100.0 | 100.0 D-336A EN 10270-1 4 24 65 702.818 46.68 18.33 8.5 38.353 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-241 22 62 3.182 1.4310 134.591 19.7 42.3 40.5 | 79.0 | 32.8 | 9.7 VD-263K 24 59.1 3.597 1.4310 142.478 19.49 39.61 42.6 | 82.0 | 34.9 | 10.9 VD-275A 22.5 60 5.026 1.4310 148.707 30.42 29.59 47.1 | 82.9 | 43.3 | 15.3 VD-278B-10 20 65 7.503 1.4310 263.079 29.94 35.06 50.9 | 81.9 | 47.9 | 22.8 VD-288Z-32 28 63 8.247 1.4310 306.232 25.87 37.13 53.7 | 85.9 | 50.0 | 25.0 VD-288R 20 64.2 11.126 1.4310 309.68 36.37 27.83 58.8 | 84.0 | 58.6 | 33.8 VD-305A 23.2 61 13.493 1.4310 311.496 37.91 23.09 65.5 | 90.2 | 65.5 | 41.0 VD-306 23.2 74 13.493 1.4310 486.901 37.91 36.09 65.0 | 88.2 | 65.7 | 41.0 VD-288Z-52 21 60.5 14.297 1.4310 358.478 35.43 25.07 65.0 | 85.2 | 66.3 | 43.4 VD-308A-02 22 70 14.535 1.4310 415.495 41.41 28.59 66.3 | 88.2 | 66.5 | 44.1 VD-313L-03 25 72 16.662 1.4310 457.257 44.56 27.44 71.3 | 92.1 | 71.3 | 50.6 VD-313L-01 25 63.5 17.642 1.4310 370.809 42.48 21.02 74.1 | 94.6 | 74.3 | 53.6 VD-313L-02 25 57 21.423 1.4310 444.403 36.26 20.74 79.1 | 91.2 | 81.0 | 65.1 VD-313N-10 22.5 60 29.025 1.4310 638.076 38.02 21.98 89.7 | 92.0 | 89.0 | 88.2 VD-336A 24 65 32.941 1.4310 603.647 46.68 18.33 100.0 | 100.0 | 100.0 | 100.0 VD-339A-04 21 65 53.639 1.4310 1000.371 46.35 18.65 78.8 | 95.8 | 79.3 | 61.4 VD-339D 20 64.4 57.566 1.4310 787.961 50.71 13.69 75.7 | 94.1 | 75.6 | 57.2 VD-339U 22 70.9 70.473 1.4310 979.936 56.99 13.91 68.7 | 90.7 | 68.7 | 46.7 VD-339R-01 22.5 70 82.031 1.4310 1451.953 52.3 17.7 67.0 | 91.8 | 69.1 | 40.1 VD-365RA 28 66 102.083 1.4310 775.017 58.41 7.59 59.0 | 85.2 | 59.6 | 32.3 Number of similar metal springs: 19 Customs tariff number: 73202081; Compression spring VD-336A Country of origin: DE, German; Compression spring VD-336A Product image - Compression springs VD-336A QR-Code: Compression spring VD-336A
