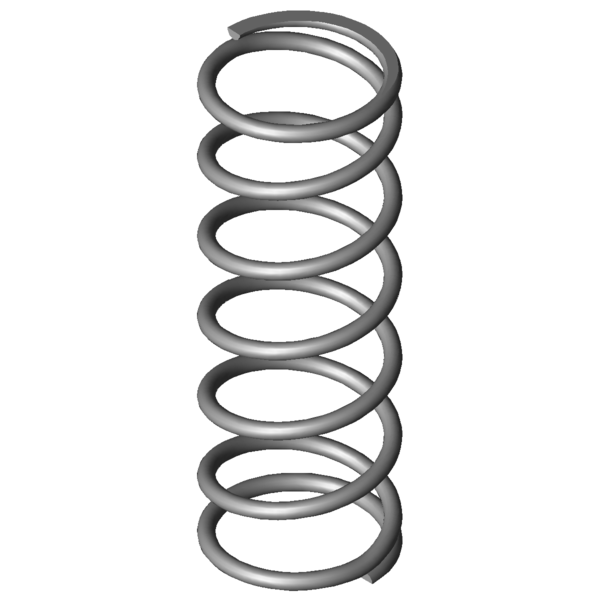

Home » Products » Compression springs » vd-241 Url teilen URL was copied to clipboard, successfully ! Overview Back to overview The Item has been added to your shopping cart. Compression spring VD-241 Stainless steel Ø 2 x 20 x 62 mm Scaled prices - Compression spring VD-241 Quantity Single price [EUR] 1 5.2700 EUR 2 3.7200 EUR 3 3.5400 EUR 7 2.5100 EUR 17 1.2200 EUR 37 0.9000 EUR 75 0.7300 EUR 125 0.5070 EUR 175 0.4444 EUR 250 0.4132 EUR 350 0.3853 EUR 450 0.3536 EUR Compression spring Buy Product image Compression spring VD-241 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-241 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 - N prestressed spring force L1 - mm Prestressed spring length s1 - mm Prestressed spring deflection F2 - N Loaded spring force L2 - mm Loaded spring length s2 - mm Loaded spring deflection d 2 mm Wire diameter Di - mm Inner coil diameter D 20 mm Mean coil diameter De 22 mm Outer coil diameter Dd 17.3 mm maximum diameter of mandrel Dh 23.1 mm minimum diameter of bush L0 62 mm unstressed spring length Lk mm buckling length Fn 134.591 N maximum force in static use Ln 19.7 mm Minimum length in static use sn 42.3 mm Maximum spring deflection in static use Fndyn 117.727 N maximum force in dynamic use Lndyn 25 mm Minimum length in dynamic use shdyn 9.49 mm Maximum stroke in dynamic use S 10.909 mm pitch of spring n 5.5 pc. number of active coils nt - pc. total number of coils R 3.182 N/mm Spring rate Weight 11.7023 g weight of one spring Fntol 7.7 N (+/-) tolerance of maximum force in static use Fndtol 7.38 N (+/-) tolerance of maximum dynamic force Detol 0.45 mm (+/-) tolerances of outer coil diameter L0tol 1.78 mm (+/-) tolerance of unstressed spring length Price group K - price group F1tol - N (+/-) tolerance of prestressed spring force F2tol - N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-241 Stainless steel Ø 2 x 20 x 62 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-241 Stainless steel Ø 2 x 20 x 62 mm Metal spring characteristic download pdf file CAD data Compression spring VD-241 Stainless steel Ø 2 x 20 x 62 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-241 Stainless steel Ø 2 x 20 x 62 mm force-path-calculation Compression spring VD-241 Inquiry formular Compression spring VD-241 Stainless steel Ø 2 x 20 x 62 mm Inquiry formular Compression spring VD-241 Similar compression springs to Compression spring VD-241 Stainless steel Ø 2 x 20 x 62 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-241 1.4310 2 22 62 134.591 19.7 42.3 5.5 3.182 100.0 | 100.0 | 100.0 | 100.0 D-241 EN 10270-1 2 22 62 156.147 19.85 42.15 5.5 3.705 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-207S 23.6 60 0.634 1.4310 24.044 22.05 37.95 54.6 | 90.0 | 53.8 | 19.9 VD-206A 24 60.9 0.832 1.4310 42.261 10.11 50.79 56.7 | 86.6 | 57.3 | 26.2 VD-206D-14 20.4 58 0.891 1.4310 39.74 13.4 44.6 58.5 | 85.4 | 62.2 | 28.0 VD-212D 19.8 66 1.119 1.4310 50.582 20.8 45.2 62.9 | 88.0 | 65.6 | 35.2 VD-247D-07 20 65 1.334 1.4310 22.707 47.97 17.03 55.3 | 95.4 | 28.6 | 41.9 VD-239A-02 25 62.5 2.092 1.4310 92.508 18.28 44.22 81.2 | 95.7 | 82.2 | 65.7 VD-239A-03 25 63 2.557 1.4310 116.983 17.25 45.75 88.5 | 95.5 | 89.7 | 80.4 VD-239A-14 23.5 58 2.561 1.4310 102.321 18.05 39.95 87.2 | 95.7 | 85.2 | 80.5 VD-247C 20.5 62 2.601 1.4310 96.556 24.88 37.12 86.4 | 97.7 | 79.7 | 81.8 VD-241 22 62 3.182 1.4310 134.591 19.7 42.3 100.0 | 100.0 | 100.0 | 100.0 VD-263K 24 59.1 3.597 1.4310 142.478 19.49 39.61 91.7 | 92.6 | 94.1 | 88.5 VD-275A 22.5 60 5.026 1.4310 148.707 30.42 29.59 78.4 | 91.5 | 80.2 | 63.3 VD-263VC 20 60.9 5.195 1.4310 171.736 27.84 33.06 77.2 | 92.0 | 78.3 | 61.3 VD-278B-10 20 65 7.503 1.4310 263.079 29.94 35.06 66.1 | 88.8 | 67.0 | 42.4 VD-275 22.5 54 7.768 1.4310 252.891 21.45 32.56 64.8 | 88.3 | 65.1 | 41.0 VD-288R 20 64.2 11.126 1.4310 309.68 36.37 27.83 56.5 | 86.3 | 54.6 | 28.6 VD-305A 23.2 61 13.493 1.4310 311.496 37.91 23.09 52.6 | 85.2 | 48.9 | 23.6 VD-288Z-52 21 60.5 14.297 1.4310 358.478 35.43 25.07 52.4 | 86.6 | 48.4 | 22.3 VD-308A-02 22 70 14.535 1.4310 415.495 41.41 28.59 51.9 | 83.7 | 50.0 | 21.9 VD-288X-07 19.4 64 16.699 1.4310 468.411 35.95 28.05 50.4 | 84.7 | 47.5 | 19.1 VD-313L-01 25 63.5 17.642 1.4310 370.809 42.48 21.02 47.1 | 80.4 | 43.0 | 18.0 VD-308A-01 22 56 18.411 1.4310 404.254 34.04 21.96 48.1 | 84.3 | 42.6 | 17.3 VD-313A-07 19.5 64 25.033 1.4310 521.8 43.16 20.84 44.1 | 82.0 | 37.5 | 12.7 VD-313N-10 22.5 60 29.025 1.4310 638.076 38.02 21.98 43.6 | 83.4 | 36.5 | 11.0 VD-336A 24 65 32.941 1.4310 603.647 46.68 18.33 40.5 | 79.0 | 32.8 | 9.7 Number of similar metal springs: 24 Customs tariff number: 73202081; Compression spring VD-241 Country of origin: DE, German; Compression spring VD-241 Product image - Compression springs VD-241 QR-Code: Compression spring VD-241
