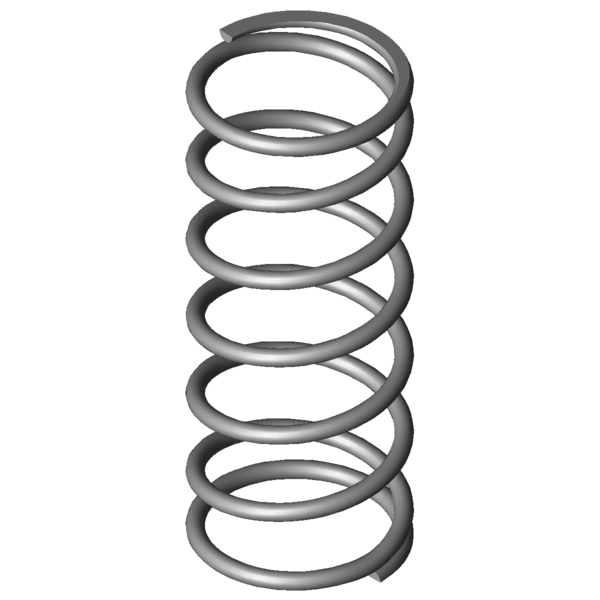

Home » Products » Compression springs » vd-239a-14 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-239A-14 Stainless steel Ø 2 x 21.5 x 58 mm Scaled prices - Compression spring VD-239A-14 Quantity Single price [EUR] 1 5.5300 EUR 2 3.9000 EUR 3 3.7100 EUR 7 2.9000 EUR 17 1.4300 EUR 37 1.1000 EUR 75 0.9400 EUR 125 0.6511 EUR 175 0.6135 EUR 250 0.5760 EUR 350 0.5306 EUR 450 0.4927 EUR Compression spring Buy Product image Compression spring VD-239A-14 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-239A-14 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2 mm Wire diameter Di mm Inner coil diameter D 21.5 mm Mean coil diameter De 23.5 mm Outer coil diameter Dd 18.7 mm maximum diameter of mandrel Dh 24.8 mm minimum diameter of bush L0 58 mm unstressed spring length Lk mm buckling length Fn 102.321 N maximum force in static use Ln 18.05 mm Minimum length in static use sn 39.95 mm Maximum spring deflection in static use Fndyn 98.352 N maximum force in dynamic use Lndyn 19.6 mm Minimum length in dynamic use shdyn 15 mm Maximum stroke in dynamic use S 10.182 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 2.561 N/mm Spring rate Weight 12.58 g weight of one spring Fntol 6.9 N (+/-) tolerance of maximum force in static use Fndtol 6.86 N (+/-) tolerance of maximum dynamic force Detol 0.45 mm (+/-) tolerances of outer coil diameter L0tol 2 mm (+/-) tolerance of unstressed spring length Price group M - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-239A-14 Stainless steel Ø 2 x 21.5 x 58 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-239A-14 Stainless steel Ø 2 x 21.5 x 58 mm Metal spring characteristic download pdf file CAD data Compression spring VD-239A-14 Stainless steel Ø 2 x 21.5 x 58 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-239A-14 Stainless steel Ø 2 x 21.5 x 58 mm force-path-calculation Compression spring VD-239A-14 Inquiry formular Compression spring VD-239A-14 Stainless steel Ø 2 x 21.5 x 58 mm Inquiry formular Compression spring VD-239A-14 Similar compression springs to Compression spring VD-239A-14 Stainless steel Ø 2 x 21.5 x 58 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-239A-14 1.4310 2 23.5 58 102.321 18.05 39.95 5.5 2.561 100.0 | 100.0 | 100.0 | 100.0 D-239A-14 EN 10270-1 2 23.5 58 119.251 18.01 39.99 5.5 2.982 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-145DC 24 68.8 0.085 1.4310 4.29 18.09 50.71 40.7 | 77.4 | 41.5 | 3.3 VD-207S 23.6 60 0.634 1.4310 24.044 22.05 37.95 58.7 | 92.1 | 59.2 | 24.7 VD-206A 24 60.9 0.832 1.4310 42.261 10.11 50.79 60.1 | 87.7 | 60.0 | 32.5 VD-206D-14 20.4 58 0.891 1.4310 39.74 13.4 44.6 61.5 | 85.6 | 64.2 | 34.8 VD-207JR 22 50.7 0.935 1.4310 33.948 14.39 36.31 61.3 | 85.3 | 62.0 | 36.5 VD-207J-71 20 55 1.272 1.4310 52.153 14 41 69.6 | 85.0 | 74.2 | 49.7 VD-239A-02 25 62.5 2.092 1.4310 92.508 18.28 44.22 89.2 | 95.6 | 90.4 | 81.7 VD-232L-01 20 56 2.344 1.4310 88.455 18.26 37.74 90.8 | 90.6 | 90.5 | 91.5 VD-239A-03 25 63 2.557 1.4310 116.983 17.25 45.75 94.2 | 95.4 | 87.4 | 99.8 VD-235 27 58 2.56 1.4310 107.776 15.9 42.1 96.8 | 95.7 | 94.9 | 100.0 VD-239A-14 23.5 58 2.561 1.4310 102.321 18.05 39.95 100.0 | 100.0 | 100.0 | 100.0 VD-247C 20.5 62 2.601 1.4310 96.556 24.88 37.12 95.2 | 93.6 | 93.6 | 98.5 VD-240A 22 55.4 3.182 1.4310 119.795 17.75 37.65 88.9 | 96.4 | 89.8 | 80.5 VD-241 22 62 3.182 1.4310 134.591 19.7 42.3 87.2 | 95.7 | 85.2 | 80.5 VD-263K 24 59.1 3.597 1.4310 142.478 19.49 39.61 84.1 | 95.7 | 85.5 | 71.2 VD-275A 22.5 60 5.026 1.4310 148.707 30.42 29.59 71.1 | 90.8 | 71.4 | 51.0 VD-263VC 20 60.9 5.195 1.4310 171.736 27.84 33.06 69.9 | 89.1 | 71.2 | 49.3 VD-273A-04 24 52 6.253 1.4310 189.779 21.65 30.35 65.0 | 89.2 | 64.9 | 41.0 VD-275 22.5 54 7.768 1.4310 252.891 21.45 32.56 61.2 | 89.6 | 61.0 | 33.0 VD-288Z-42 27 55.1 9.322 1.4310 273.742 25.73 29.37 55.3 | 82.9 | 55.4 | 27.5 VD-305A 23.2 61 13.493 1.4310 311.496 37.91 23.09 49.9 | 85.4 | 45.3 | 19.0 VD-288Z-52 21 60.5 14.297 1.4310 358.478 35.43 25.07 49.2 | 84.0 | 45.6 | 17.9 VD-313L-01 25 63.5 17.642 1.4310 370.809 42.48 21.02 45.0 | 80.3 | 40.1 | 14.5 VD-308A-01 22 56 18.411 1.4310 404.254 34.04 21.96 46.1 | 84.2 | 40.1 | 13.9 VD-305 23.2 49.5 20.852 1.4310 473.531 26.79 22.71 44.6 | 82.2 | 39.2 | 12.3 VD-313L-02 25 57 21.423 1.4310 444.403 36.26 20.74 44.0 | 82.6 | 37.5 | 12.0 Number of similar metal springs: 25 Customs tariff number: 73202081; Compression spring VD-239A-14 Country of origin: DE, German; Compression spring VD-239A-14 Product image - Compression springs VD-239A-14 QR-Code: Compression spring VD-239A-14
