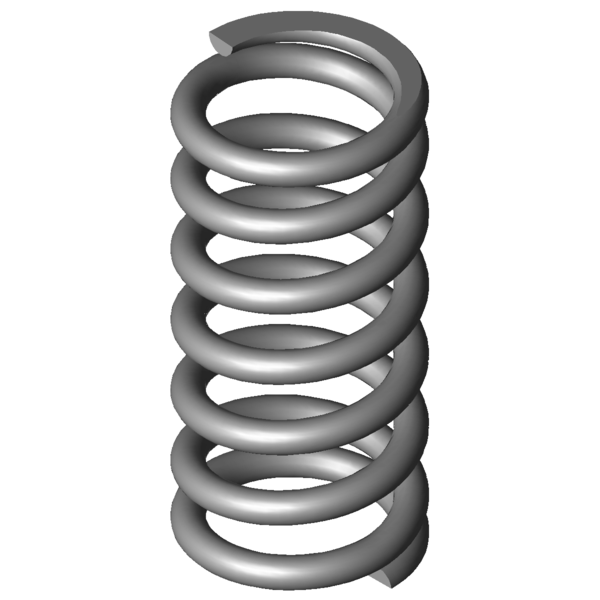

Home » Products » Compression springs » vd-305 Url teilen URL was copied to clipboard, successfully ! Overview Back to overview The Item has been added to your shopping cart. Compression spring VD-305 Stainless steel Ø 3.2 x 20 x 49.5 mm Scaled prices - Compression spring VD-305 Quantity Single price [EUR] 1 5.7800 EUR 2 4.0800 EUR 3 3.8900 EUR 7 3.0700 EUR 17 1.5900 EUR 37 1.2800 EUR 75 1.1200 EUR 125 0.8513 EUR 175 0.7951 EUR 250 0.7263 EUR 350 0.6128 EUR 450 0.5811 EUR Compression spring Buy Product image Compression spring VD-305 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-305 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 - N prestressed spring force L1 - mm Prestressed spring length s1 - mm Prestressed spring deflection F2 - N Loaded spring force L2 - mm Loaded spring length s2 - mm Loaded spring deflection d 3.2 mm Wire diameter Di - mm Inner coil diameter D 20 mm Mean coil diameter De 23.2 mm Outer coil diameter Dd 16.1 mm maximum diameter of mandrel Dh 24.2 mm minimum diameter of bush L0 49.5 mm unstressed spring length Lk mm buckling length Fn 473.531 N maximum force in static use Ln 26.79 mm Minimum length in static use sn 22.71 mm Maximum spring deflection in static use Fndyn 406.621 N maximum force in dynamic use Lndyn 30 mm Minimum length in dynamic use shdyn 4.55 mm Maximum stroke in dynamic use S 8.418 mm pitch of spring n 5.5 pc. number of active coils nt - pc. total number of coils R 20.852 N/mm Spring rate Weight 29.9579 g weight of one spring Fntol 32.82 N (+/-) tolerance of maximum force in static use Fndtol 32.31 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 1.01 mm (+/-) tolerance of unstressed spring length Price group O - price group F1tol - N (+/-) tolerance of prestressed spring force F2tol - N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-305 Stainless steel Ø 3.2 x 20 x 49.5 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-305 Stainless steel Ø 3.2 x 20 x 49.5 mm Metal spring characteristic download pdf file CAD data Compression spring VD-305 Stainless steel Ø 3.2 x 20 x 49.5 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-305 Stainless steel Ø 3.2 x 20 x 49.5 mm force-path-calculation Compression spring VD-305 Inquiry formular Compression spring VD-305 Stainless steel Ø 3.2 x 20 x 49.5 mm Inquiry formular Compression spring VD-305 Similar compression springs to Compression spring VD-305 Stainless steel Ø 3.2 x 20 x 49.5 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-305 1.4310 3.2 23.2 49.5 473.531 26.79 22.71 5.5 20.852 100.0 | 100.0 | 100.0 | 100.0 D-305 EN 10270-1 3.2 23.2 49.5 551.326 26.79 22.71 5.5 24.278 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-247D-06 20 50 2.182 1.4310 41.741 30.87 19.13 46.5 | 82.6 | 46.5 | 10.5 VD-239A-14 23.5 58 2.561 1.4310 102.321 18.05 39.95 44.6 | 82.2 | 39.2 | 12.3 VD-232L 20 51.5 2.77 1.4310 98.322 16.01 35.49 45.1 | 79.5 | 42.4 | 13.3 VD-240A 22 55.4 3.182 1.4310 119.795 17.75 37.65 46.8 | 82.2 | 42.8 | 15.3 VD-263K 24 59.1 3.597 1.4310 142.478 19.49 39.61 48.0 | 83.1 | 43.7 | 17.3 VD-245 21 45 3.711 1.4310 101.725 17.59 27.41 50.4 | 81.3 | 52.2 | 17.8 VD-239A-10 23.5 43 4.025 1.4310 121.093 12.91 30.09 50.8 | 82.7 | 50.5 | 19.3 VD-240 22 41 5 1.4310 134 14.2 26.8 53.5 | 80.1 | 56.5 | 24.0 VD-269 27.5 49 6.25 1.4310 204.375 16.3 32.7 57.8 | 87.2 | 56.3 | 30.0 VD-273A-04 24 52 6.253 1.4310 189.779 21.65 30.35 59.1 | 90.0 | 57.5 | 30.0 VD-275 22.5 54 7.768 1.4310 252.891 21.45 32.56 62.6 | 88.9 | 61.6 | 37.2 VD-274A 22.5 40 7.768 1.4310 144.137 21.45 18.56 59.5 | 85.3 | 56.1 | 37.2 VD-308A-01 22 56 18.411 1.4310 404.254 34.04 21.96 91.2 | 94.4 | 91.0 | 88.3 VD-288ZA 21.5 45 20.352 1.4310 405.192 25.09 19.91 92.2 | 92.4 | 86.6 | 97.6 VD-305 23.2 49.5 20.852 1.4310 473.531 26.79 22.71 100.0 | 100.0 | 100.0 | 100.0 VD-288X-06 19.4 51 21.195 1.4310 467.351 28.95 22.05 95.6 | 90.4 | 97.9 | 98.4 VD-313L 25 48.2 27.266 1.4310 495.429 30.03 18.17 85.8 | 93.0 | 87.8 | 76.5 VD-313K-01 25 43 29.992 1.4310 451.258 27.95 15.05 79.9 | 89.5 | 80.8 | 69.5 VD-313A-06 19.5 51 30.509 1.4310 439.503 36.59 14.41 79.7 | 92.7 | 78.1 | 68.4 VD-336 24 49 50.909 1.4310 813.273 33.03 15.98 65.7 | 91.9 | 64.3 | 41.0 VD-339A-01 21.5 50 64.301 1.4310 813.639 37.35 12.65 60.0 | 90.6 | 57.0 | 32.4 VD-339T-10 22 50 121.725 1.4310 1491.136 37.75 12.25 49.4 | 88.3 | 42.8 | 17.1 VD-339T 22 44.9 121.725 1.4310 987.624 36.79 8.11 48.2 | 85.5 | 41.8 | 17.1 Number of similar metal springs: 22 Customs tariff number: 73202081; Compression spring VD-305 Country of origin: DE, German; Compression spring VD-305 Product image - Compression springs VD-305 QR-Code: Compression spring VD-305
